Summary of Contents for UCAN LV 365

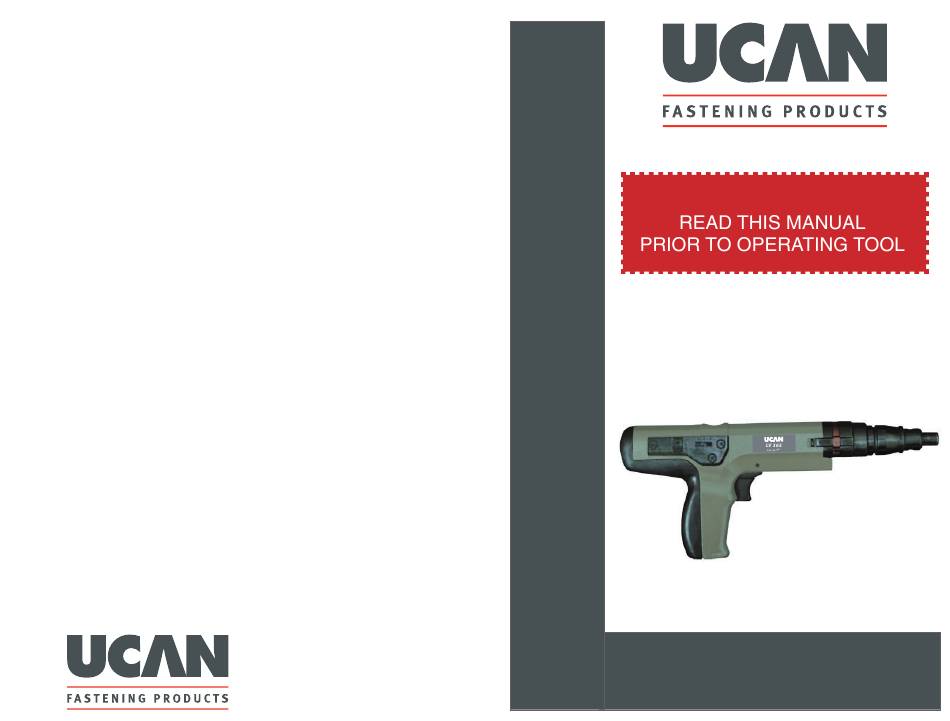

- Page 1 WARNING! OPERATOR'S INSTRUCTION MANUAL Toronto, Ontario M3J 2C6 SEMI-AUTOMATIC LOW VELOCITY Tel: 416.631.9400 Fax: 416.631.9426 FASTENING TOOL WITH POWER E-mail: sales@ucanfast.com ADJUSTMENT DIAL Web: www.ucanfast.com Rev. 1/10...
-
Page 2: Table Of Contents
When fastening directly into concrete or steel, use the proper stabilizer or guard, suited for the application. In this instruction manual you will also find illustrations of the LV 365 as well as information about cartridges, pistons, and spare parts. If you have... -
Page 3: Limitations Of Use
TOOL HANDLING & USE cont'd..LIMITATIONS OF USE cont'd..10. Under no circumstances shall a loaded tool be left unattended. Fasteners with a shank diameter of 4.83mm (0.190 in) or less shall not be driven into steel: 11. Tools, whether loaded or not, must not be pointed at any person. that is less than 4.83mm (3/16 in) in thickness;... -
Page 4: Maintenance
MAINTENANCE AND STORAGE OPERATION IMPORTANT: To make successive fastenings,always insert the fastener before advancing magazine as in illustrations 1 & 2. Overdriving due to Clean and lubricate the tool as recommended in the Instruction using too strong a cartridge, too short a fastener, or too little resistance in Manual. -
Page 5: Assembly
HOW TO CHANGE THE PISTON AND SLEEVE Repeat steps 1, 2 and 4 until the cartridge magazine has been Lift the end of the annular spring Slide out the complete exhausted (ten fastenings). To remove the magazine, slide the base and rotate toward top of tool. -
Page 6: Cleaning And Maintenance
Similarily, when the indicator is moved to the foremost position the lowest driving power is obtained. UCAN Fastening Products provides a set of disposable sample ear plugs with each tool. These are not intended as permanent ear protection. - Page 7 LV-365 PARTS KIT Description Part No. Description Part No. Rubber Pad 36501 Advance Bar 36526 Cover Plug 36502 Spring, Advance Bar 36527 Spring, Sear Holder 36503 Trigger 36528 Spring Firing 36504 Lever Seat 36529 Firing Pin Nut 36505 Hollow Pin 36530 Firing Pin Return Spring 36506...
-
Page 8: Headed Fasteners
UCAN Fastening Products' Distributor. using a Powder Actuated Tool. If your tool requires service or warranty repairs, contact a UCAN Distributor, who will determine whether the tool is field repairable or must be forwarded to a repair center. - Page 9 Remember that P.A.T. fasteners are made of special steel and heat treated especially for these applications. Under no circumstances UCAN Fastening Products LV Powder Actuated Tools are indirect-acting should fasteners other than those recommended by the tool tools which conform to the requirements for low velocity class tools.
- Page 10 Unsuitable base materials will be: are inserted into the tool either individually or in a strip magazine which contains 10 cartridges. The UCAN LV365 uses .27 caliber loads in strip Too hard for the fastener to penetrate (hardened steel, welds, cast magazines.
- Page 11 VII. APPLICATION RULES - WARNINGS VII. APPLICATION RULES - WARNINGS cont'd... NOTE: To determine the correct length of drive pin for a particular For Concrete..application, add the thickness of the material to be fastened and the required depth of penetration into the base material. Do not fasten into cracks or spalled areas as this weakens holding power.
-
Page 12: Warranty
WARRANTY VIII. GENERAL SAFETY RULES This new fastening tool is a quality product of UCAN Fastening Products. It Do not use P.A.T. tools in explosive or flammable environments. has been developed through study and research into the fastening methods and applications of the building industry and associated trades.
