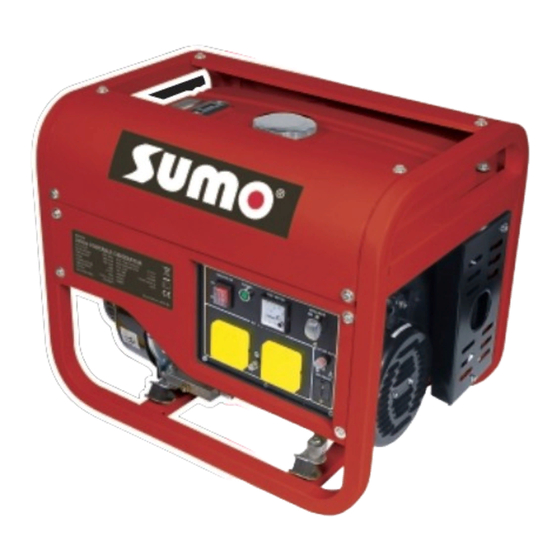

- Page 2 SMK35GEN 2400w PORTABLE GENERATOR SAFETY AND OPERATING MANUAL...
- Page 3 GUARANTEE This Sumo product carries a guarantee of 12 months. If your product develops a fault within this period, you should, in the first instance contact the retailer where the item was purchased.
-
Page 4: Safety Instructions
PLEASE NOTE: The generator supplied is NOT suitable for providing power to any electronic products such as computers, laptops or televisions etc. If in doubt please refer to the specific product manual for advice on supply connection. If using for a caravan, motor home or boat etc refer to the manufacturers manual regarding connection of a generator. - Page 5 5) Service a) Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained. 2400w PORTABLE GENERATOR SMK35GEN...
- Page 6 ADDITIONAL SAFETY INSTRUCTIONS FOR YOUR GENERATOR Electrical generators must always be grounded, (connected to earth). Petrol or diesel powered generators must never be used in an unventilated closed spaces.The exhaust fumes are highly dangerous and can cause “Carbon Monoxide Poisoning” which will cause drowsiness and death.
- Page 7 Before transporting the generator in a vehicle, drain all fuel to prevent leakage. To prevent an electric shock and fire, never connect an electrical load with the electrical output switched on. Do not connect the generator to any other electrical source. 2400w PORTABLE GENERATOR SMK35GEN...
- Page 8 The engine speed has been factory set to provide safe operation.Tampering with the engine speed adjustment could result in overheating of attachments and could cause a fire. Never attempt to “speed- up” the engine to obtain more performance. Both the output voltage and frequency will be thrown out of standard by this practice, endangering attachments and the user.
- Page 9 AC socket Engine switch Ground (earth) terminal Oil drain plug Recoil starter 10 AC circuit breaker 11 DC Socket 12 DC circuit breaker 13 Pilot light 14 Voltmeter 15 DC charging leads 16 Spark plug spanner 2400w PORTABLE GENERATOR SMK35GEN...
-
Page 10: Technical Data
TECHNICAL DATA AC output 230Vac ~ 50Hz Rated power 2000 watts Peak power 2400 watts Phase Single Power factor cosø=1 Displacement 196cc DC output 12V, 8.3A Motor 6.5HP, 4 stroke Fuel tank capacity Fuel type Unleaded Petrol Oil type SAE 10W-30 Spark plug type F6TC NOISE DATA... - Page 11 Spike is pushed into the ground by at least 100mm so that it is firm and a litre of water poured around it to ensure good Earth continuity. 2400w PORTABLE GENERATOR SMK35GEN...
-
Page 12: Checking The Oil
2. CHECKING THE OIL Warning: the generator is supplied without oil and must be filled before first use, failure to do so will invalidate your guarantee. Before checking or refilling oil, be sure the generator is put on a stable and level surface with the engine stopped. - Page 13 AC outlet sockets.Turn the generator ON/OFF switch to the OFF position. When the generator engine has stopped and before storage, turn the fuel tap lever to the OFF position. Fig 9 2400w PORTABLE GENERATOR SMK35GEN...
-
Page 14: Overload Protection
6. OVERLOAD PROTECTION The generator is fitted with 2 overload protection devices located on the control panel. In the event that the load exceeds that stated on the rating plate, the overload protection will operate and disconnect the load. If the overload protection device is tripped Check the electrical load and if necessary reduce the load.The d.c. - Page 15 Plug the 12v charger lead into the socket on the generator (Fig 13). The specific gravity for the fully charged battery shall be within 1.26 to 1.28. It is advisable to check the specific gravity every hour. Fig 12 Fig 13 2400w PORTABLE GENERATOR SMK35GEN...
-
Page 16: Maintenance
MAINTENANCE ENGINE OIL REPLACEMENT Place the machine on a level surface and warm up the engine for several minutes.Then stop the engine. Remove the oil filler cap (See Fig 14). Place an oil pan under the engine. Remove the oil drain plug (See Fig 15) so that the oil can be completely drained. - Page 17 (when resistance is felt), then stop pulling. Store the generator in a dry well ventilated place under a cover to prevent any dust or debris from accumulating on the generator 2400w PORTABLE GENERATOR SMK35GEN...
-
Page 18: Maintenance Schedule
MAINTENANCE SCHEDULE Item Remark Pre-operation Initial 1 month Every 3 month Every 6 month Every 12 month check (daily) or 20hours or 50 hours or 100 hours or 300 hours Spark plug Check condition Adjust gap and clean Replace if required Engine Oil Check oil level Replace... -
Page 19: Engine Troubleshooting
Improper adjustment fuel of carburetor Good spark Engine runs erratically Insufficient Pull rope sharply pulling speed for starting rope Wrong grade of Check grade of fuel fuel used Overloading Check the working conditions Overheating 2400w PORTABLE GENERATOR SMK35GEN... -
Page 20: Generator Trouble Shooting
GENERATOR TROUBLE SHOOTING CONDITION PROBABLE CAUSE CORRECTIVE ACTION Tripped circuit breaker Reset Check and repair Poor connection or faulty lead No AC output Broken recepticle Faulty circuit breaker Check and repair No AC output Generator problem Output power too Engine RPM set too No load speed set high or low high or low... - Page 21 2400w PORTABLE GENERATOR SMK35GEN...
- Page 23 2400w PORTABLE GENERATOR SMK35GEN...
- Page 24 We, Importer Powersmith Ltd. BA22 8RT Declare that the product 2400W Generator SMK35GEN Complies with the essential health and safety requirements of the following directives: 89/336/EEC - EMC Directive. 2006/95/EC - Low Voltage Directive. 98/37/EEC - Machinery Directive. 2000/14/EC - Noise Directive.
