  • Page 1 EHI645BB, EHI845BB Induction hob Installation & User manual...
  • Page 2: Table Of Contents

    CONGRATULATIONS CONTENTS Thank you for purchasing an Electrolux cooktop. Safety information ____________________________ 3 You’ve chosen a product that brings with it decades of professional experience and innovation. Ingenious Product description ___________________________ 5 and stylish, it has been designed with you in mind.
  • Page 3: Safety Information

    SAFETY INFORMATION Please read the user manual carefully and store in a handy Children and vulnerable people safety place for later reference. Pass the user manual on to WARNING! possible new owners of the appliance. Risk of suffocation, injury or permanent disability. •...
  • Page 4 SAFETY INFORMATION WARNING! WARNING! Risk of damage to the appliance. Risk of injury, burns or electric shock. • The glass ceramic can be damaged by objects falling • Use this appliance in a household environment. onto it. • Do not change the specification of this appliance.
  • Page 5: Product Description

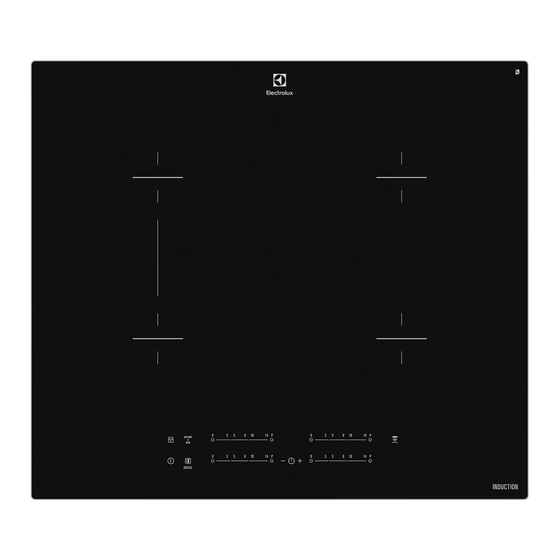

    PRODUCT DESCRIPTION EHI845BB EHI645BB Induction cooking zone Induction cooking zone Induction cooking zone Control panel Induction cooking zone Control panel layout Sensor field Function To activate and deactivate the appliance To lock / unlock the control panel Timer indicators of cooking zones...
  • Page 6 PRODUCT DESCRIPTION Heat setting displays Display Description The cooking zone is deactivated The cooking zone operates function operates The automatic heat up function operates Power function operates There is a malfunction + digit OptiHeat Control (3 step Residual heat indicator) : continue cook / stay warm / residual heat...
  • Page 7: Operating Instructions

    OPERATING INSTRUCTIONS On and off Bridge function Touch for 1 second to activate or deactivate the IMPORTANT! appliance. Use the Bridge Function with the Infinite Plancha accessory Automatic switch off The function deactivates the appliance automatically if: The Bridge Function connects the two left side cooking zones under the accessory and they operate as one.
  • Page 8 OPERATING INSTRUCTIONS Automatic heat up Count down timer Use the Count Down Timer to set how long the cooking zone operates for one cooking session. Set the Count Down Timer after the selection of the cooking zone. You can set the heat setting before or after you set the timer.
  • Page 9 OPERATING INSTRUCTIONS Stop+go Operating the function automatically function sets all cooking zones that operate to the The default automatic mode from the factory is H5. You can lowest heat setting ( ). When operates, you cannot change the automatic mode by following the instructions change the heat setting.
  • Page 10: Helpful Hints And Tips

    HELPFUL HINTS AND TIPS Operating the fan speed manually Cookware for induction cooking zones You can also operate the function manually. To do WARNING! that touch when the hob is active. This deactivates Use the induction cooking zones with correct automatic operation of the function and allows you cookware.
  • Page 11 Use the residual heat to keep the food warm or To find the full range of rangehoods which work with to melt it. this function refer to our consumer website. The Electrolux rangehoods that work with this function IMPORTANT must have the symbol THE COOKING ZONE EFFICIENCY The cooking zone efficiency is related to the diameter of the cookware.
  • Page 12 Examples of cooking applications The relation between the heat setting and the cooking zone consumption of power is not linear. When you increase the heat setting it is not proportional to the increase of the cooking zone consumption of power.
  • Page 13: Care And Cleaning

    CARE AND CLEANING Clean the appliance after each use. Remove after the appliance is sufficiently cool: Always use cookware with clean bottom. limescale rings, water rings, fat, stains, shiny metallic discolourations. Use a special cleaning agent for glass ceramic or stainless steel. IMPORTANT 2.
  • Page 14 TROUBLESHOOTING The sensor fields The cookware is too large or you put it Put large cookware on the rear cooking zones become hot. too near to the controls. if necessary. There is no signal The signals are deactivated. Activate the signals when you touch the (refer to “OffSound control”).
  • Page 15: Installation

    Model Serial number EHI845BB min. 500mm R 5mm 600mm min. 50mm min. EHI645BB min. 25mm min. min. R 5mm 600mm 20mm 560+1mm IMPORTANT If you use a protection box (an additional accessory ), the front airflow space of 5mm and protective floor directly below the appliance are not necessary.
  • Page 16: Technical Information

    TECHNICAL INFORMATION Model. Typ 58 GBD C3 AU Induction 7.4 kW Ser.Nr. ELECTROLUX Cooking Nominal Power Power Function Power function Minimum zone (Max heat setting) (W) activated (W) maximum duration (min) cookware diameter (mm) Right rear 2300 W 3200 W...
  • Page 17 NOTES...
  • Page 18 NOTES...
  • Page 19: Warranty

    Australia or New Zealand. excluded under the ACL. You are entitled to a replacement or refund 3. During the Warranty Period Electrolux or its ASC will, at no extra charge for a major failure and for compensation for any other reasonably if your Appliance is readily accessible for service, without special foreseeable loss or damage.
  • Page 20 0800 436 245 fax: 0800 225 088 email: web: To add a touch of professional inspiration to your home, visit or or P/No. ANC A05797901 © 2016 Electrolux Home Products Pty Ltd. EMAN_IND_Mar16...
