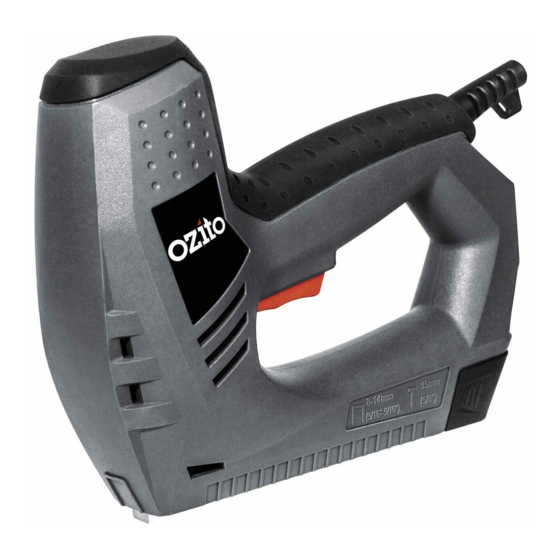

Ozito SNG-2050 Instruction Manual

Ozito SNG-2050 Instruction Manual

Electric staple nail gun 8mm - 14mm

Advertisement

ELECTRIC
STAPLE
NAIL GUN
8MM - 14MM
INSTRUCTION MANUAL
SPECIFICATIONS
Input:
230-240V ~ 50Hz
Power:
45W
Impact Rate:
30/min
Staple Size:
8-14mm, Type 50
Nail Size:
15mm, C1 Brad
Magazine Capacity:
80 Pcs
Weight:
0.73kg
ozito.com.au
WHAT'S IN THE BOX
Staple Nail Gun
Staples x 1500
Nails x 100
SNG-2050

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SNG-2050 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Ozito SNG-2050

  • Page 1 Staple Nail Gun 8MM - 14MM INSTRUCTION MANUAL Staples x 1500 SPECIFICATIONS Input: 230-240V ~ 50Hz Power: Impact Rate: 30/min Staple Size: 8-14mm, Type 50 Nail Size: 15mm, C1 Brad Nails x 100 Magazine Capacity: 80 Pcs Weight: 0.73kg ozito.com.au SNG-2050...
  • Page 2: Know Your Product

    SETUP & PREPARATION KNOW YOUR PRODUCT ELECTRIC STAPLE NAIL GUN 1. LOADING STAPLES 1 Safety Striker Pin 5 Sure Grip Handle 2 Nose Piece 6 Magazine Latch This staple nailer only accepts T50 staples. Other types of staples, 3 Magazine Window 7 On/Off Switch including paper staples, will jam the unit.
  • Page 3 2. LOADING NAILS 3. CONTROLS This staple nailer only accepts 18 Gauge C1 Brad nails up to 15mm in CAUTION! ThE POwER SUPPLy fOR ThIS PROdUCT length. Other types of nails will jam the unit. ShOULd bE PROTECTEd by A RESIdUAL CURRENT dEvICE (RATEd AT 30MA OR LESS).
  • Page 4: Operation

    3 To fire the staple nail gun, 3 With the magazine still open, squeeze the trigger. tap the safety striker pin against a surface to dislodge any loose staples. SNG-2050...
  • Page 5: Maintenance

    (8mm) merse any part of the staple nail gun into liquid. Webbing, Light Fabrics. Note: Ozito Industries will not be responsible for any damage or Insulation, Carpeting, Wire Mesh, Plastic 3/8” injuries caused by repair of the staple nail gun by an unauthorised...
  • Page 6: Spare Parts

    Model No. SNG-2050 how To Order Available spare parts can be ordered through the Special Orders Desk at any Bunnings Warehouse. If you have any further questions, please contact Ozito Customer Service on: Australia: 1800 069 486 New Zealand: 0508 069 486...
  • Page 7: Electrical Safety

    Replace the extension lead if damaged or Note: The supply of 230V and 240V on Ozito tools are interchangeable for Australia and New Zealand. defective.
  • Page 8: Warranty

    • Failure to perform maintenance as set out within the instruction manual. • If the tool is disassembled or tampered with in any way. OZITO Australia/New Zealand (Head Office) 1-23 Letcon Drive, Bangholme, Victoria, Australia 3175. 1215...
