STAPLE
NAIL GUN
8MM-14MM
INSTRUCTION MANUAL
SPECIFICATIONS
Input:
19W
Voltage:
230-240V ~ 50Hz
Impact Rate:
20/min
Magazine Capacity:
100Pcs
Staple Type:
T50 18 Gauge
Staple Length:
8-14mm
Nail Type:
Brad 18 Gauge
Nail Length:
14-16mm
Weight:
0.95kg
ozito.com.au
WHAT'S IN THE BOX

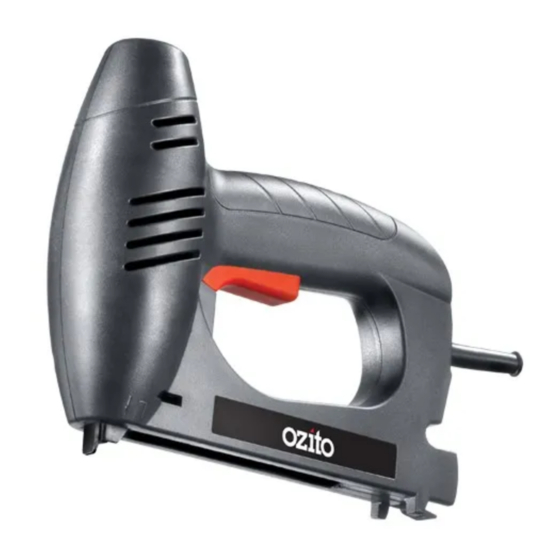

Staple Nail Gun
Staples
Nails
SNG-2000
Advertisement
Table of Contents
Related Manuals for Ozito SNG-2000
Summary of Contents for Ozito SNG-2000
- Page 1 Staple Nail Gun 8MM-14MM INSTRUCTION MANUAL Staples SPECIFICATIONS Input: Voltage: 230-240V ~ 50Hz Impact Rate: 20/min Magazine Capacity: 100Pcs Staple Type: T50 18 Gauge Staple Length: 8-14mm Nail Type: Brad 18 Gauge Nails Nail Length: 14-16mm Weight: 0.95kg ozito.com.au SNG-2000...
-
Page 2: Know Your Product
KNOW YOUR PRODUCT SETUP & PREPARATION STAPLE NAIL GUN 1. LOADING STAPLES 1 Safety Striker Pin 5 Handle 2 Nosepiece 6 Power Switch NOTE: THIS STAPLER ONLY ACCEPTS T50 3 Magazine Window 7 Magazine Latch 18 GAUGE STAPLES. OTHER TYPES OF STAPLES, INCLUDING PAPER STAPLES, WILL JAM THE UNIT. -
Page 3: Operation
OPERATION 2. LOADING NAILS 3. CONTROLS 1. Hold the tool upside down. The tool is recommended for use with a residual current device with a rated residual current of 30mA or less. 1. To supply the tool with power, push the power switch to the “I”... -
Page 4: Troubleshooting
OCCURS THE UNIT WILL BE INOPERABLE. staple/nail. 4. With the magazine still open, tap the safety striker pin against a surface to disloge any loose NOTE: The on/off trigger cannot be squeezed unless the safety staples. striker pin is fully depressed. SNG-2000... -
Page 5: Maintenance
5/16” Wall Decorations, Crafts, Covering Cornices, (8mm) Note: Ozito Industries will not be responsible for any damage or injuries Webbing, Light Fabrics. caused by the repair of the staple nail gun by an unauthorised person or by Insulation, Carpeting, Wire Mesh, Plastic mishandling of the staple nail gun. -
Page 6: Electrical Safety
Replace the extension lead if damaged or Note: The supply of 230V and 240V on Ozito tools are interchangeable for Australia and New Zealand. defective. -
Page 7: Warranty
• Failure to perform maintenance as set out within the instruction manual. • If the tool is disassembled or tampered with in any way. • Professional, industrial or high frequency use. OZITO Australia/New Zealand (Head Office) 1-23 Letcon Drive, Bangholme, Victoria, Australia 3175. 0714...
