Summary of Contents for Ariston AWD 129

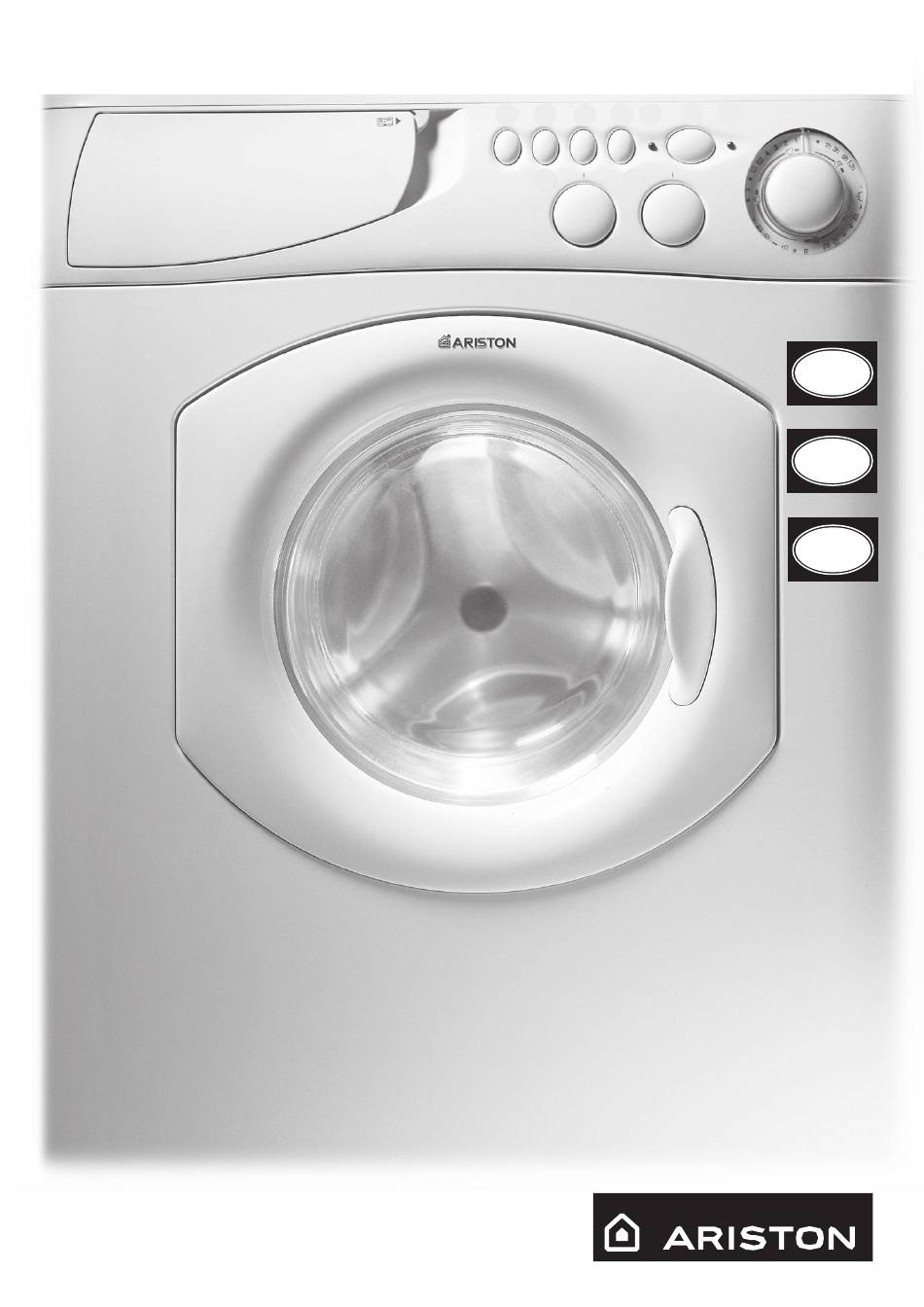

- Page 1 AWD 129 Instructions for The secrets installation and use Instrucciones para of fabrics la instalación y el uso Mode How to get better results How to get better results d’installation et d’emploi Washer-dryer safe and easy to use Lavasecadora segura Lavante - y fácil de usar...
- Page 2 Quick guide Here are the 10 topics explained in this manual. Read, learn and have fun. You will discover many secret ways to get a better wash more easily, and making your washer-dryer last longer. Introduction (pages 3-4-5) The top ten reasons for buying your washer-dryer. Also covered: 1.
-
Page 3: Important Safety Instructions
Introduction Congratulations on your new Washer-Dryer. In addition to its award winning design, this is a highly sophisticated engineered product that will give you many years of satisfaction. Please spend a few moments to read the Owners Manual. This will show you ways to best utilize your valuable purchase . -
Page 4: Helpful Hints
Safety The lightning flash with arrowhead symbol, CAUTION within an equilateral triangle, is intended to alert RISK OF ELECTRIC SHOCK the user to the presence of uninsulated “dan- gerous voltage” within the product’s enclosure DO NOT OPEN that may be of sufficient magnitude to consti- tute a risk of electric shock to persons. -
Page 5: Dryer Efficiency
Dryer Efficiency 3.OVERLOADING: The drum has a capacity of Your washer dryer operates on 110 volts and has a 1,300 12 lbs. While this is the largest drum available on any watt dryer. It will take a longer time to dry clothes than a combination washer-dryer, it is smaller than a standard U.S. - Page 6 Installation When the new washer-dryer arrives Whether new or just transported to a new house, installation is extremely important for the correct functioning of your washer-dryer. After removing the appliance from its packaging, check that it 5. The washer must be is intact.
- Page 7 PLUMBING (Water Inlet) Connection to the water mains Included in the accessories supplied with this machine are 2 inlet hoses and 4 rubber washers. The straight end of these Water pressure must range within the values indicated on the hoses should be connected to the supply fig. 1. data plate on the rear of your washer-dryer.
-
Page 8: Recessed, Closet And Alcove Installation
RECESSED, CLOSET AND ALCOVE INSTALLATION (Instructions) The machine may be installed in a recessed area, inastallation, servicing and in compliance with local closet or alcove. codes or ordinances. Other installation must use the minimum dimensions The installation spacing is in inches and is the indicated . -
Page 9: Laundry Aids
detergent until the detergent remaining in the clothes is Refer to the Stain Removal Chart for treatment of specific stains. removed. Old detergent trapped in the garments will be released If an entire item is heavily soiled or very stained, it may be both during the tumble action wash cycle. - Page 10 Making the right choice is important. And it’s easy. Here I’m in control Washer knob and Delay start Use this knob to select the wash program. Turn this knob clockwise only. To select a program, you should Knobs are hidden. turn the knob so that the word/ Just press them lightly in the number of the desired program...
- Page 11 What are you washing today? A program for all seasons Program Wash temperature Pre-wash Detergent Fabric Bleach Length of Type of fabric and degree Description of wash knob knob for wash softener the cycle of soil cycle (minutes) DELAY TIMER 12h 9h 3h 1h 12 - 9 - 3 - 1 hour delay Start is delayed by 12 - 9 - 3 - 1 hours...
-
Page 12: Useful Tips
How to dry A combined Washing and Drying Program Dry only Combined (Wash&Dry) • Load the clothes no more The drying time depends largely on the type of material (some • Look at table A to the side fibers absorb more water than others), on the dampness of the than 2/3 full (8 lbs/3.5 kg) for and follow the instructions articles when the drying is started and on the amount of the... - Page 13 Stain Removal Chart Fabric Softener Stain Blood Rub with bar soap until stain has lightened. Rinse thoroughly. Rinse or soak fresh stain in cold water. Work detergent into any Launder. Rubbing alcohol is sometimes effective in the color of remaining stain. Rinse. If stain persists, put a few drops of ammonia the garment can take it.
- Page 14 Perspiration Shoe Polish Scrape off as much as possible. Pretreat with a detergent Wash or sponge stain thoroughly with warm water and detergent paste; rinse. If stain persists, sponge with rubbing alcohol (1 part paste. If perspiration has changed the color of the fabric, restore it by treating with ammonia or vinegar.
- Page 15 It’s important for a good wash Useful tips about the detergent dispenser The first secret is the easiest: the detergent dispenser is opened by pulling it out. The washing machine automa- You must follow the quantity Never use hand wash deter- One last secret: when washing tically adds the softener to the recommendations provided by...
- Page 16 On/Off button to start. pressed? Simple: with the new Ariston technology, you need less If it is, then a program has Is the plug correctly inserted than half of it, to get good results on twice as much! been set.
- Page 17 Is the drain hose kinked? Is there space between the The drain hose must be as machine and adjacent straight as possible. Make units? If it is not a built-in sure the drain hose is not model, the washer-dryer will crimped or kinked.
- Page 18 Easy Care and Maintenance Treat your machine well and it will provide many years of trouble free service Your washer-dryer is a reliable companion in life. It is just as important for you to keep it in shape. especially to the area which to recondition the washer Your washer-dryer is designed It is important to wash...
- Page 19 Technical characteristics AWD 129 Model Dimensions width 23.4" (59.5 cm) height 33.4" (85 depth 21" (53.5 cm) Capacity Washing: 2-12 lbs Drying: 2-8 lbs Electrical voltage 120 Volt 60 Hz (minimal working 108 volt) connections maximum absorbed power 1350 W, 13 A.
- Page 20 Lifetime Limited Warranty against Stainless Steel Rust Through from the date of installation* Ariston wll replace your clothes dryer, free of charge, with the same model or a current model that is equivalent or better in functionality if the washer drum should rust though under conditions of normal home use, labor, shipping, and installation charges excluded.
