Instruction Manual

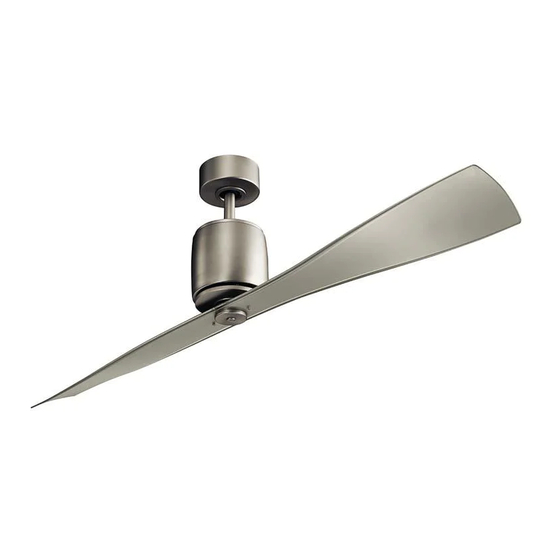

Ferron
TM
300160
A Kichler
®
Decor
™
ceiling fan
HIGH
EFFICIENCY
DC
MOTOR
3171583

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 300160 and is the answer not in the manual?

Questions and answers

Related Manuals for Kichler Lighting 300160

Summary of Contents for Kichler Lighting 300160

  • Page 1 Ferron 300160 A Kichler ® Decor ™ ceiling fan HIGH Includes our new EFFICIENCY CoolTouch 6 Speed DC Control System Looks permanent, but goes wherever you go! MOTOR U.S. Patent Pending Kichler ® Lighting 7711 East Pleasant Valley Road P.O. Box 318010...

  • Page 2: Safety Rules

    1. SAFETY RULES 1. To reduce the risk of electric shock, insure 10. To avoid personal injury or damage to the electricity has been turned off at the circuit fan and other items, be cautious when breaker or fuse box before beginning. working around or cleaning the fan.

  • Page 3: Tools And Materials Required

    Ferron 2. TOOLS AND MATERIALS REQUIRED Philips screw driver Blade screw driver 11 mm wrench Step ladder Wire cutters 3. PACKAGE CONTENTS Unpack your fan and check the contents. You should have the following items: Fan blades (2) Blade support plates (2) Canopy &...

  • Page 4: Mounting Options

    4. MOUNTING OPTIONS If there isn't an existing ETL listed mounting box, then read the following instructions. Disconnect the power by removing fuses or turning off circuit breakers. Secure the outlet box directly to the building structure. Use appropriate fasteners and Outlet box building materials.

  • Page 5: Hanging The Fan

    Ferron 5. HANGING THE FAN RMEMEBER to turn off the power before you Ceiling mounting bracket begin installation. This is necessary for your safety and also the proper programing of the control system. Canopy To properly install your ceiling fan, follow the Canopy cover steps below.
  • Page 6 Step 7. Loosen the two set screws and Supply wires remove the hitch pin and retaining clip from Coupling the coupling on top of the motor assembly. Downrod (Fig. 9) Set screws Set screws Retaining clip Hitch pin Step 8. Carefully feed the electrical lead wires from the fan up through the downrod.

  • Page 7: Electrical Connections

    Ferron 6. INSTALLATION OF SAFETY SUPPORT (required for Canadian installation ONLY) A safety support cable is provided to help prevent the ceiling fan from falling, please Ceiling mounting install it as follows. Attach bracket safety cable Step 1. Attach the provided wood screw and to ceiling joist with screw and washers to the ceiling joist next to the...

  • Page 8: Finishing The Installation

    8. FINISHING THE INSTALLATION Step 1. Tuck all the connections neatly into Outlet box the ceiling outlet box. Step 2. Slide the canopy up to the mounting Ceiling mounting brackrt bracket and place one of the key hole slots over the mounting screw on the mounting Screws bracket.
  • Page 9 Ferron 9. ATTACHING THE FAN BLADES Step 1. Attach the blade to the blade bracket using the screws, blade support plates, Allen screws, and fiber washers provided. To tighten the Allen screw by using the Allen wrench provided. (Fig. 15) Make sure the blade is straight when set on the blade bracket.

  • Page 10: Control System Set-Up

    11. CONTROL SYSTEM SET-UP Make sure the power is completely disconnected before you begin this procedure. SPECIAL NOTE: ® Your new Kichler Ceiling Fan is State of the Art and employs a High Efficiency DC (direct current) Motor with an advanced CoolTouch™ Remote Control System.
  • Page 11 Ferron 2. Insert both batteries and make sure they are seated correctly in each recess with the Blue Light Positive + sign facing up. Replace the battery cover. (Figure 17) 3. Test the transmitter by pushing and releasing ANY button briefly. A Blue Light should illuminate under the 3-4 buttons.
  • Page 12 12. OPERATING INSTRUCTIONS: Speed Buttons Figure 21 1. Buttons 1, 2, 3, 4, 5 and 6 are used to set the blade speed as follows: 1 = Low Speed 2 = Medium Low Speed 3 = Medium Speed 4 = Medium High Speed 5 = High Speed 6 = Extra High Speed Figure 22...
  • Page 13 Ferron NOTE: Please remember your control system is an RF (Radio Frequency) control system. You may occasionally experience control problems because of other radio frequency interference, i.e. fan turns off, light turns off or won't turn on, speed changes, etc. If this should happen, just change the “Control Frequency”...

  • Page 14: Installing The Transmitter

    13. INSTALLING THE COOLTOUCH ™ CONTROL SYSTEM WALL PLATE Outlet box Switch Select a location to install your CoolTouch™ Control System Transmitter. You can replace Wall plate an existing wall switch, or install the transmitter on ANY flat surface. Option 1: Install the control system using an existing wall switch outlet box.

  • Page 15: Troubleshooting

    Ferron 15. TROUBLESHOOTING Problem Solution Fan will not start. 1. Check circuit fuses or breakers. 2. Check all electrical connections to insure proper contact. CAUTION: Make sure the main power is OFF when checking any electrical connection. 3. Make sure the transmitter batteries are installed properly. Positive (+) side facing out.
