RTR400
TRIM ROUTER
OWNER'S OPERATING MANUAL
ORIGINAL INSTRUCTIONS
1N.
1
/
2
1

Advertisement

Table of Contents
loading

Related Manuals for Ryobi RTR400

Summary of Contents for Ryobi RTR400

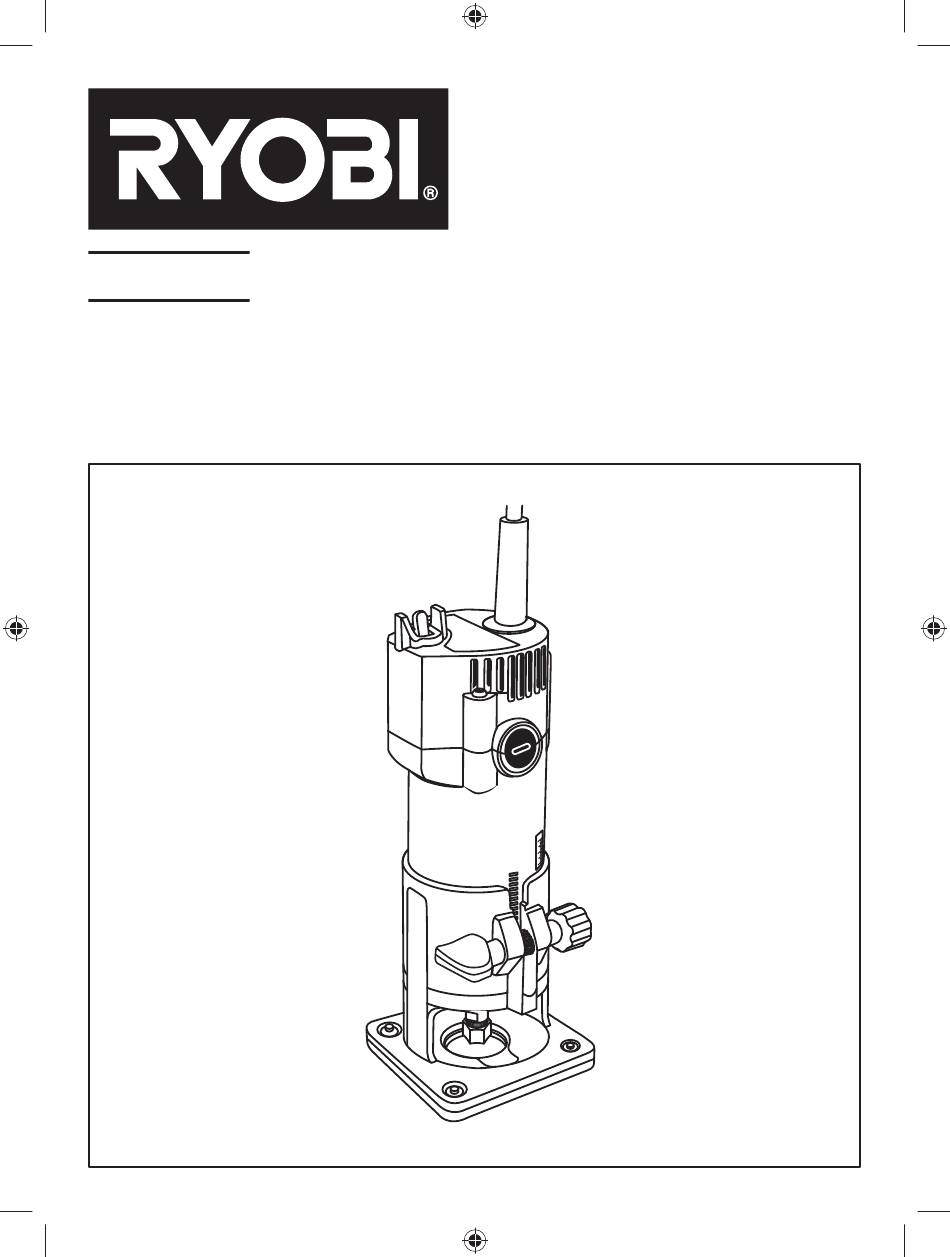

  • Page 1 RTR400 TRIM ROUTER OWNER’S OPERATING MANUAL ORIGINAL INSTRUCTIONS...
  • Page 2 DESCRIPTION 1. On / Off switch 19. Nail (not included) 2. Base 20. Bolt A (Locking screw) 3. External brush cap 21. Bolt C 4. Motor housing 22. Bolt B 5. Collet 23. Bit 6. Collet nut 24. Workpiece 7. Depth of cut scale 25.
  • Page 3 Fig. 4 Fig. 5 Fig. 6 Fig. 7 Fig. 8 Fig. 9...
  • Page 4 Fig. 10 Fig. 11 Fig. 12 Fig. 13...
  • Page 5 Important! It is essential that you read the instructions in this manual before operating this machine. Subject to technical modifi cations.

  • Page 6: General Power Tool Safety Warnings

    personal injury. GENERAL POWER TOOL SAFETY WARNINGS b. Use personal protective equipment. Always wear eye protection. Protective equipment such WARNING as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions Read all safety warnings and all instructions. Failure will reduce personal injuries.

  • Page 7: Specifications

    etc., in accordance with these instructions and ASSEMBLY in the manner intended for the particular type of power tool, taking into account the working WARNING conditions and the work to be performed. Use of the power tool for operations different from Your trim router should never be connected to a intended could result in a hazardous situation.

  • Page 8: Operation

     With your trim router still upside down on a workbench, WARNING insert shank of cutter into collet. The shank of your cutter should be close to but not touching the bottom When turing your trim router ON, be prepared for of the collet.

  • Page 9: Maintenance

    to your trim router motor and cutter). A deep cut requires MAINTENANCE a slower feed than a shallow cut and a too deep cut will cause you to slow the feed so much that the cutter is no longer cutting. WARNING Making a deep cut is never advisable.

  • Page 10: Environmental Protection

    center to avoid risk. Contact authorized service center. Class II tool, double insulation WARNING Wear ear protection Do not at anytime let brake fl uids, fuel, petroleum- based products, penetrating oils, etc. come in contact with plastic parts. They contain chemicals that can Wear eye protection damage, weaken or destroy plastic.
  • Page 12 Techtronic Industries (Australia) Pty. Ltd. Level 1, 660 Doncaster Road Doncaster, VIC 3108, Australia Techtronic Industries New Zealand Ltd. 18-26 Amelia Earhart Avenue Mangere, Auckland 2022, New Zealand 20141017...
