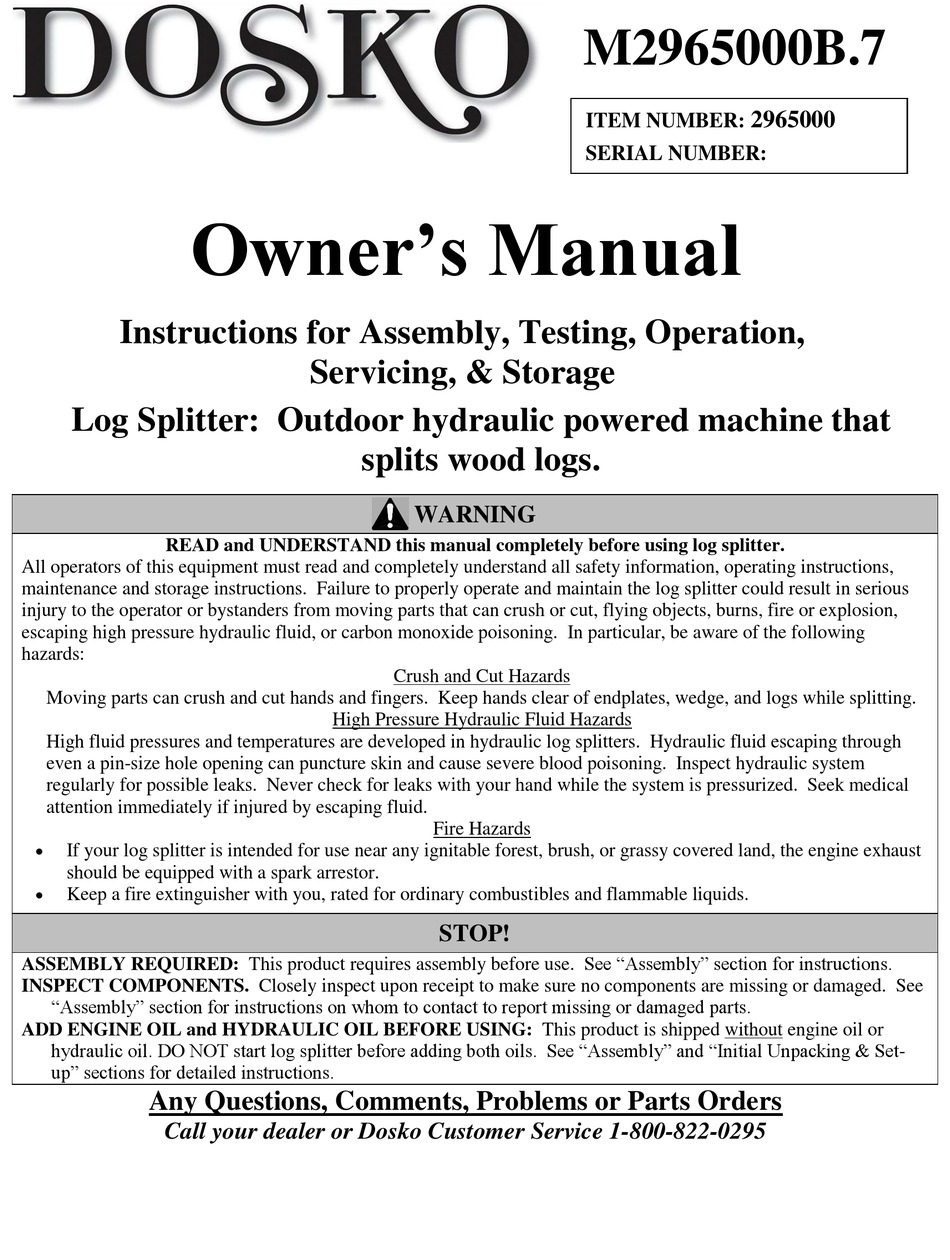

Owner's Manual
Instructions for Assembly, Testing, Operation,
Log Splitter: Outdoor hydraulic powered machine that
READ and UNDERSTAND this manual completely before using log splitter.
All operators of this equipment must read and completely understand all safety information, operating instructions,
maintenance and storage instructions. Failure to properly operate and maintain the log splitter could result in serious
injury to the operator or bystanders from moving parts that can crush or cut, flying objects, burns, fire or explosion,
escaping high pressure hydraulic fluid, or carbon monoxide poisoning. In particular, be aware of the following
hazards:
Moving parts can crush and cut hands and fingers. Keep hands clear of endplates, wedge, and logs while splitting.
High fluid pressures and temperatures are developed in hydraulic log splitters. Hydraulic fluid escaping through
even a pin-size hole opening can puncture skin and cause severe blood poisoning. Inspect hydraulic system
regularly for possible leaks. Never check for leaks with your hand while the system is pressurized. Seek medical
attention immediately if injured by escaping fluid.
If your log splitter is intended for use near any ignitable forest, brush, or grassy covered land, the engine exhaust
should be equipped with a spark arrestor.
Keep a fire extinguisher with you, rated for ordinary combustibles and flammable liquids.
ASSEMBLY REQUIRED: This product requires assembly before use. See "Assembly" section for instructions.
INSPECT COMPONENTS. Closely inspect upon receipt to make sure no components are missing or damaged. See
"Assembly" section for instructions on whom to contact to report missing or damaged parts.
ADD ENGINE OIL and HYDRAULIC OIL BEFORE USING: This product is shipped without engine oil or
hydraulic oil. DO NOT start log splitter before adding both oils. See "Assembly" and "Initial Unpacking & Set-
up" sections for detailed instructions.
Any Questions, Comments, Problems or Parts Orders
Call your dealer or Dosko Customer Service 1-800-822-0295
Servicing, & Storage
splits wood logs.
WARNING
Crush and Cut Hazards
High Pressure Hydraulic Fluid Hazards
Fire Hazards
STOP!
M2965000B.7
2965000
ITEM NUMBER:
SERIAL NUMBER:
_______________
Advertisement
Table of Contents
Related Manuals for DOSKO M2965000B.7
Summary of Contents for DOSKO M2965000B.7
- Page 1 ADD ENGINE OIL and HYDRAULIC OIL BEFORE USING: This product is shipped without engine oil or hydraulic oil. DO NOT start log splitter before adding both oils. See “Assembly” and “Initial Unpacking & Set- up” sections for detailed instructions. Any Questions, Comments, Problems or Parts Orders Call your dealer or Dosko Customer Service 1-800-822-0295...
- Page 2 Hazard Signal Word Definitions...
-
Page 3: Table Of Contents
Table of Contents About Your Log Splitter ......................4 Safety Label Locations ......................5 Machine Components Identification ..................7 Initial Set-up ..........................8 Moving & Towing to the Job Site .................... 10 Before Each Use: Step One: Inspection/Maintenance ................. 13 Step Two: Fueling ...................... -
Page 4: About Your Log Splitter
Follow all safety precautions presented throughout this manual. A summary of important safety information can be found at the end of the manual Contact Dosko Customer Service at 1-800-822-0295 for any questions about the appropriate use of this log splitter or about optional accessories. -
Page 5: Safety Label Locations
Safety Label Location Ref# Part # Description 787944 Pinch Point Decal 780187 Moving/Towing Decal 786635 Burn Hazard Warning 787948 45 MPH Decal 787753 Splitter Warning / Instructions Decal 782405 Kill Switch Decal Always make sure safety labels are in place and in good condition. If a safety label is missing or not legible, order new labels or unsafe operation could result. - Page 6 Safety Label Location...
-
Page 7: Machine Components Identification
Machine Component Identification Ref # Description Ref# Description Wedge Return Line Hydraulic Fluid Filter End Plate Hydraulic Pump 2” Ball Coupler Suction Strainer (hidden) Safety Chains Engine Jack Splitter Control Lever Manual Tube Log Table Tires Beam/Cylinder Hydraulic Tank Fender (Optional- Contact Dealer for More Information) -
Page 8: Initial Set-Up
Initial Set-up WARNING Carefully read and follow all instructions for initial assembly and set-up of this log splitter. Failure to properly assemble and set up this equipment could result in serious injury to the user or bystanders, or cause equipment damage. Step One: Assemble your log splitter. - Page 9 Initial Set-up Check the hydraulic system carefully: Step Four: Check Hydraulic 1. Visually inspect all hoses, tubing, clamps/fittings, pump, and cylinder for cracks, system fraying, kinks, or other damage. 2. Check all components for oily residue, which may indicate a leak. Do NOT operate the log splitter if there is any indication of damage or oily residue.
-
Page 10: Moving & Towing To The Job Site
Moving & Towing to Job Site WARNING The log splitter is heavy. It can crush and cause serious injury if it rolls out of control or tips over. Follow the instructions below for safely moving and towing the log splitter. Moving the log splitter 1. - Page 11 Moving & Towing to Job Site Attach to hitch Attach log splitter to vehicle hitch Attach log splitter's coupler to a class 2 or higher hitch with 2" ball (only). ( 2" ball) Adjust coupler to ball by raising locking lever and turning lock nut with fingers. Proper adjustment is obtained when coupler is as tight as possible on ball and locking lever can still be opened and closed.
- Page 12 Moving & Towing to Job Site Tow to Tow log splitter carefully to desired work site. Desired (See instructions on pg.17 on selecting an appropriate work site.) Location Important safety instructions: Added length. Be aware of the added length of the splitter. ...
-
Page 13: Step One: Inspection/Maintenance
Before Each Use – Inspection / Maintenance Step One: Inspect and maintain log splitter before each use. If the log splitter has been used previously, it must be inspected and maintained BEFORE EACH SUBSEQUENT USE. WARNING ALWAYS shut off the engine, disconnect the spark plug, and relieve system pressure before inspecting, cleaning, adjusting, or repairing the splitter. - Page 14 Before Each Use – Inspection / Maintenance Check the hydraulic system carefully: 5. Hydraulic system 1. Visually inspect all hoses, tubing, clamps/fittings, pump, and cylinder for cracks, fraying, kinks, or other damage. 2. Check all components for oily residue, which may indicate a leak. Do NOT operate the log splitter if there is any indication of damage or oily residue.
- Page 15 Before Each Use – Inspection / Maintenance WARNING: Do not over-inflate tires. Serious injury can occur if tire explodes. When seating a bead after repair, do not exceed 30 PSI. Pressures higher than 30 PSI can cause the tire and wheel to rupture and explode. 10.
-
Page 16: Before Each Use
Before Each Use – Fueling Step Two: Fueling WARNING Gasoline is highly flammable and explosive. You can be burned or seriously injured when handling fuel. Use extreme care when handling gasoline. 1. Engine off / cool The engine must be off and allowed to cool at least two minutes before adding fuel. -
Page 17: Step Three: Work Site Selection & Set-Up
Before Each Use – Work Site Selection & Set-Up Step Three: Work site selection and log splitter set-up WARNING It is important to select an appropriate work site and properly set up the log splitter in order to minimize the risk of slips and falls, equipment rolling or tipping over, carbon monoxide poisoning, and accidental fires. -
Page 18: Splitting Operation
Splitting Operation WARNING Before starting the log splitter, review the following instructions and safety information for safe operation. Failure to follow these rules may result in serious injury to the operator or bystanders from moving parts that crush, cut, or entangle; from flying objects, burns, fire, falling or tripping; or from carbon monoxide poisoning. - Page 19 Splitting Operation 1. Put on protective Wear the following protective clothing and safety gear. clothing / gear 1) Eye protection. Always wear safety glasses or goggles when operating the machine. Pieces of log may fly out and serious eye injury can occur 2) Boots.
- Page 20 Splitting Operation FIG02218 Correct Incorrect Log Orientation Log Orientation WARNING: ALWAYS keep hands and feet away from the wedge and partially split logs while loading, operating and unloading the log splitter. Important safety instructions: Hold bark side. Hold the bark side of logs when loading or positioning, never the ends.
- Page 21 Splitting Operation 5. Extend wedge Move Split Control Lever toward the end plate to move the wedge and split the log. SPLIT CONTROL Split Log Split Log Important safety instructions: Operator position. ALWAYS operate the log splitter from the manufacturer’s indicated OPERATOR POSITION.
- Page 22 Debris on a hot engine can be a fire hazard. After the engine is off, clean debris and chaff from engine cylinder head, cylinder head fins, blower housing rotating screen, and muffler areas. WARNING: Avoid contact with hot muffler. Any Questions, Comments, Problems or Parts Orders Call your dealer or Dosko Customer Service 1-800-822-0295...
-
Page 23: Storage
Storage WARNING Gasoline vapors can ignite and cause a fire. Select a well-ventilated storage area away from sources of heat, flame, or sparks. Follow the instructions below for storing your log splitter between uses: 1. Retract cylinder Retract the wedge completely to the hitch end of the log splitter to keep the rod protected from corrosion. -
Page 24: Periodic Maintenance
Periodic Maintenance In addition to the maintenance performed with each use, periodic maintenance should also be performed according to the following schedule. WARNING ALWAYS shut off the engine, disconnect the spark plug, and relieve system pressure before cleaning, adjusting, or repairing the splitter. Relieve system pressure by moving Split Control Lever back and forth several times. - Page 25 Periodic Maintenance Change return line filter after the first 50 hours of operation, and every 250 hours thereafter. 1. Contact manufacturer for replacement filter (part number listed in parts breakdown) 2. Shut down the engine on the Log Splitter. 3. Relieve hydraulic system pressure by moving the splitter control lever back and forth several times.
-
Page 26: Troubleshooting
K – Internally damaged cylinder Return cylinder for authorized repair L – Drawing air through suction line Check and tighten hose clamps on suction hose Any Questions, Comments, Problems or Parts Orders Call your dealer or Dosko Customer Service 1-800-822-0295... -
Page 27: Specifications
The manufacturer reserves the right to make improvements in design and/or changes in specifications at any time without incurring any obligation to install them on units previously sold Any Questions, Comments, Problems or Parts Orders Call your dealer or Dosko Customer Service 1-800-822-0295... -
Page 28: Parts Breakdown - Exploded View
Parts Breakdown - Exploded View - Rev B.7... - Page 29 5.5 HP Honda GX160 30748 Engine Guard Cap 787594 Hydraulic Tank 783543 Decal, Dosko-Large 786774 Hydraulic Dipstick 787765 Decal, 20 Ton Dosko 787728 Kill Switch Wire 777799 High Speed Tire 124A Dust Cap for Tires 82140 Cotter Pin 787732 Kill Switch Ground Wire 777910 3/4″...
-
Page 30: Summary Of Important Safety Information For Operation
Summary of Important Safety Information for Operation WARNING Carefully read and make sure you understand the following safety information before using the log splitter. Improper use or maintenance of the log splitter can result in serious injury to the operator or bystanders from moving parts that can crush or cut, flying objects, escaping high pressure hydraulic fluid, or carbon monoxide poisoning. - Page 31 Summary of Important Safety Information for Operation Safety During Towing Read instructions. Review towing safety instructions in your towing vehicle manual. Securely attached. Be sure the log splitter is securely attached to the towing vehicle before towing. Tires.
- Page 32 Summary of Important Safety Information for Operation resulting in wounds that could cause blood poisoning, infection, disability, gangrene, amputation, or death. Therefore, the following instructions should be heeded at all times when inspecting or servicing the hydraulic components of the log splitter: o Do not remove the hydraulic oil fill cap when the engine is running.
- Page 33 Summary of Important Safety Information for Operation Level, dry surface. To prevent accidental falls and equipment tip over, make sure the splitter is situated on a dry, level surface with good footing. Stay clear of areas with mud, ice, tall grass, weeds, or brush. ...
- Page 34 Summary of Important Safety Information for Operation Second person. Many accidents occur when there is more than one person involved in loading and operating the log splitter. Only one person should operate the controls. If a second person is assisting in loading logs, the operator must NEVER actuate the Split Control Lever until the assistant and all bystanders are at least 10 feet away.
-
Page 35: Disassembly Instructions
Disassembly Instructions Crate Contents: Log Splitter, Dismounted Valve Assembly, and Manual Bag. Tools needed: Side cutters, hammer, crowbar, and nut driver. 1. Cut zip tie securing towbar to packaging with side cutters. Crank jack down until the weight of splitter rests on the jack instead of on the 2. -
Page 36: Assembly Instructions
Assembly Instructions Manual Bag Contents:... - Page 37 Closely inspect all log splitter components and contents of manual bag (see diagrams). If you have missing components, contact Dosko Customer Service 1-800-822-0295. If you have damaged components, contact the Freight Company that delivered the unit and file a claim.
- Page 38 Assembly Instructions 3.Tighten Valve Pate to Tighten the bolts holding the valve plate to the valve plate gusset and tighten the bolt holding the valve plate gusset to the beam Gusset and Valve Plate to Beam Bolts Valve Plate to Gusset Valve Plate Gusset to Beam...
-
Page 39: Limited Warranty
Failure to do so will void warranty and reimbursement will not be permitted. Proof of purchase date must be provided. In order to register for the warranty on your new Dosko unit, the dealer or rental owner should fill out and return to Dosko the enclosed warranty registration cards within ten (10) days after your purchase. - Page 40 Great Northern Equipment Distributing Inc. 20195 S. Diamond Lake Rd, Ste 100 Rogers, MN 55374 Assembled in USA...
