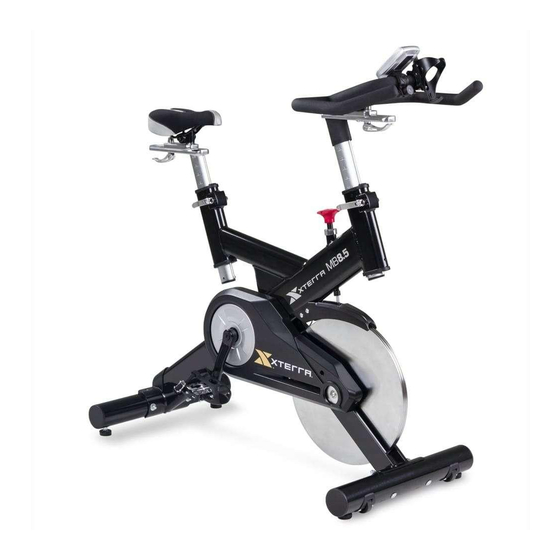

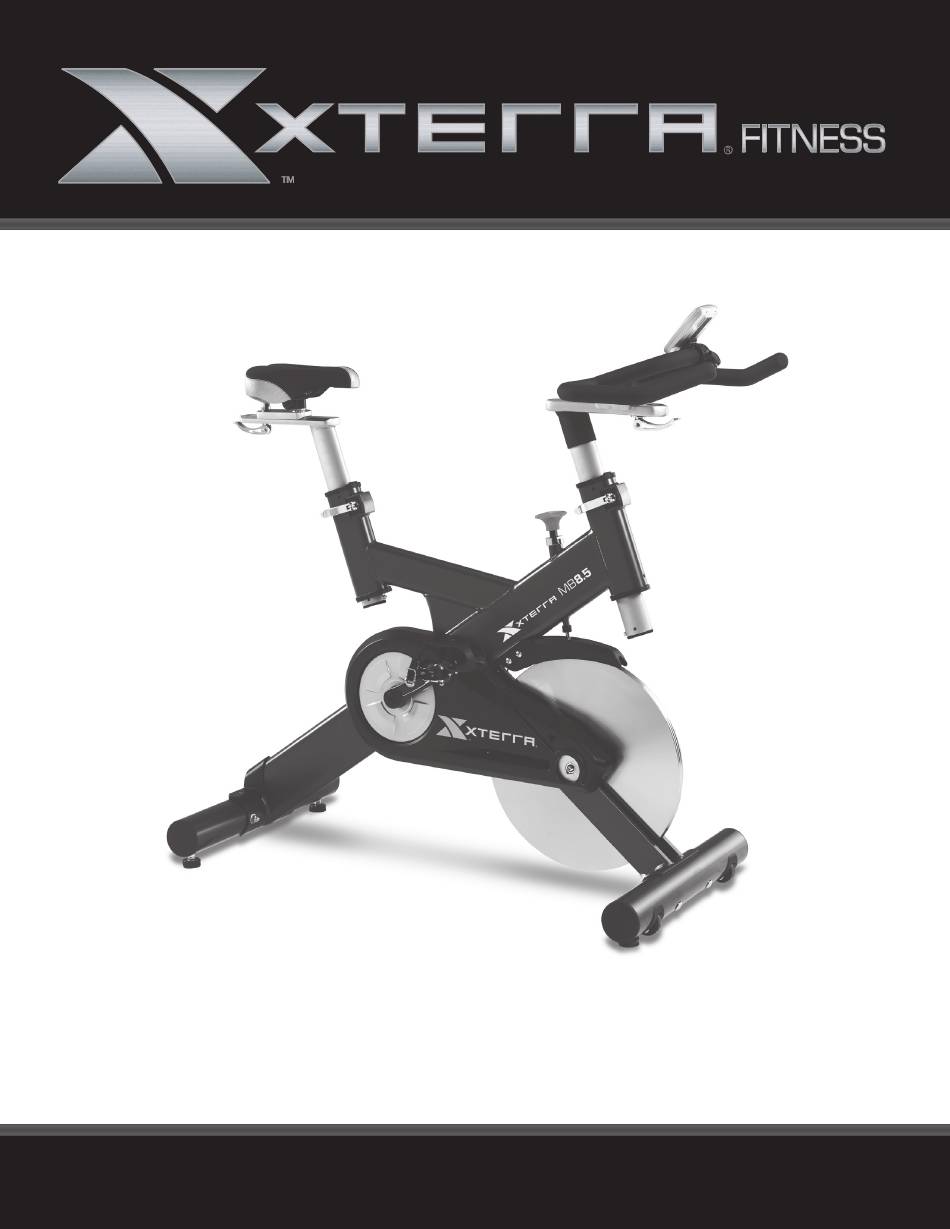

- Page 1 MB8.5 INDOOR CYCLE OWNER’S MANUAL PLEASE CAREFULLY READ THIS ENTIRE MANUAL BEFORE OPERATING YOUR NEW INDOOR CYCLE...
-
Page 2: Table Of Contents
Table Of Contents Product Registration Important Safety Instructions Important Operation Instructions MB8.5 Assembly Instructions Operation of Your New Indoor Cycle Troubleshooting Manufacturer’s Limited Warranty ATTENTION THIS INDOOR CYCLE IS INTENDED FOR RESIDENTIAL USE ONLY AND IS WARRANTED FOR THE APPLICATION. ANY OTHER APPLICATION VOIDS THIS... -
Page 3: Product Registration
We appreciate your confidence in XTERRA Fitness and we will always remember that you are the reason that we are in business. Please complete and mail your registration card today and enjoy your new indoor cycle. -
Page 4: Important Safety Instructions
Failure to follow all guidelines may compromise the effectiveness of the exercise experience, expose yourself (and possibly others) to injury, and reduce the longevity of the equipment. SAVE THESE INSTRUCTIONS - THINK SAFETY! MB8.5 Indoor Cycle... -
Page 5: Important Operation Instructions
5. Proper installation and regular maintenance are required to ensure user’s safety. Maintenance is the sole responsibility of the owner. MB8.5 Indoor Cycle... - Page 6 MB8.5 Assembly Pack Checklist Hardware Step 1 #82. 3/8” #81. 3/8” x 3-1/2” #83. 3/8” x 23mm Nut (4 pcs) Button Head Socket Bolt (4 pcs) Curved Washer (4 pcs) Hardware Step 2 #91. M5 x 10mm Screw (2 pcs) Hardware Step 3 #49.
-
Page 7: Mb8.5 Assembly Instructions
MB8.5 Assembly Instructions Pre-Assembly 1. Using a razor knife (Box Cutter) cut the outside, bottom, edge of box along the dotted Line. Lift Box over the unit and unpack. 2. Carefully remove all parts from carton and inspect for any damage or missing parts. If damaged parts are found, or parts are missing, contact your dealer immediately. - Page 8 (48). Tighten firmly using the Combination M5 Allen Wrench & Phillips Head Screw Driver (86). Water Bottle Holder 1. Place the water bottle slightly to the right of center when looking at the bike from the rear. MB8.5 Indoor Cycle...
- Page 9 Tighten each pedal as firmly as possible with the Wrench (85) provided. If you here a thumping sound when you are pedaling, this usually means one or both pedals are loose. You may need to retighten them after use. MB8.5 Indoor Cycle...
- Page 10 Console 1 – Console 2 – Mounting Clamp 3 – Clamp mounting screw 4 – Clamping thumb screw 5 – Velcro 6 – Speed transmitter MB8.5 Indoor Cycle...
- Page 11 XTERRA Fitness Indoor Cycling Console Battery Installation: 1. Remove the battery cover from the back of the computer. 2. Insert 2 AAA batteries into the battery compartment and reinstall the battery cover. 3. When Battery working voltage is too low, The “Low battery” indicator will show up on the console display indicating it is time to change the batteries.
-
Page 12: Operation Of Your New Indoor Cycle
MB8.5 Console PLEASE NOTE: 1. The XTERRA Fitness Indoor Cycling Console system is designed as a sealed unit and not meant to be opened other than for the sole purpose of installing batteries. Any opened units will void the warranty. - Page 13 Distance Distance is the measurement of the virtual distance traveled on the bike. This distance is based on the user riding a bike with tires that are the same size as the XTERRA Fitness’s flywheel. KCAL Kcal is the approximation of calories burned during your work out. The calories are an estimate only.
- Page 14 2. Press the right hand key to increase maximum heart rate limit. After setting the maximum heart rate, press the left hand key to adjust the minimum heart rate limit. MB8.5 Indoor Cycle...
- Page 15 2. Press the left hand key to set the measuring value for weight (Lb or Kg); press the right hand key to select. 3. BODYWEIGHT: Press the left hand key to set the bodyweight. Press the right hand key to increase the weight. Press and hold the right hand key for rapid advance. MB8.5 Indoor Cycle...
- Page 16 3. Loosen the quick release under the handlebar and slide the handlebar forward or backward as desired. A suitable forward/aft position should allow the rider to comfortably grasp the handlebar with a slight bend at the elbow. 4. Tighten the quick release to secure the handlebar assembly. MB8.5 Indoor Cycle...
- Page 17 2. To apply the brake, press down on the tension knob. 3. Before dismounting, apply the brake to stop flywheel, or increase resistance and let 4. flywheel come to a stop. MB8.5 Indoor Cycle...
-
Page 18: Troubleshooting
1. Do not service internal parts of pedals. If they are found to be worn internally, we recommend replacing the pedal. 2. Use of lubricants or cleaning solutions other than those so specified will result in diminished performance and a shorter life span for that part. MB8.5 Indoor Cycle... -
Page 19: Manufacturer's Limited Warranty
Effective August 1, 2012 - INDOOR CYCLE LIMITED WARRANTY XTERRA Fitness Inc. warrants all its home use indoor cycle parts for a period of time listed below, from the date of retail sale, as determined by a sales receipt or in the absence of a sales receipt, eighteen (18) months from the original factory shipping date. XTERRA Fitness’s responsibilities include providing new or remanufactured parts, at XTERRA Fitness’s option, and technical support to our independent... - Page 20 3000 Nestle Road Jonesboro, AR 72401 - Phone:870-336-4286 - Fax:870-935-7611 www.xterrafitness.com ©2012 All RIghts Reserved. MB8.5 Owner’s Manual...
