EnGenius ENS200EXT Quick Start Manual

Quick Start Guide
ENS200EXT | ENS202EXT | ENS500EXT
Outdoor Access Point/Client Bridge
3
AP/Bridge Setup
A) To configure the AP/Bridge, open a web browser. In the address
bar of the web browser, enter 192.168.1.1 and hit enter.
B) A login screen will appear. By default, the username of the AP/Bridge
is admin and the password is admin. Enter the current username and
password of the AP/Bridge and then click Login.

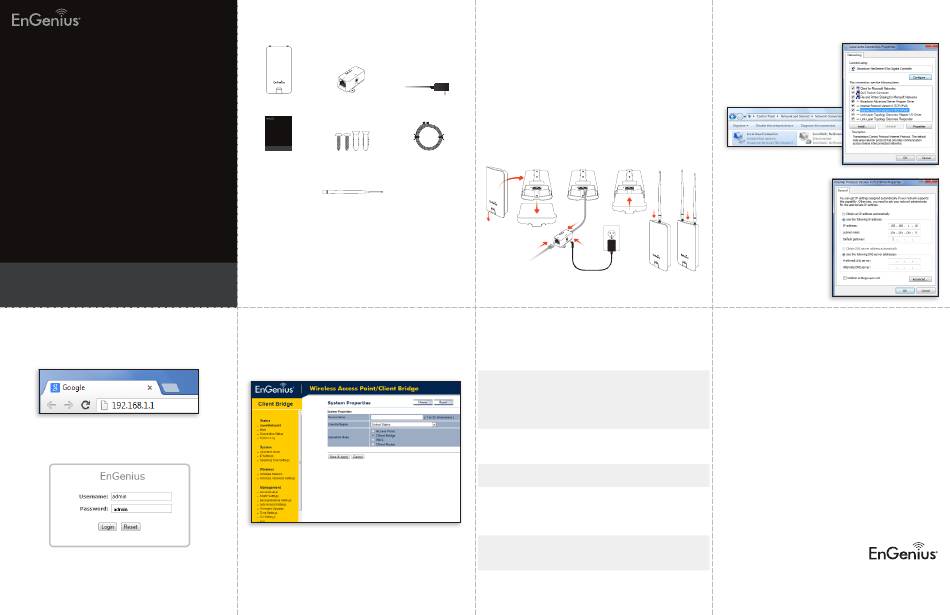

Package Contents
AP/Bridge PoE Injector
Quick Start Guide
ENS200EXT ENS202EXT | | ENS500EXT
version l.0
Outdoor Access Point/Client Bridge
Quick Start Wall Mount
Guide Screw Set
Detachable
5 dBi Antenna
| |
(1x ENS200EXT 2x ENS202EXT 2x ENS500EXT)
Minimum Requirements
version l.0
Broadband Internet Service
+
(Cable or DSL Modem)
Internet Browser
+
(Internet Explorer, Safari, Firefox, Chrome)
4
Switching Modes
A) This device can operate in the following modes: Access Point,
Client Bridge, WDS AP, WDS Bridge, WDS Station and Client Router.
B) Click on the Operation Mode link under the System Properties.
1
Connecting the AP/Bridge
A) Remove the rear bottom panel.
B) Connect one end of the Ethernet cable into the LAN(PoE) port of the
AP/Bridge and the other end to the PoE Ethernet port on the PoE injector.
C) Connect the Power Adapter to the DC-IN port of the AP/Bridge and plug
the other end into an electrical outlet.
D) Connect the second Ethernet cable into the LAN port of the PoE injector
Power Adapter
and the other end to the Ethernet port on the computer.
E) Place the panel removed from step A back into the device.
F) Screw on the provided antenna/s to the top of device.
Note: The AP/Bridge should ONLY be powered via Ethernet cable
connected to the included PoE Injector.
Pole Mounting
Strap x2
A
A
B
D
C
To Computer
Technical Support
Country of Purchase Service Center
North America
Canada
www.engeniuscanada.com
Los Angeles, USA
www.engeniustech.com
Central & South America Miami, USA
es.engeniustech.com
pg.engeniustech.com
Netherlands
Europe
www.engeniusnetworks.eu
Africa Dubai, UAE
CIS
Middle East
Russia
www.engenius-me.com
Asia Singapore
Oceania
www.engeniustech.com.sg
Others Taiwan, R.O.C.
www.engeniusnetworks.com
2
IP Address Configuration
A) Once your computer is on, ensure
that your TCP/IP is set to On or
Enabled. Open Network
Connections and then click Local
Area Connecton. Select Internet
Protocol Version 4 (TCP/IPv4).
B) If your Computer is already on a
network, ensure that you have
set it to a Static IP Address on
E
B
the interface.
F
(Example: 192.168.1.10 and
the Subnet Mask address as
255.255.255.0.
C
ENS200EXT ENS202EXT
ENS500EXT
Notes
Service Information
rma@engeniuscanada.com
Toll Free: (+1) 888 397 2788
Local: (+1) 905 940 8181
support@engeniustech.com
Toll Free: (+1) 888 735 7888
Local: (+1) 714 432 8668
miamisupport@engeniustech.com
Miami: (+1) 305 887 7378
Sao Paulo, Brazil: (+55) 11 3957 0303
D.F, Mexico: (+52) 55 1163 8894
support@engeniusnetworks.eu
(+31) 40 8200 887
support@engenius-me.com
Toll Free:
U.A.E.: 800-EnGenius
800-364-364-87
General:
(+971) 4 357 5599
www.engeniustech.com.sg/e_warranty_form
techsupport@engeniustech.com.sg
Toll Free:
Singapore: 1800 364 3648
Maximum data rates are based on IEEE 802.11 standards. Actual throughput and range may vary
depending on many factors including environmental conditions, distance between devices,
technology@senao.com
radio interference in the operating environment, and mix of devices in the network. Features
and specifications subject to change without notice. Trademarks and registered trademarks
are the property of their respective owners. For United States of America: Copyright © 2013
EnGenius Technologies, Inc. All rights reserved.
