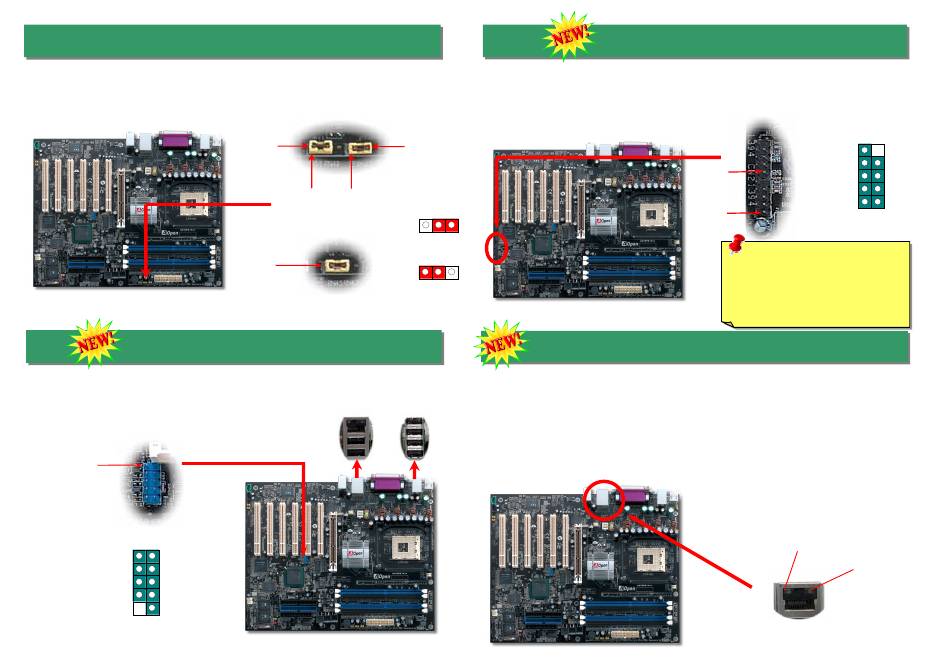

AOpen AX4SPE MAX Easy Installation Manual page 4

6. Dr. Voice II (Volume adjustable through speaker)
The Dr. Voice II can identify what kind of problems had occurred in the operating system. It
provides four kinds language versions. You can select preferred language version by
JP15&JP16 jumpers. JP2 helps to select the voice coming out from buzzer or speaker. You
may set JP2 to pin 1-2 to enable buzzer or pin 2-3 to enable speaker.
7. Support USB 2.0 Connector
This motherboard provides eight USB 2.0 ports to connect USB devices, such as
mouse, keyboard, modem, printer, etc. There are six ports on the back panel. You can
use proper cables to connect the Front USB connector to USB modules or front panel of
chassis.
Pin 1
1
+5V +5V
SBD6- SBD7-
SBD6+ SBD7+
GND GND
NC
KEY
USB 2.0 Connector
JP15 JP16
Pin1
Pin1
1
Dr. Voice Language
Select Jumper
Speaker
1
Pin 1
(default)
JP2 Speaker Output
With IEEE1394 MAC Embedded in Intel ICH5R (with AGERE FW323), the IEEE 1394
provides data transfer rate up to 400Mb/s, and USB 1.0/1.1just has 12Mbps. Hence, the
IEEE 1394 interface can connect with the devices that need high data transferring
performance, such as digital camera, scanner or others IEEE 1394 devices. Please use
the proper cable to connect with devices.
Buzzer
9. Support 10/100/1000 Mbps LAN onboard
On the strength of BCM5705, the fourth-generation triple-speed 10/100/100 base-T
Ethernet LAN Controller solution for high-performance network applications, this
motherboard provides 10/100/1000M bps Ethernet for office and home use. The Ethernet
RJ45 connector is located on top of USB connectors. The right hand side LED indicates
link mode, it lights in orange whenever linking to network. The left hand side LED
indicates the transfer mode and it lights in green when data is transferring in 100Mbps
(never lights while in 10Mbps), but lights in orange when transferring in Gigabit's mode. To
enable or disable this function, you may simply adjust it through BIOS.
8. IEEE 1394 Connector
Pin 1
Pin 1
Warning: Please be noted that
Hot-Plug in is not allowed on
IEEE 1394 header, because it will
burn the IC of the controller and
damage the motherboard.
Transferring (Left)
Green 100Mbps
Orange Gigabit
10 9
SHIED GND
+12V(Fused)
+12V(Fused)
TPB+
TPB-
GND
GND
TPA+
TPA-
2 1
Linking (Right)
Orange
