Sangean H201 User Manual

Hide thumbs Also See for H201:

Advertisement

Table of Contents

H201
中文
GB
Version 1

Advertisement

Table of Contents
loading

Related Manuals for Sangean H201

Summary of Contents for Sangean H201

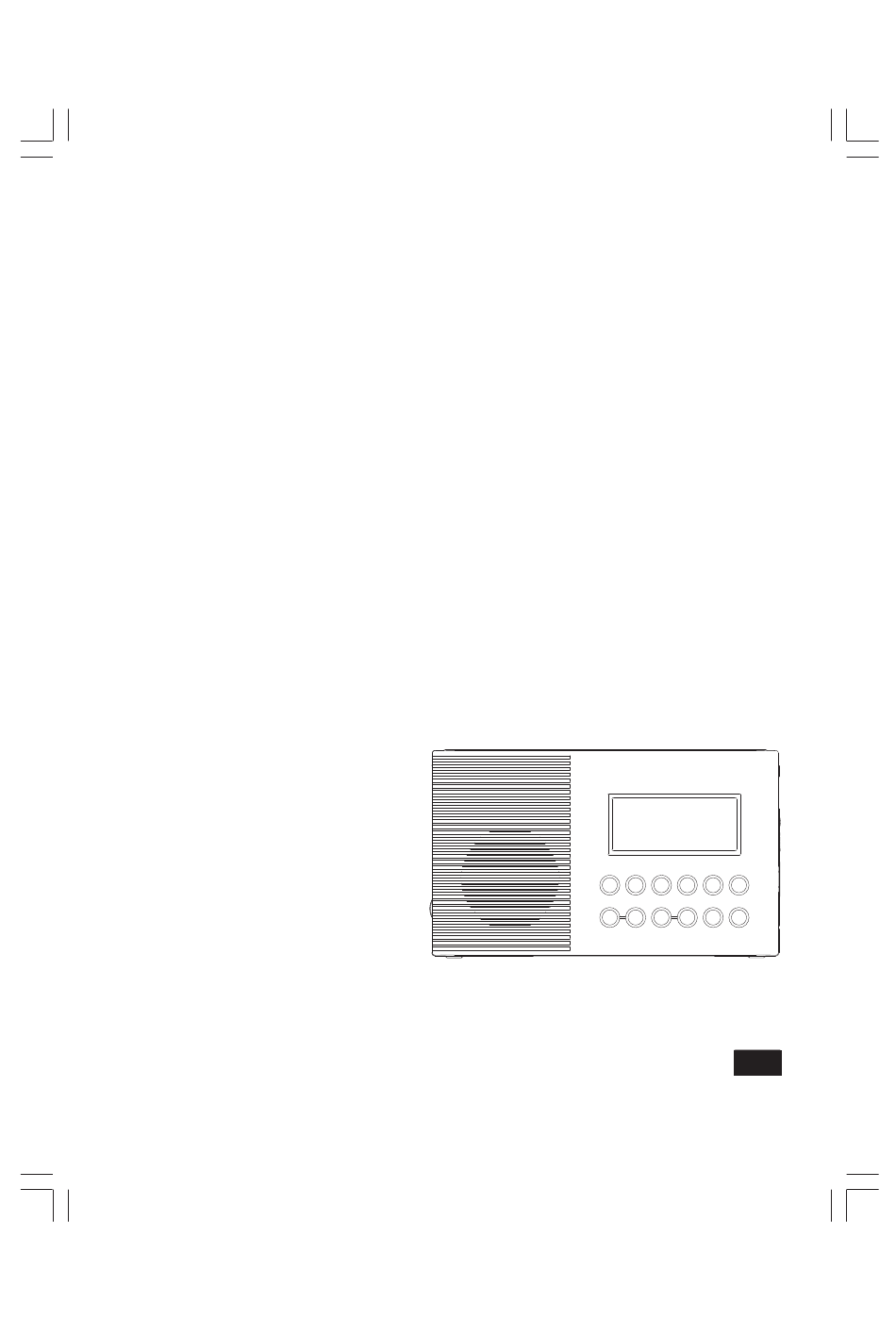

  • Page 1 H201 中文 Version 1...
  • Page 2 Features . Built-in AM/FM antenna for best reception 2. 0 presets (5 each wave band) 3. Water resistant up to JIS7 standard 4. Auto seek stations 5. Large and easy to read LCD display 6. Easy to fix bracket and hanger 7.

  • Page 4: Lcd Display

    Controls LCD Display Preset stations (preset 3 also for tuning step change) Nap timer (Short timer) Power button Band and Time Set button Tuning Control Volume Control Speaker DC IN socket Hanger Ring Emergency Buzzer Torch button Torch Multi Purpose Handle Bracket Holder Battery Cover FM wire antenna compartment...

  • Page 5: Installing Batteries

    Installing batteries . Position the radio face down on a soft surface. 2. Remove the catch as shown and lift out the battery cover. 3. Insert 2 x “D“ size/UM-1/LR20 batteries. 4. Replace the battery cover and catch. 5. Reduced power, distortion, a “stuttering“ sound are all signs that the batteries may need replacing.

  • Page 6: Setting The Clock

    Using the AC adaptor ( not supplied ) . Remove the rubber cover of DC in socket on the left hand side of your radio. 2. Insert the adaptor plug into the DC socket. 3. Plug the adaptor into mains socket outlet. Whenever the adaptor is used, the batteries are automatically disconnected.

  • Page 7: Operating Your Radio

    Operating your radio Your radio is equipped with three tuning methods – Manual Tuning, Search tuning and Memory preset tuning. Manual Tuning . Press the Power button to turn on the radio. 2. Select the required waveband by repeatedly pressing the Band button.
  • Page 8 Search tuning . Press the Power button to turn on the radio. 2. Press the Band button to get required waveband, then extend and position telescopic aerial (FM) or rotate the radio (AM). 3. Press and hold down either Tuning up or Tuning down buttons for more than 0.5 seconds to commerce Search tuning.
  • Page 9 Memory preset tuning Storing stations in preset memories There are 5 presets for each waveband. . Press the Power button to turn on the radio. 2. Tune to the required station using one of the methods previously described. 3. Press and hold down required preset until the radio beeps (more than 2 seconds).

  • Page 10: Recalling Preset Stations

    Recalling preset stations . Press the Power button to turn on the radio. 2. Select the required waveband by pressing the Band button. 3. Momentarily press the required Preset button, the preset number and station frequency will appear in the display. Software version The software display cannot be altered and is just for your refer- ence.

  • Page 11: Setting Tuning Step

    Setting Tuning step 4. After the FM range setting is completed, the display will switch to tuning step setting. Press the Tuning up/down button to choose the desired FM tuning step (50 kHz or 00 kHz) and press the Preset button 3/step button to confirm the setting. 5.

  • Page 12: Factory Reset

    Nap timer (short timer) You can set the Nap timer (short timer) either radio is on or off. Press Nap timer button , display will appear and flash last nap timer time. Press Tuning up/down button to select required nap timer time, press Nap timer button again to complete setting.

  • Page 13: Display Backlight

    Display backlight The display backlight will be switched on for approximately 15 sec- onds when any button is pressed. Emergency buzzer To activate Emergency buzzer, press and release Emergency buzzer button . Press and release the button again to switch off the buzzer.
  • Page 14 Bracket You may install the supplied bracket on the wall with the help of the double sides tape back side to hang the radio.

  • Page 15: Carrying Strap

    Carrying strap Using the supplied carrying strap, you may hang or carry the radio when not used in bathroom.

  • Page 16: Specifications

    Specifications Power requirements Mains via AC adaptor (not supplied) AC 230 volts, 50 Hz or AC 20 volts, 60 Hz ~ only/DC 3V 500 mA Batteries: 2 x UM1 (D size, LR20) Battery Life: Approx. 120 hours of listening for 4 hours a day at normal volume using alkaline batteries.
