2.5 Electrical System
The JET SUSTAINER SYSTEM is powered by a battery connected through a bulkhead
fitting in the centre section table.
Note:
The jet system has the ability to charge the battery and external charging is
required after use.
The ECU is installed in the centre section behind the wheel box.
2.5.1
Electrical Layout
Basic layout of the electrical system is illustrated in Fig 2.5.1-1
Date of issue: 26 May 2016

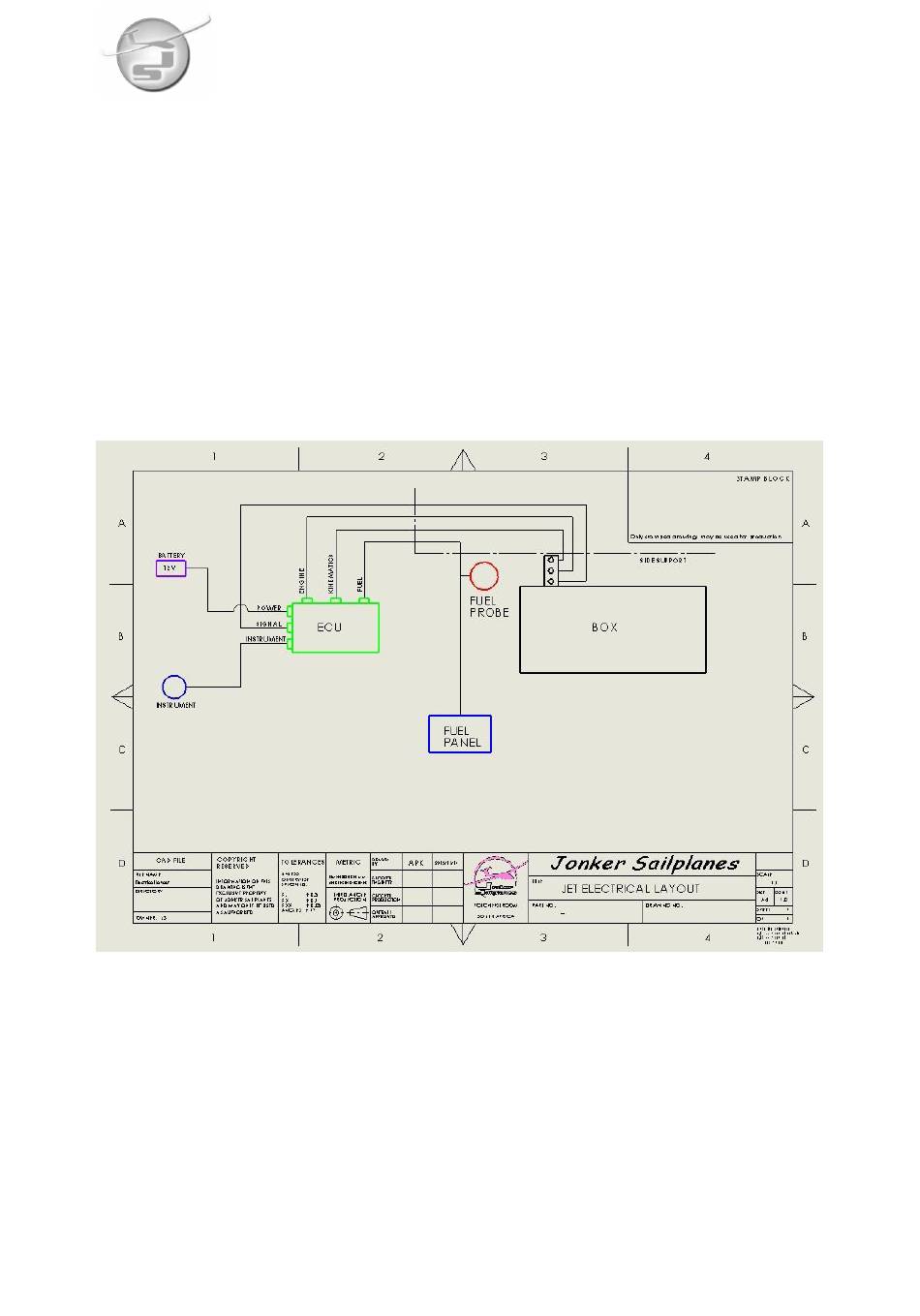

Figure 2.5.1-1: Electrical Layout
Page 2 - 19
JS1 Jet Maintenance Manual – Issue1
SACAA Accepted section
