Installation AND OPERATING INSTRUCTIONS
A RICHTECH INDUSTRIES PRODUCT
SSMEAN34
READ ALL INSTRUCTIONS CONTAINED IN THIS MANUAL BEFORE USING THIS PRODUCT.
Save these instructions for future reference. Failure to read and follow the warnings and instructions
within this instruction manual could result in property damage, serious injury or death.
15'
L I F T
10'
L I F T
5'
L I F T
Power Supply Requirements
Liquid Temperature Range
Circuit Requirements
Pump Dimensions
Minimum Basin Diameter
IMPORTANT!

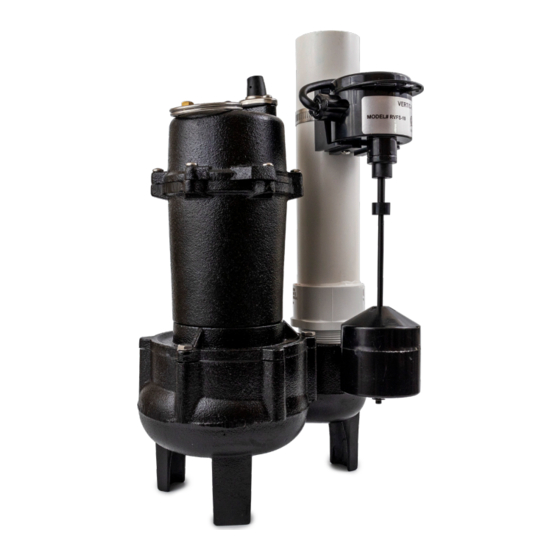

3/4 HP
HIGH FLOW
SEWAGE PUMP
PUMP PERFORMANCE
SPECIFICATIONS
115 VAC, 60Hz
Motor
Single Phase – Insulating Oil Filled
Horsepower
3/4 HP
Amp Rating
7.4 Amps
40°F to 120°F
15 Amp (Minimum)
15" High x 10" Base
Discharge
2" NPT
11" Diameter
2460
GALLONS/HR
4320
GALLONS/HR
5280
GALLONS/HR
Advertisement
Table of Contents
Related Manuals for RICHTECH SSMEAN34
Summary of Contents for RICHTECH SSMEAN34
- Page 1 3/4 HP HIGH FLOW SEWAGE PUMP INSTALLATION AND OPERATING INSTRUCTIONS A RICHTECH INDUSTRIES PRODUCT PUMP PERFORMANCE 2460 GALLONS/HR L I F T 4320 GALLONS/HR L I F T 5280 L I F T GALLONS/HR SPECIFICATIONS Power Supply Requirements 115 VAC, 60Hz Motor Single Phase –...
- Page 2 This pump is not designed to handle salt water, brine, laundry discharge, NOTICE water softener discharge or any other application which may contain caustic chemicals. Damage to the pump may occur and will void the pump’s warranty. ©2020 RICHTECH INDUSTRIES 1.800.677.7791 RICHTECHINDUSTRIES.COM...
- Page 3 4. Pump undersized for application from the pump discharge line. 5. Check valve stuck closed of installed backwards 4. Recheck all sizing calculations to determine proper size 5. Remove and examine check valve for proper installation and free operation ©2020 RICHTECH INDUSTRIES 1.800.677.7791 RICHTECHINDUSTRIES.COM...
- Page 4 This warranty is effective for three years from the date of installation. Richtech will repair or replace at its option for the original purchaser any part or parts of its MeanBoss 3/4 hp Sewage Pump found by Richtech to be defective in material or workmanship.
