PITBOSS
PITBOSS
WI FI CO N N EC TE D BATT E RY BAC KU P PU MP
WI FI CO N N EC TE D BATT E RY BAC KU P PU MP
12 VOLT BATTERY BACKUP SYSTEM
12 VOLT BATTERY BACKUP SYSTEM
WITH AUTOMATED 24 HOUR REMOTE MONITORING
WITH AUTOMATED 24 HOUR REMOTE MONITORING
Installation AND OPERATING INSTRUCTIONS

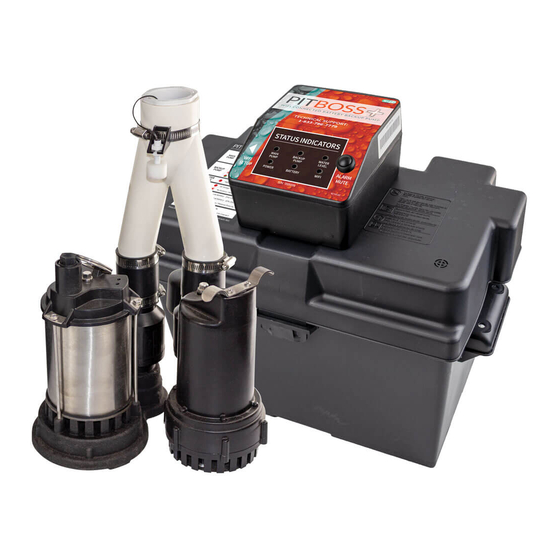

PitBoss +
Model #PBP12
The PitBoss + System requires a 12V Deep Cycle Battery (not included), 40 amp/hr
minimum, 75 amp/hr or higher recommended. SLA/AGM Battery strongly recommended.
READ ALL INSTRUCTIONS CONTAINED IN THIS MANUAL BEFORE USING THIS PRODUCT.
Save these instructions for future reference. Failure to read and follow the warnings and instructions
within this instruction manual could result in property damage, serious injury or death.
Power Supply Requirements
Motor
AMP Rating
Temperature Rating
Discharge
MAX Flow
Power Supply Requirements 120 VAC, 60 Hz,
Electrical Ratings
Relative Humidity
Storage Temperature
Operating Temperature
IMPORTANT!
PitBoss + Tech Support:
SPECIFICATIONS
12 VDC Sump Pump
System Solid State Pump Controller
1-833-786-7779
12 VDC
Brushless DC
18 Amps
40°F to 120°F
1 1/2" NPT
3000 GPH
15 AMP
12 Amps @ 120 VAC;
18 Amps @ 12 VDC
0 to 80%
0° to 70°C
0° to 50°C
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for RICHTECH PitBoss Plus PBP12
Summary of Contents for RICHTECH PitBoss Plus PBP12
- Page 1 PITBOSS PITBOSS WI FI CO N N EC TE D BATT E RY BAC KU P PU MP WI FI CO N N EC TE D BATT E RY BAC KU P PU MP 12 VOLT BATTERY BACKUP SYSTEM 12 VOLT BATTERY BACKUP SYSTEM WITH AUTOMATED 24 HOUR REMOTE MONITORING WITH AUTOMATED 24 HOUR REMOTE MONITORING INSTALLATION AND OPERATING INSTRUCTIONS...
- Page 2 SAFETY FIRST! This instruction manual contains very important information for you to know and understand. This information is provided for your safety and to help prevent equipment problems from occurring. Please observe all safety information labeled danger, warning and caution. WARNING INDICATES A POTENTIALLY HAZARDOUS WARNING SITUATION WHICH, IF NOT AVOIDED, COULD RESULT IN...
- Page 3 Inspect this unit before beginning installation. Occasionally, products are damaged during shipment. If the pump or any components are damaged, contact Richtech Industries for replacement. The PitBoss + System requires a 12V Deep Cycle Battery with a minimum 40 AMP/HR rating, 75 AMP/HR rating (or higher) recommended.
- Page 4 METHOD 2 (Connecting to existing discharge line) - See Figure 2 If a separate, dedicated discharge is not desired as in Method 1, the Backup Pump can be tied into the main pump’s discharge pipe by installing a “Y” connector. Two check valves will be required.
- Page 5 CONNECTING THE PITBOSS+ CONTROLLER 1. Install the Backup Pump using good plumbing practices. Both the Primary and Backup pumps should set on the bottom of the basin. 2. Install the switches for the primary pump and backup pump. The ON level of the lowest backup switch should be approximately 1”...
- Page 6 CONNECT YOUR PITBOSS+ SYSTEM TO WIFI AND THE PITBOSS+ MONITORING SERVICE Once online, your PitBoss+ system connects to the PitBoss+ Remote Monitoring Service. PitBoss+ watches over your system automatically, 24 hours a day. PitBoss+ collects operating data on your sump pumps and battery and analyzes this information to make sure your pumps are always in top working condition.
- Page 7 STEP 1: STEP 6: Download and Install the PitBoss+ App from the App Store. Connect the PitBoss+ to your WiFi Network • Open the PitBoss+ App STEP 2: • Create New Location - “+” in upper right corner Open the app and create a new PitBoss+ Account. •...
- Page 8 Instructions, your PitBoss+ product is warranted against original defects in material and workmanship for a full five (5) years from date of purchase (the “Warranty Period”). During the warranty period, Richtech Industries will repair or replace at no cost to you, to correct such defects in products found upon examination by Richtech Industries to be defective in materials or workmanship.
