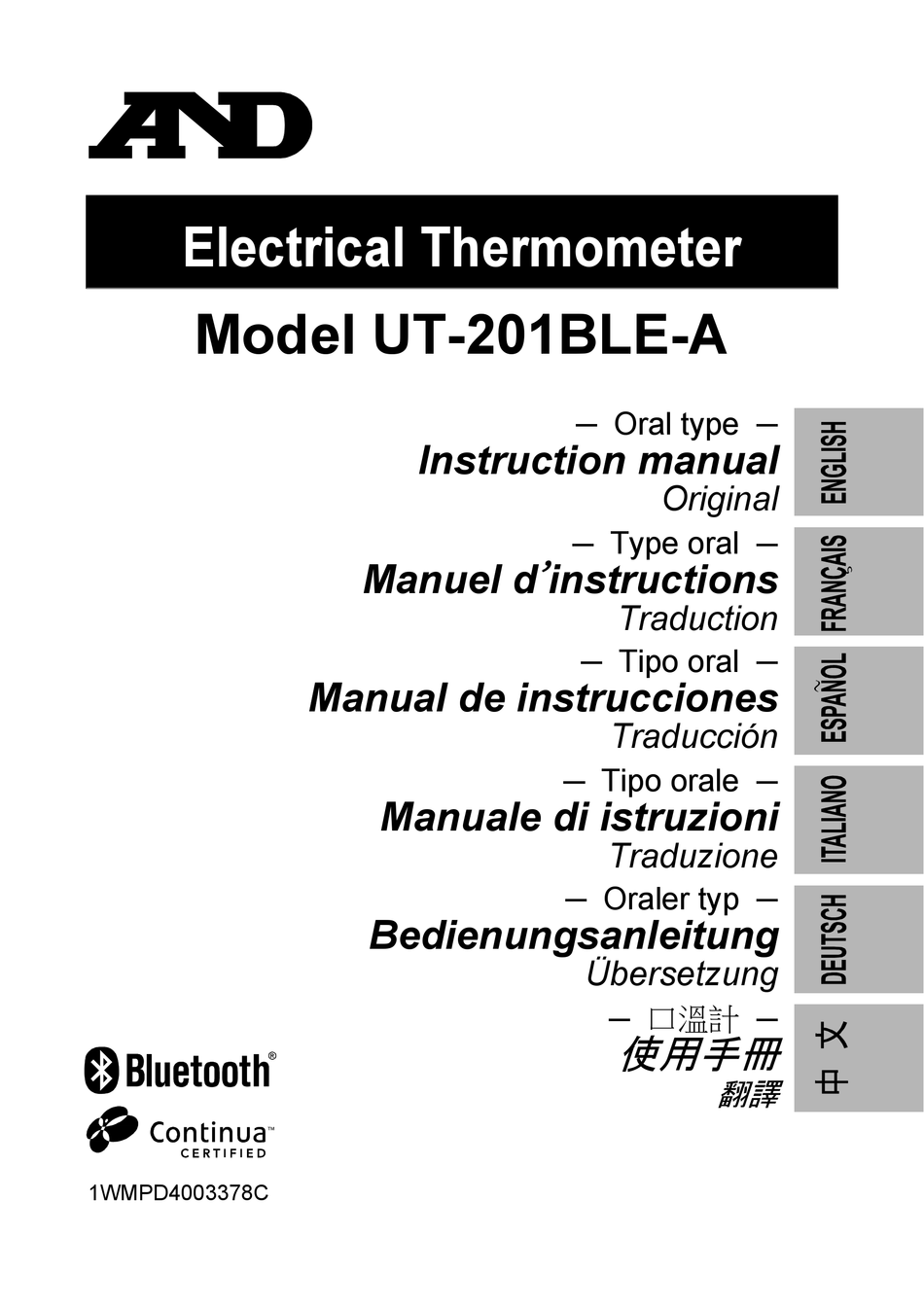

- Page 1 Electrical Thermometer Model UT-201BLE-A Oral type Instruction manual Original Type oral Manuel d ’ instructions Traduction Tipo oral Manual de instrucciones Traducción Tipo orale Manuale di istruzioni Traduzione Oraler typ Bedienungsanleitung Übersetzung 口溫計 使用手冊 翻譯 1WMPD4003378C...
-
Page 2: Table Of Contents
Notes for Accurate Measurement ........14 Features ................. 15 Adjusted Mode Measurement ..........15 Direct Mode Measurement ..........15 Switch with Flash Action ............. 15 Last Reading Display and Memory ........15 Temperature Unit ............... 15 Bluetooth ................ 15 Troubleshooting ..............16 Maintenance ................ -
Page 3: Dear Customers
The Bluetooth word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by A&D is under license. Other trademarks and trade names are those of their respective owners. -
Page 4: Precautions
Never use alcohol, benzene, thinner or other harsh chemicals to clean the device. Clean the device before and after use. Keep cleanly to be able to insert into mouth. It may be the cause of occurring a cross-infection if not clean. -
Page 5: Contraindications
When your skin and cloth are touched to the liquid inside of the battery, wash them with large quantities of water. Replacement of battery by inadequately trained personnel could result in a HAZARD (such as excessive temperatures, fire or explosion). -

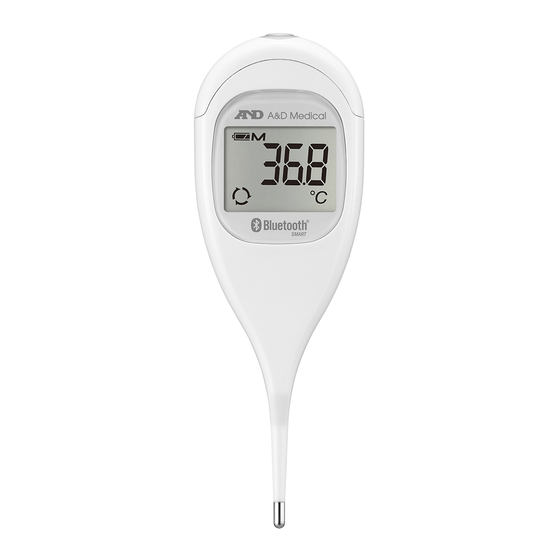

Page 6: Parts Identification
Parts Identification ON / Standby switch with LED. Battery : CR2032 Battery cover on the battery compartment Case Temperature sensor This manual Display Communication mark Memory mark Battery indicator Temperature value Count down indicator for measurements Units of temperature Adjusted Mode measurement mark Direct Mode measurement mark English 5... -
Page 7: Symbols
Symbols that are displayed on the device Symbols Function / Meaning Standby and turn on the thermometer. Last reading is stored in memory when the mark is displayed. Full battery mark. Low battery mark: A half of the battery capacity was consumed. -
Page 8: Using The Thermometer
When (Low battery mark) blinks in the display, replace the battery with a new one. Replace the battery after the device turns off and wait for two seconds or more. (Low battery mark) does not appear when the battery is drained. -
Page 9: Wireless Function
Doing so may result in frequent loss of connection, very slow communication speeds and errors. Using close to an IEEE802.11g/b/n wireless LAN device may cause mutual interference to occur, which may result in reduced communication speeds or which may prevent connection. -
Page 10: Bluetooth Transmission
Bluetooth devices. Continua certified devices iPhone, iPad, iPod (iPhone 4S or later) Applications and devices that are compatible with Bluetooth 4.0. Each device needs an application to receive data. For connection methods, refer to the manual for each device. Bluetooth... -
Page 11: Pairing
The thermometer can be found by the receiver device while " " is displayed for approx. one minute. Find, select and build a pair with the receiver device in accordance with its manual. When the pairing of the receiver device is built, "... -
Page 12: Measurement And Transmitting Data
A total of 90 sets of measurement data can be stored. When the amount of data exceeds 90 sets, the oldest data is deleted and the new data is stored. The amount of data that can be stored temporarily may vary with the application. -
Page 13: Applying The Thermometer
Using the Thermometer Applying the Thermometer Put the thermometer sensor on the mouth floor under the tongue, at the root of the tongue and at the side of the lingual frenulum. Keep the position of the sensor during measurement Tongue... -
Page 14: Measurements
Wait until " " is displayed. Ready Sensor position Put the temperature sensor on the mouth floor (under the tongue, at the root of the tongue and at the side of the lingual frenulum). Close the mouth gently. keep the sensor position during Measurement start measurement for approximately 30 seconds. -
Page 15: Direct Mode Measurement
In measurement, breathe with using nose and closing mouth. Should the device detect a condition that is abnormal, it will stop the measurement and display an error symbol. See page 6 for the description of the symbols. This thermometer is intended for use by adults only. Consult with your physician before using this device on a child. -
Page 16: Features
When pressing the switch , this switch flashes. When finishing the measurement, this switch flashes. Last Reading Display and Memory The previous reading stored in memory is automatically displayed when turning on the thermometer. The new reading is stored in memory when measuring the temperature. -
Page 17: Troubleshooting
Nothing appears in the display, even Reinstall the battery with negative when the power is Battery terminals are not in and positive terminals matching turned on. the correct position. those indicated on the battery compartment. Battery power is low. -
Page 18: Maintenance
A&D for maintenance. Cleaning Clean the device with a dry, soft cloth or a cloth dampened with water and a neutral detergent and wrung tightly. Wipe the temperature sensor of the device with a cloth to soak disinfectant ethanol (76.9 to 81.4 v/v%). -
Page 19: Technical Data
Technical Data Model UT-201BLE-A Measurement method Adjusted mode measurement using thermistor, Direct mode measurement using thermistor Measuring site/Reference body site Oral, under tongue Temperature sensor Thermistor Measurement range 32.0 to 42.0 °C (89.6 to 107.6 °F) Measurement accuracy ±0.1 °C Measurement time Adjusted mode measurement : Approx. - Page 20 EMD information provided in the following. Portable and mobile RF communication equipment (e.g. cell phones) can affect Medical Electrical Equipment. The use of accessories and cables other than those specified may result in increased emissions or decreased immunity of the unit.
- Page 21 MEMO English 20...
- Page 22 A&D Company, Limited 1-243 Asahi , Kitamoto-shi, Saitama 364-8585, JAPAN Telephone: [81] (48) 593-1111 Fax: [81] (48) 593-1119 Emergo Europe B.V. Prinsessegracht 20, 2514 AP The Hague, The Netherlands Tel: [31] (70) 345-8570 Fax: [31] (70) 346-7299 A&D INSTRUMENTS LIMITED Unit 24/26 Blacklands Way, Abingdon Business Park, Abingdon, Oxfordshire OX14 1DY United Kingdom Telephone: [44] (1235) 550420 Fax: [44] (1235) 550485...
