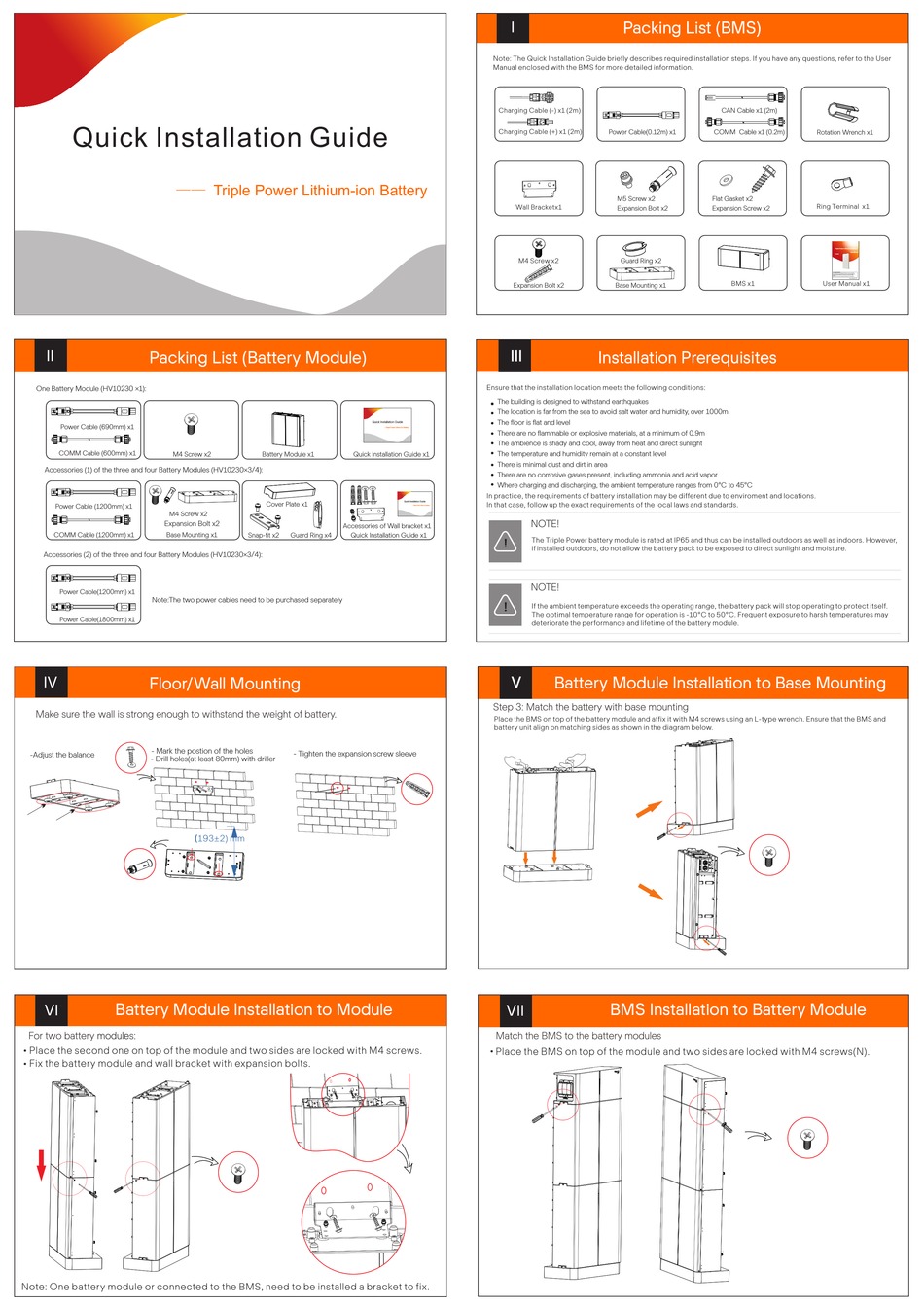

Solax Triple Power HV10230 Quick Installation Manual

Quick Installation Guide
—— Triple Power Lithium-ion Battery
II

Packing List (Battery Module)

One
Battery Module (HV10230 ×1):
Power Cable (690mm) x1
COMM Cable (600mm) x1
M4 Screw x2
Accessories (1) of the
three and four Battery Modules (HV10230×3/4):
Power Cable (1200mm) x1
M4 Screw x2
Expansion Bolt x2
COMM Cable
(1200mm) x1 Base M ounting


Accessories (2) of the three and four Battery Modules (HV10230×3/4):
Power Cable(1200mm) x1
Note:The two power cables need to be purchased separately
Power Cable(1800mm) x1
IV

Floor/Wall Mounting

Make sure the wall is strong enough to withstand the weight of battery.
- Mark the postion of the holes
-Adjust the balance
- Drill holes(at least 80mm) with driller

Battery Module Installation to Module

VI
For two battery module s:
Place the second one on top of the module and two sides are locked with M4 screws.
·
Fix the battery module and wall bracket with expansion bolts.
·
Note: One battery module or connected to the BMS, need to be installed a bracket to fix.
Battery Module x1 Quick Installation Guide x1
Cover Plate x1
Accessories of Wall bracket x1
x1 Snap-fit x2 Guard Ring x4 Quick Installation Guide x1
-
Tighten the expansion screw sleeve
(193±2) mm
I
Note: The Quick Installation Guide briefly describes required installation steps. If you have any questions, refer to the User
Manual enclosed with the BMS for more detailed information.
Charging Cable (-) x1 (2m)
Charging Cable (+) x1 (2m)
Wall Bracketx1
M4 Screw x2
Expansion Bolt x2
III
Ensure that the installation location meets the following conditions:
The building is designed to withstand earthquakes
Ÿ Ÿ Ÿ Ÿ Ÿ Ÿ Ÿ Ÿ Ÿ Ÿ
The location is far
Ÿ
The floor is flat and level
Quick Installation Guide Ÿ
--Triple Power Lithum-ion Battery
There are no flammable or explosive materials, at a minimum of 0.9m
Ÿ
The ambience is shady and cool, away from heat and direct sunlight
Ÿ
The temperature and humidity remain at a constant level
Ÿ
There is minimal dust and dirt in area
Ÿ
There are no corrosive gases present, including ammonia and acid vapor
Ÿ
Ÿ Where charging and discharging, the ambient temperature ranges from 0°C to 45°C
In practice, the requirements of battery installation may be different due to enviroment and locations.
Quick Installation Guide In that case, follow up the exact requirements of the local laws and standards.
--Triple Power Lithum-ion Battery
NOTE!
The Triple Power battery module is rated at IP65 and thus can be installed outdoors as well as indoors. However,
if
installed outdoors, do not allow the battery pack to be exposed to direct sunlight and moisture.
NOTE!
If the ambient temperature exceeds the operating range, the battery pack will stop operating to protect itself.
The optimal temperature range for operation is -10°C to 50°
deteriorate the performance and lifetime of the battery module.
V
Step 3: Match the battery with base mounting
Place the BMS on top of the battery module and affix it with M4 screws using an L-type wrench. Ensure that the BMS and
battery unit align on matching sides as shown in the diagram below.
VII
Match the BMS to the battery modules
·Place the BMS on top of the module and two sides are locked with M4 screws(N).

Packing List (BMS)

CAN Cable x1 (2m)
Power Cable(0.12m) x1 COMM Cable x1 (0.2m)
M5 Screw x2 Flat Gasket x2
Expansion Bolt x2 Expansion Screw x2
Guard Ring x2
Base M
ounting x1

Installation Prerequisites

from the sea to avoid salt water and humidity, 1000m

over

Battery Module Installation to Base Mounting

BMS Installation to Battery Module

Rotation Wrench x1
Ring Terminal x1
Triple Pow er Lithium-ion Battery
User Manual
30Ah
Copyright Declaration
The copyright of this manual belongs to SolaX Power Co.,Ltd.. Any corporation or
individual should not plagiarize, partitially copy or fully copy(including software,etc.),
and no reproduction or distribution of it in any form or by any means. All rights
SolaX Power Co.,Ltd,.reserves the right of final interpretation. The information is reserved.
BMS x1 User Manual x1
C. Frequent exposure to harsh temperatures may
