SERVICE MANUAL

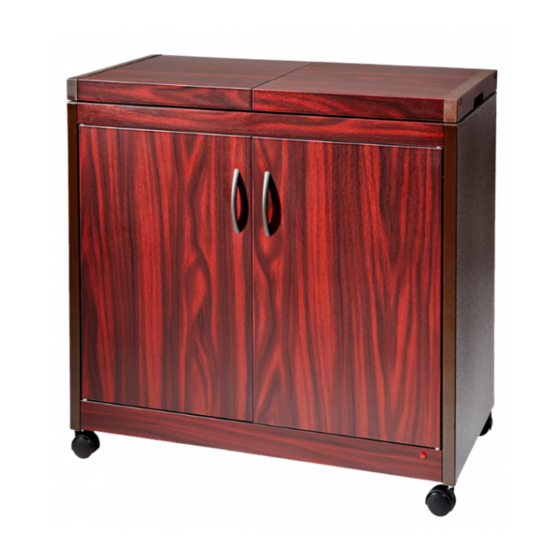

HOSTESS TROLLEY - U.K.
HL6232BA - Black Ash
HL6232BS - Brushed Stainless
HL6232DB - Dark Brown
HL6232LB - Light Brown
HL6232BE - Beech
HL6232SV - Silver
HL6232GO - Golden Oak
Service Hints - Page 1
Technical Data - Page 3
Wiring Diagram - Page 3
Exploded Views - Page 4
Parts List
- Page 5
February 2016
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Hostess HL6232 Series
Summary of Contents for Hostess HL6232 Series
- Page 1 SERVICE MANUAL HOSTESS TROLLEY - U.K. HL6232BA - Black Ash HL6232BS - Brushed Stainless HL6232DB - Dark Brown HL6232LB - Light Brown HL6232BE - Beech HL6232SV - Silver HL6232GO - Golden Oak Service Hints - Page 1 Technical Data - Page 3...
-
Page 2: Disassembly And Assembly
HL6232 SERIES DISASSEMBLY AND ASSEMBLY ENSURE APPLIANCE IS DISCONNECTED FROM THE ELECTRICITY SUPPLY BEFORE DISASSEMBLING. NOTE ALL CONNECTION DETAILS AND ROUTING OF LEADS BEFORE DISASSEMBLING. Numbers appearing in the text refer to illustrations and parts list numbers. A. SLIDING TABLETOPS Slide both tabletops open. -
Page 3: Mains Lead
HL6232 SERIES D. MIDDLE AND BOTTOM ELEMENT ASSEMBLY / NEON Remove rear cover strip 510 as shown in C.1. And disconnect the middle shelf element leads 110 from Terminal block 120 (see note in C.1.) Remove the two screws securing the element assembly through the rear panel of the cabinet, and two screws from under the front edge of the shelf (bottom element front screws are under the front of the cabinet,behind the bottom rail) –... -
Page 4: Theoretical Wiring Diagram
HL6232 SERIES F. CABINET ITEMS Magnetic catches 111 are a push-fit in front top panel 109. To remove front top panel 109, remove both sliding table tops completely (see A.1.) and magnetic catches 111. Drill out the rivet at each end of the front slide panel using a 3mm bit. Use extreme care when drilling. - Page 5 Hostess Trolley - Exploded View 1...
- Page 6 Hostess Trolley - Exploded View 2...
- Page 7 HL6232 Hostess Trolley - Exploded View 3 2 Ltr Round Dishes - Serial No's: 1540825398 and higher. EXCEPT FOR: 1540852442 to 1540852464, 1504852506 to 1540852540, 1540849647 to 1540849466.
- Page 8 HL6232 Wood Effect Hostess Trolley - Parts List Item Description Part Number Glass Dish & Lid (Oval) - Exploded View 1 0101 092 21701 Glass Dish & Lid (Round) - Exploded View 2 0101 092 66321 Glass Dish & Lid ( 2 Ltr Round) - Exploded View 3 0101 092 69011 Serial No's 1540825398 and higher.
- Page 9 HL6232 Wood Effect Hostess Trolley - Parts List Castor (4 Pack) 0101 078 53291 Castor Insert 0101 077 61302 Neon Assembly 0101 078 57811 Terminal Block 0101 078 53262 Strain Release Bush 0101 077 61511 Cordset (U.K.) 0101 076 90741...
- Page 10 HL6232 Wood Effect Hostess Trolley - Parts List Pair of Doors (HL6232GO) - not available separately 0101 092 55691 User Instruction Booklet 0101 194 12762 Bold text indicates a choice of parts depending on the model version...
