- Page 1 L090 LIQUID LEVEL FLOAT SWITCH INSTALLATION AND OPERATIONS MANUAL Bent Stem Liquid Level Float Switch...
- Page 2 Innovation is committed to providing full customer satisfaction; both in quality products and in quality service. Contacts Phone: 203-729-6434 Mon-Fri, 9 AM - 5 PM EST Fax: 203-729-0541 for General Inquiries Email: sales@innovativesensing.com L090 BENT STEM LIQUID LEVEL FLOAT SWITCH...
-
Page 3: Table Of Contents
2.1 What To Do............6 3.5.3 Switch Wiring Codes........9 2.1.1 Inspect Entire Unit Periodically....6 3.5.4 Dimensional Specifications.......10 2.1.2 Inspect Connections Monthly....6 3.6 Model Configurator...........10 2.1.3 Keep Unit Clean..........6 3.7 Replacement Parts..........10 2.2 What To Avoid.............6 3.8 Notes..............11 L090 BENT STEM LIQUID LEVEL FLOAT SWITCH... -
Page 4: Installation
L090 Bent Stem Liquid Level Float Switch. 1.2.2 Equipment and Tools No special equipment or tools are required to install the L090 Bent Stem Liquid Level Float Switch.. The Following Are Recommended: • Wrenches, thread sealant, gaskets and/or bolting as required for the process connection. -
Page 5: Mounting

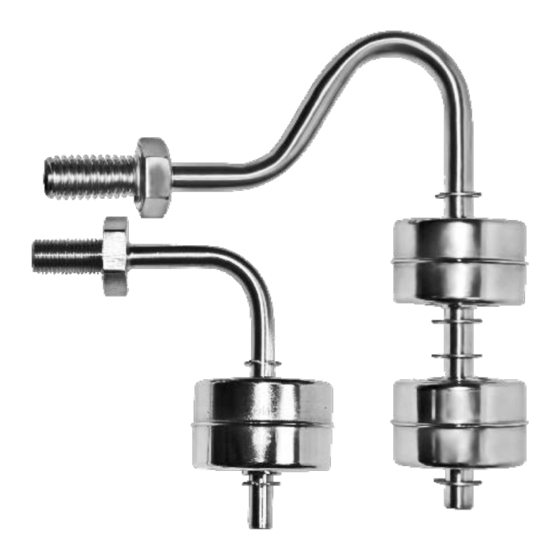

1.3 MOUNTING The L090 Bent Stem Liquid Level Float Switch is available in a variety of threaded and flanged mountings. These devices are meant to be installed on the side of a process tank or vessel. They should be mounted in an area free of turbulence or direct streams. -
Page 6: Preventative Maintenance
2.0 PREVENTATIVE MAINTENANCE Periodic inspections are necessary to maintain the proper functionality of the L090 Bent Stem Liquid Level Switch. The switch is a safety device that protects the equipment it serves. A systematic program of preventative maintenance should be implemented at the time of installation. If the following instructions are completed routinely, the switch will provide continuous, reliable protection. -
Page 7: Reference Information
3.0 REFERENCE INFORMATION This section illustrates an overview of the L090 Bent Stem Liquid Level Switch, as well as information on troubleshooting common problems, agency approval listings, and detailed physical, functional and performance specifications. 3.1 DESCRIPTION The L090 Bent Stem Liquid Level Switch is a float-actuated device designed to be side-mounted within a tank or process vessel through threaded or flanged connections. -
Page 8: Unit Causes
EXTERNAL CONDITIONS AS DESCRIBED IN SECTION 3.3.1. THE UNIT STILL DOES NOT FUNCTION. If you are still in doubt about the condition or performance of your control, consult the factory for further instructions. L090 BENT STEM LIQUID LEVEL FLOAT SWITCH... -
Page 9: Agency Approvals
1/8” (3 mm). The maximum Yellow Yellow/Yellow Yellow/White-Yellow number of actuation levels depends on the wiring type Blue Blue/Blue selected. Brown 3 Standard Lead Wires are 24” long, 22 AWG, UL- approved wire. Orange L090 BENT STEM LIQUID LEVEL FLOAT SWITCH... -
Page 10: Dimensional Specifications
• Model & Serial Numbers RETAINING CLIP PANEL NUT • Name & Part Number of Replacement Part or Assembly Contact the manufacturer for ordering assistance on all replacement parts. There are many options to choose from. FLOAT L090 BENT STEM LIQUID LEVEL FLOAT SWITCH... -
Page 11: Notes
3.8 NOTES L090 BENT STEM LIQUID LEVEL FLOAT SWITCH... - Page 12 Products returned under RMA’s can be issued through local representatives, or by the SWI Service Policy must be returned by prepaid contacting the factory directly. transportation. Solutions With Innovation will repair or...
