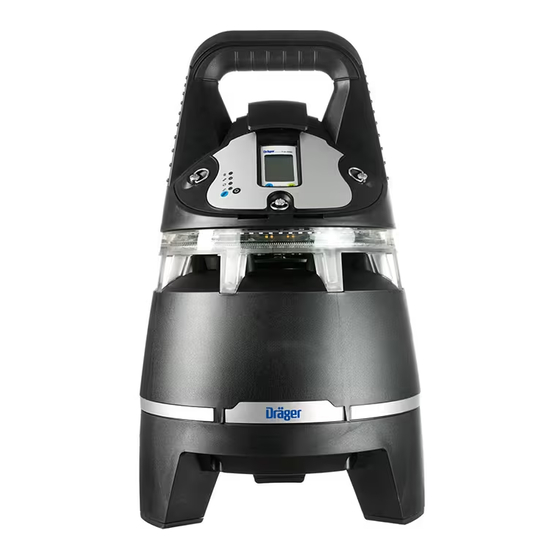

Dräger X-zone 5500 Quick Start Manual

X-zone 5500 / 5800
Notes on approval
Marking
X-zone 5500
0 Ex ia IIC T3 X
PO Ex ia I X
TC RU C-DE.BH02.B.00025
Dräger Safety
23560 Lübeck, Germany
0158
I M1 Ex ia I Ma
II 1G Ex ia IIC T4 Ga
IECEx BVS 10.0038X
BVS 10 ATEX E 047X
Charging voltage U
C22.2 No. 152 for % LEL reading only with MQG 00xx or
MQG 001* or MQG 01*
WARNING:
Do not charge batteries in hazardous location;
CAUTION: Read and understand manual before use
AVERTISSEMENT:
Ne pas charger batteries dans des endroits dangereux;
ATTENTION:
Lire et comprendre manuel avant utilisation
X-zone 5800
X-zone 5800
AAC 0300
10
0158
I M1, II 1G
Ex ia I Ma, Ex ia IIC T4 Ga
BVS 10 ATEX E 047X
IECEx BVS 10.0038X
-20°C Ta +50°C
XEXT1: Charging voltage Um <= 30V DC
XEXT3 - Entity parameter of supply inputs:
Circuit Pin (+) Pin (-) Ui / V I / A
1 1 9
li (spark):
2 2 8
0,850
13,1
l (therm):
3 3 7
0,425
4 4 6
Refer to Control Drawing SE23345.
WARNING: Do not charge batteries in hazardous location;
CAUTION: Read and understand manual before use
AVERTISSEMENT: Ne pas charger batteries dans des endroits dangereux;
ATTENTION: Lire et comprendre manuel avant utilisation
Dräger Safety, 23560 Lübeck, Germany
1
Serial No.
1 Serial Number key: The third letter of the serial number specifies
the manufacturing year: M = 2019, N = 2020, P = 2021, R = 2022,
S = 2023, T = 2024, U = 2025, W = 2026, X = 2027, Y = 2028,
Z = 2029, etc. (Letters G, I, O, Q are omitted)
Example: Serial Number ARMB-0001: the third letter is M, which
means that the unit was manufactured in 2019.
Type: AAC 0010
CSA 11 2367399
Ex ia IIC T3
Ex ia d IIC T4
Class I, Zone 0,
AEx ia IIC T3 Ga
Class I, Zone 1,
AEx ia d IIC T4 Gb
<= 30 V DC
m
11.2367399
Ex ia IIC T4 Ga
Class I, Zone 0,
AEx ia IIC T4 Ga
Pi / W Ci / nF Li / μH
2,78 1,00 1,00
Made in Germany
i
Radio approval
Effective ra-
Radio bands diated power
(ERP)
868 MHz <5 dBm
433 MHz
915 MHz
920 MHz
Only for USA (X-zone 5500/5800):
Changes or modifications not expressly approved by the party respon-
sible for compliance could void the user's authority to operate the
equipment.
This device complies with part 15 of the FCC Rules.
Operation is subject to the following two conditions
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including inter-
ference that may cause undesired operation.
This device complies with part 15 of the FCC Rules. Operation is sub-
ject to the following two conditions: (1) This device may not cause
harmful interference, and (2) this device must accept any interference
received, including interference that may cause undesired operation.
This equipment has been tested and found to comply with the limits for
a Class B digital device, pursuant to part 15 of the FCC Rules. These
limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates,
uses and can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful interfe-
rence to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment
does cause harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the user is en-
couraged to try to correct the interference by one or more of the follo-
wing measures:
Reorient or relocate the receiving antenna.

Increase the separation between the equipment and receiver.

Connect the equipment into an outlet on a circuit different from that

to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.

FCC responsible party:
Draeger Inc.
7256 S. Sam Houston W. Parkway
Suite 100
Houston, Tx 77085 USA
phone: +1 346-802-6111
e-mail: DIHouston.Approvals@draeger.com
Only for Canada (X-zone 5500/5800):
CAN ICES-003(B) / NMB-003(B)
Only for Japan (X-zone 5500):
Japanese Radio Law Compliance.
This device is granted pursuant to the Japanese Radio Law (
This device should not be modified (otherwise the granted designation
number will become invalid)
X-zone 5500 X-zone 5800
approved in approved in
EU, SG, MY EU
RU
US, CA, AU US, CA
JP
電波法
)
