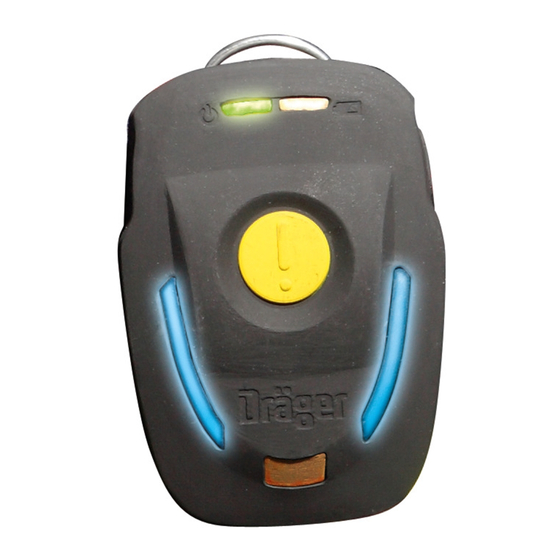

Dräger Bodyguard
Warning Device
Designed to protect life by alerting the team when a wearer becomes
motionless or distressed, the Dräger Bodyguard
distinctive signals and alarms to ensure quick and effective recognition,
even in the worst environmental conditions.
LED Display
– "Active" – green fl ash
each 5 sec
Removable Rubber
Protection Cover
– Chemical and impact resistant,
fl ame retardant
High Visible Twin LED
– Blue tracker lights enable easy
location in condition of poor visibility
1000
®
®
1000 emits clear and
LED Display
– Battery low
Panic Button
– Simple operation, even
whilst wearing gloves
Thermal Sensor
– Audible alarm whilst ambient temperature
rising rapidly or exceeding pre-set safe
working levels

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Bodyguard 1000 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Dräger Bodyguard 1000

  • Page 1 Dräger Bodyguard 1000 ® Warning Device Designed to protect life by alerting the team when a wearer becomes motionless or distressed, the Dräger Bodyguard ® 1000 emits clear and distinctive signals and alarms to ensure quick and effective recognition, even in the worst environmental conditions. LED Display –...
  • Page 2 Compatible with all SCBA With optional alligator clip or securing clamp, the Bodyguard 1000 can be quickly and securely fitted to any SCBA, in any position, whether at the shoulder, waist or backplate.
  • Page 3: System Components

    Dräger Bodyguard ® 1000 | 03 System Components Dräger PSS ® 5000 The Dräger PSS ® 5000 SCBA is a high-performance breathing apparatus for the professional firefighter. Combining advanced ergonomics with a wide range of configurable options, the Dräger PSS ®...
  • Page 4: Related Products

    04 | Dräger Bodyguard ® 1000 Related Products Dräger Bodyguard ® 7000 The Dräger Bodyguard ® 7000 is an electronic monitoring unit which provides continuous monitoring of personal information and operational status of the Dräger PSS ® 7000 and PSS ®...
  • Page 5: Technical Data

    Dräger Bodyguard ® 1000 | 05 Technical Data Weight 230 g (with batteries) Dimensions H x W x D 100 x 70 x 40 mm Upper frequency 2900 (± 200) Hz Alarm 102 – 112 L Aeq,30s Pre-Alarm 86 – 102 L Aeq,6s Battery CR123 Panasonic Lithium (2 batteries)
