Summary of Contents for Avant Guard D30
- Page 1 WIFI SMART DOOR LOCK User Manual...
-
Page 2: Table Of Contents
6.5. User Settings ......................16 6.5.1. Add User ....................... 16 6.5.2. Modify User ....................16 6.5.3. Delete User ....................16 6.6. Lock Settings ....................... 18 6.6.1. Date and Time Setting ................. 18 6.6.2. Unlock Mode Setting ................... 18 AVANT GUARD... - Page 3 App Functions ..................... 21 7.3.1. Battery Status ....................21 7.3.2. Remote Dynamic Password / One time password ........21 7.3.3. Temporary Password ................... 22 7.3.4. Remote Unlocking via app ................. 23 7.3.5. Records ......................24 Specifications ......................26 AVANT GUARD...
-
Page 4: Warning And Safety Instructions
For safety purposes, when 5 continuous entry error detected door lock will enter self-protection mode and keyboard panel will freeze for 1 minute. Please read this user manual carefully before first use. Keep this manual for further guidance in case. AVANT GUARD... -

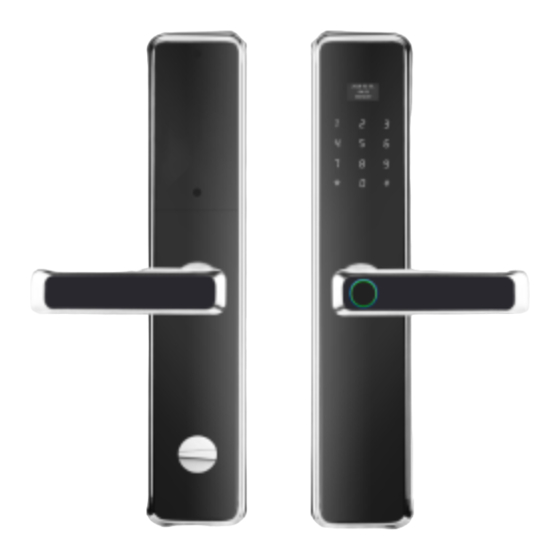

Page 5: Product Layout
Product Layout Smart lock installation requires heavy duty tools handling. Please engage professionals for proper installation. Our company shall not be liable for any direct or indirect problems, hazards or losses incurred due to improper installation. AVANT GUARD... -
Page 6: Components
Components Front and back lock panels Mortise Lock body iii. Cylinder lock IC Card x 2 Mechanical keys x 2 AA Batteries x 4 3.1. Accessories List AVANT GUARD... -
Page 7: Installations
Installations AVANT GUARD... - Page 8 AVANT GUARD...
-
Page 9: Lock Functions
Lock Functions 5.1. Unlocking Methods 5.1.1. Fingerprint 5.1.2. Password AVANT GUARD... -
Page 10: Card
5.1.3. Card 5.1.4. Key AVANT GUARD... -
Page 11: App
5.1.5. App Press “9” + “#” to activate doorbell function Receive doorbel call notication on app iii. Open app and select smart lock Press on “Click open remotely”, then press on “Confirm” to allow remote opening Door unlocked. AVANT GUARD... -
Page 12: Temporary Password
5.1.6. Temporary Password 5.1.7. One Time Password (Dynamic Password) AVANT GUARD... -
Page 13: Locking Methods
5.2. Locking Methods 5.2.1. Deadbolt Locking To engage deadbolts locking rotate the internal or external door handle upwards. 5.2.2. Safety knob Security lock at inside panel for internal locking. Once locked, door opening from outside is not allowed. AVANT GUARD... -
Page 14: Operations
Press “#” for confirm key or menu function key iii. Press “9” + “#” for Doorbell key Swipe panel to activate keypad 6.3. Enter Administrator mode Swipe panel to activate screen Enter “*” + “#” iii. Enter Administrator Information (password, fingerprint, or card) Enter function management AVANT GUARD... -
Page 15: Administrator Settings
Delete OK delete 2. User Setting 2. Modify Admin 3. System Setting 3. Del Admin 4. Data & Records •Press 1 •Press 3 •Scan Fingerprint or Enter Password or Scan Card •Press "*" to cancel •Press "#" to confirm AVANT GUARD... -
Page 16: User Settings
2. Delete by Type 3. Del User 3. System Setting 3. Delete by All 4. Data & Records •Press 2 •Press 3 •Scan •Press 1 Fingerprint or Enter Password or Scan Card •Press "*" to cancel •Press "#" to confirm AVANT GUARD... - Page 17 2. Modify User Delete 2. User Setting 2. Delete by Type 3. Del User 3. System Setting 3. Delete by All 4. Data & Records •Press "*" to •Press 3 •Press 2 •Press 3 cancel •Press "#" to confirm AVANT GUARD...
-
Page 18: Lock Settings
2. Function Set 2. Disable 2. User Setting 2. Passage Mode 3. Language 3. Alarm Mode 3. System Setting 4. Data & Records 4. Sound Mode •Press 3 •Press 1 to •Press 3 •Press 2 enable •Press 2 to disable AVANT GUARD... -
Page 19: Sound Setting
Factory Reset Long press the “Reset” button on the back panel for 5 seconds. System will enter the state of restored factory settings. All unlock information and record will be cleared. iii. Initial password will be “123456” for administrator. AVANT GUARD... -
Page 20: App User Manual
Select 2.4GHz WiFi network and enter password. If Wi-Fi is 5GHz, please set it to be 2.4GHz. viii. Short press on “Reset” button at the smart lock back panel. You may ignore the password order. Wait for connection. Connection successful. AVANT GUARD... -
Page 21: App Functions
Remote dynamic password / One time password can be generated from app for smart lock opening. This password can only be used once and invalid after 5 minutes. On the smart lock control panel, swipe to the right of lock icon. AVANT GUARD... -
Page 22: Temporary Password
Temporary password can be set for a certain period. Password will be invalid after the expiration time. On the smart lock control panel, tap on the “Temporary PW”. Tap the button in the upper right corner to create new temporary password. iii. Enter password, name, and effective time period. AVANT GUARD... -
Page 23: Remote Unlocking Via App
Press on “9” + “#” on door lock Doorbell call notification received. Open app. iii. Press on “Click open remotely” Click on “Confirm” to allow remote opening. Door unlocked. If unattended after 6 seconds, door will be automatically locked. AVANT GUARD... -
Page 24: Records
Smart lock touch panel will be deactivated for 1 minute. 7.3.5.3. Prying Alarm Alarm and phone notification alert when tampering attempt is detected at smart lock. Alarm siren at smart lock will be activated to scare off possible intruders. AVANT GUARD... - Page 25 Tap member management. Associate A with a username and mark A as a hijacking alarm. This helps locate the hijacked person. Use A to unlock the door. A hijacking alarm will be sent to the app’s Message Centre. AVANT GUARD...
-
Page 26: Specifications
Quiescent Current <50 μA Working Current <250 μA Fingerprints <=100 (9 Admin, 91 Users) Cards <=300 (9 Admin, 291 Users) Passwords <=300 (9 Admin, 291 Users) Working Temperature C ~ 60 ° ° Working Humidity 20% ~ 93% AVANT GUARD...
