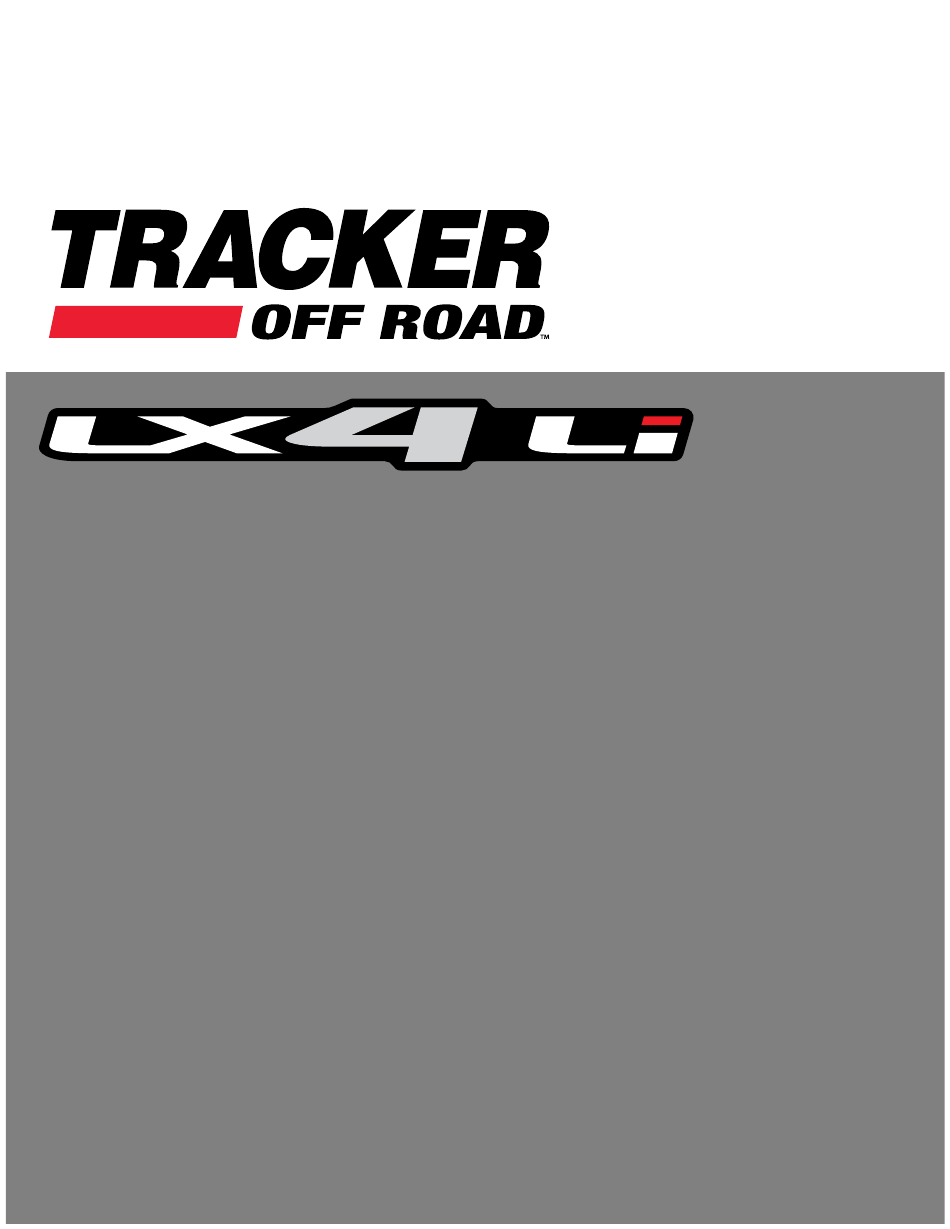

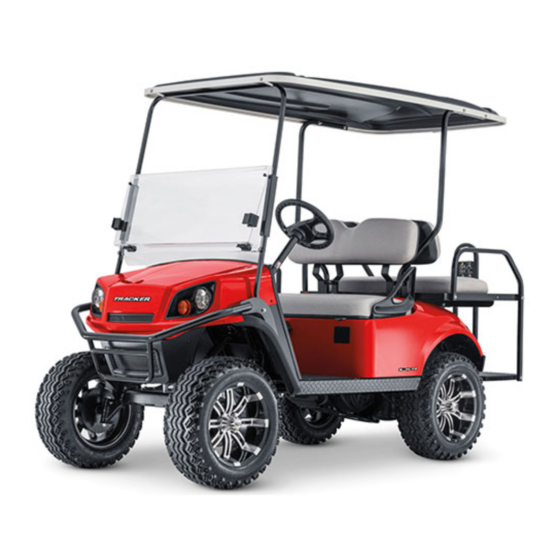

SERVICE PARTS MANUAL
696883-C
Revised 07-19
Issued 04-19

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TRACKER LX4 Li and is the answer not in the manual?

Questions and answers

Related Manuals for Tracker Off-Road TRACKER LX4 Li

Summary of Contents for Tracker Off-Road TRACKER LX4 Li

  • Page 1 SERVICE PARTS MANUAL 696883-C Revised 07-19 Issued 04-19...
  • Page 3 SERVICE PARTS MANUAL ELECTRIC POWERED VEHICLE TRACKER LX4 Li STARTING MODEL YEAR 2019 Never modify the vehicle in any way that will alter the weight distribution of the vehicle, decrease its stability or increase the speed be- yond the factory specifications. Such modifications can cause serious personal injury or death. The manufacturer prohibits and dis- claims responsibility for any such modifications or any other alteration which would adversely affect the safety of the vehicle.
  • Page 4 GENERAL INFORMATION To obtain a copy of the limited warranty applicable to the vehicle, call or write a local Distributor, authorized Branch or the Warranty Department with vehicle serial number and manufacturer code. The use of non Original Equipment Manufacturer (OEM) approved parts may void the warranty.

  • Page 5: Table Of Contents

    TABLE OF CONTENTS SECTION Page No. HOW TO USE THE SERVICE PARTS MANUAL ..........V ACCELERATOR .
  • Page 6 NOTES Page iv Service Parts Manual Service Parts Manual...

  • Page 7: How To Use The Service Parts Manual

    HOW TO USE THE SERVICE PARTS MANUAL This manual is divided into several sections: • GENERAL INFORMATION • ILLUSTRATED PARTS BREAKDOWN The first section, GENERAL INFORMATION, contains the following information: • WARRANTY INFORMATION • TABLE OF CONTENT • HOW TO USE THE SERVICE PARTS MANUAL The second section, ILLUSTRATED PARTS BREAKDOWN, contains illustrations and parts lists for all systems of your vehicle.
  • Page 8 HOW TO USE THE SERVICE PARTS MANUAL Title Title *See Body Section for decal information 102,104 Front of Vehicle 83,88 81,86 84,89 82,87 128 129 Left hand illustration page Parts list (continued on rear of page if required) 1. WHEN THE PART NUMBER IS NOT KNOWN •...
  • Page 9 HOW TO USE THE SERVICE PARTS MANUAL 3. COLOR CODE FOR BODY COMPONENTS The last two digits of the part number for the body part will denote the color code, locate the part number for the cowl, rear body, seat pod, side panel or seat wrap then locate your color in the list below, replace the last ** or XX with the two digit color code.
  • Page 10 ACCELERATOR Front of Vehicle To harness from direction selector Part of Frame Pedal Box Assembly includes items 2 - 33 Accelerator Pedal Assembly includes items 28 - 30 Page A-1 696883 Service Parts Manual...
  • Page 11 ACCELERATOR THE USE OF NON U.L. PARTS WILL VOID ANY U.L. LISTING. When ordering parts, please specify the model and serial number of the product. * Indicates a component that is not available as an individual part. *** Indicates consult Customer Service Department for additional information. ITEM PART NO.
  • Page 12 ACCELERATOR THE USE OF NON U.L. PARTS WILL VOID ANY U.L. LISTING. When ordering parts, please specify the model and serial number of the product. * Indicates a component that is not available as an individual part. *** Indicates consult Customer Service Department for additional information. ITEM PART NO.

  • Page 13: Accelerator

    ACCELERATOR Notes: 696883 Service Parts Manual Page A-4...

  • Page 14: Battery Charger

    BATTERY CHARGER Page B-1 696883 Service Parts Manual...
  • Page 15 BATTERY CHARGER THE USE OF NON U.L. PARTS WILL VOID ANY U.L. LISTING. When ordering parts, please specify the model and serial number of the product. * Indicates a component that is not available as an individual part. *** Indicates consult Customer Service Department for additional information. ITEM PART NO.
  • Page 16 BATTERY CHARGER Notes: Page B-3 696883 Service Parts Manual...
  • Page 17 BATTERY CHARGER Notes: 696883 Service Parts Manual Page B-4...
  • Page 18 BODY Front of Vehicle Front of Vehicle Page C-1 696883 Service Parts Manual...
  • Page 19 BODY THE USE OF NON U.L. PARTS WILL VOID ANY U.L. LISTING. When ordering parts, please specify the model and serial number of the product. * Indicates a component that is not available as an individual part. *** Indicates consult Customer Service Department for additional information. ITEM PART NO.
  • Page 20 BODY Front of Vehicle Instrument Panel Assembly includes items 8 - 16 Instrument Panel Assembly with Ball Deflector includes items 9 - 13 Page C-3 696883 Service Parts Manual...
  • Page 21 BODY THE USE OF NON U.L. PARTS WILL VOID ANY U.L. LISTING. When ordering parts, please specify the model and serial number of the product. * Indicates a component that is not available as an individual part. *** Indicates consult Customer Service Department for additional information. ITEM PART NO.
  • Page 22 BODY Front of Vehicle Front of Vehicle Page C-5 696883 Service Parts Manual...
  • Page 23 BODY THE USE OF NON U.L. PARTS WILL VOID ANY U.L. LISTING. When ordering parts, please specify the model and serial number of the product. * Indicates a component that is not available as an individual part. *** Indicates consult Customer Service Department for additional information. ITEM PART NO.
  • Page 24 BODY Front of Vehicle Front of Vehicle Rear Bumper Installation Page C-7 696883 Service Parts Manual...
  • Page 25 BODY THE USE OF NON U.L. PARTS WILL VOID ANY U.L. LISTING. When ordering parts, please specify the model and serial number of the product. * Indicates a component that is not available as an individual part. *** Indicates consult Customer Service Department for additional information. ITEM PART NO.

  • Page 26: Body

    BODY Frame Front of Vehicle 696883 Service Parts Manual Page C-9...
  • Page 27 BODY THE USE OF NON U.L. PARTS WILL VOID ANY U.L. LISTING. When ordering parts, please specify the model and serial number of the product. * Indicates a component that is not available as an individual part. *** Indicates consult Customer Service Department for additional information. ITEM PART NO.
  • Page 28 BODY Notes: Page C-11 696883 Service Parts Manual...
  • Page 29 BODY Notes: 696883 Service Parts Manual Page C-12...

  • Page 30: Brakes

    BRAKES Brake Pedal Assembly (With Brake Lights) includes items 2 - 28 WHITE BLACK Page D-1 696883 Service Parts Manual...
  • Page 31 BRAKES THE USE OF NON U.L. PARTS WILL VOID ANY U.L. LISTING. When ordering parts, please specify the model and serial number of the product. * Indicates a component that is not available as an individual part. *** Indicates consult Customer Service Department for additional information. ITEM PART NO.
  • Page 32 BRAKES Compensator Assembly includes items 37 - 49 Front of Vehicle Part of Frame Accelerator Pedal Page D-3 696883 Service Parts Manual...
  • Page 33 BRAKES THE USE OF NON U.L. PARTS WILL VOID ANY U.L. LISTING. When ordering parts, please specify the model and serial number of the product. * Indicates a component that is not available as an individual part. *** Indicates consult Customer Service Department for additional information. ITEM PART NO.
  • Page 34 BRAKES THE USE OF NON U.L. PARTS WILL VOID ANY U.L. LISTING. When ordering parts, please specify the model and serial number of the product. * Indicates a component that is not available as an individual part. *** Indicates consult Customer Service Department for additional information. ITEM PART NO.
  • Page 35 BRAKES Notes: Page D-6 696883 Service Parts Manual...
  • Page 36 BRAKES Brake Assembly (Driver Side) includes items 3 - 9 Brake Assembly (Passenger Side) includes items 3 - 8, 10 Brake Drum Assembly includes items 17, 18 Adjuster Assembly Front of Vehicle Tension Pin Page D-7 696883 Service Parts Manual...
  • Page 37 BRAKES THE USE OF NON U.L. PARTS WILL VOID ANY U.L. LISTING. When ordering parts, please specify the model and serial number of the product. * Indicates a component that is not available as an individual part. *** Indicates consult Customer Service Department for additional information. ITEM PART NO.
  • Page 38 BRAKES Notes: Page D-9 696883 Service Parts Manual...
  • Page 39 BRAKES Notes: Page D-10 696883 Service Parts Manual...

  • Page 40: Electrical

    ELECTRICAL Note: FRAME SHOWN PARTIALLY Page E-1 696883 Service Parts Manual...
  • Page 41 ELECTRICAL THE USE OF NON U.L. PARTS WILL VOID ANY U.L. LISTING. When ordering parts, please specify the model and serial number of the product. * Indicates a component that is not available as an individual part. *** Indicates consult Customer Service Department for additional information. ITEM PART NO.
  • Page 42 ELECTRICAL ADVANCED BATTERY 2 MODULE Front of Vehicle Frame Page E-3 696883 Service Parts Manual...
  • Page 43 ELECTRICAL THE USE OF NON U.L. PARTS WILL VOID ANY U.L. LISTING. When ordering parts, please specify the model and serial number of the product. * Indicates a component that is not available as an individual part. *** Indicates consult Customer Service Department for additional information. ITEM PART NO.
  • Page 44 ELECTRICAL ADVANCED BATTERY 2 MODULE Front of Vehicle Battery Pack Page E-5 696883 Service Parts Manual...
  • Page 45 ELECTRICAL THE USE OF NON U.L. PARTS WILL VOID ANY U.L. LISTING. When ordering parts, please specify the model and serial number of the product. * Indicates a component that is not available as an individual part. *** Indicates consult Customer Service Department for additional information. ITEM PART NO.
  • Page 46 ELECTRICAL DC - DC Converter Assembly includes items 5 - 7 Seat Wrap Rear Fender Front of Vehicle Front of Vehicle To Battery Control Panel Assembly includes items 13 - 17 14 25 Page E-7 696883 Service Parts Manual...
  • Page 47 ELECTRICAL THE USE OF NON U.L. PARTS WILL VOID ANY U.L. LISTING. When ordering parts, please specify the model and serial number of the product. * Indicates a component that is not available as an individual part. *** Indicates consult Customer Service Department for additional information. ITEM PART NO.
  • Page 48 ELECTRICAL LED Headlight Assembly (Driver Side) includes item 3 LED Headlight Assembly (Passenger Side) includes item 3 Front of Vehicle Headlight Assembly Inside of Cowl Front of Vehicle HOUR METER Taillight Assembly, (Driver Side) includes items 24, 26 - 28 Taillight Assembly, (Passenger Side) includes items 25 - 28 Controller...
  • Page 49 ELECTRICAL THE USE OF NON U.L. PARTS WILL VOID ANY U.L. LISTING. When ordering parts, please specify the model and serial number of the product. * Indicates a component that is not available as an individual part. *** Indicates consult Customer Service Department for additional information. ITEM PART NO.
  • Page 50 ELECTRICAL Notes: Page E-11 696883 Service Parts Manual...
  • Page 51 ELECTRICAL Notes: 696883 Service Parts Manual Page E-12...

  • Page 52: Electronic Speed Control

    ELECTRONIC SPEED CONTROL Controller Assembly includes items 2 - 13 Front of Vehicle Part of Solenoid Page F-1 696883 Service Parts Manual...
  • Page 53 ELECTRONIC SPEED CONTROL THE USE OF NON U.L. PARTS WILL VOID ANY U.L. LISTING. When ordering parts, please specify the model and serial number of the product. * Indicates a component that is not available as an individual part. *** Indicates consult Customer Service Department for additional information. ITEM PART NO.
  • Page 54 ELECTRONIC SPEED CONTROL Notes: Page F-3 696883 Service Parts Manual...
  • Page 55 ELECTRONIC SPEED CONTROL Notes: 696883 Service Parts Manual Page F-4...

  • Page 56: Front Suspension And Steering

    FRONT SUSPENSION AND STEERING Front of Vehicle Part of Frame *NOTE: Tie Rod Not Shown for Clarity Spindle and Hub Assembly (Passenger Side) includes items 3 - 12 Spindle and Hub Assembly (Driver Side) includes items 4 - 12, 14 Page G-1 696883 Service Parts Manual...
  • Page 57 FRONT SUSPENSION AND STEERING THE USE OF NON U.L. PARTS WILL VOID ANY U.L. LISTING. When ordering parts, please specify the model and serial number of the product. * Indicates a component that is not available as an individual part. *** Indicates consult Customer Service Department for additional information.
  • Page 58 FRONT SUSPENSION AND STEERING Steering Column Assembly includes items 6 - 16 Tie Rod Assembly includes items 20 - 24 Front of Vehicle Page G-3 696883 Service Parts Manual...
  • Page 59 FRONT SUSPENSION AND STEERING THE USE OF NON U.L. PARTS WILL VOID ANY U.L. LISTING. When ordering parts, please specify the model and serial number of the product. * Indicates a component that is not available as an individual part. *** Indicates consult Customer Service Department for additional information.
  • Page 60 FRONT SUSPENSION AND STEERING THE USE OF NON U.L. PARTS WILL VOID ANY U.L. LISTING. When ordering parts, please specify the model and serial number of the product. * Indicates a component that is not available as an individual part. *** Indicates consult Customer Service Department for additional information.
  • Page 61 FRONT SUSPENSION AND STEERING Notes: 696883 Service Parts Manual Page G-6...
  • Page 62 FRONT SUSPENSION AND STEERING Rack and Pinion Unit includes items 2 - 23 Tie Rod End (Outer) includes items 24 - 25 Page G-7 696883 Service Parts Manual...
  • Page 63 FRONT SUSPENSION AND STEERING THE USE OF NON U.L. PARTS WILL VOID ANY U.L. LISTING. When ordering parts, please specify the model and serial number of the product. * Indicates a component that is not available as an individual part. *** Indicates consult Customer Service Department for additional information.
  • Page 64 FRONT SUSPENSION AND STEERING Notes: Page G-9 696883 Service Parts Manual...
  • Page 65 FRONT SUSPENSION AND STEERING Notes: 696883 Service Parts Manual Page G-10...

  • Page 66: Motor

    MOTOR Axle Assembly Front of Vehicle Page H-1 696883 Service Parts Manual...
  • Page 67 MOTOR THE USE OF NON U.L. PARTS WILL VOID ANY U.L. LISTING. When ordering parts, please specify the model and serial number of the product. * Indicates a component that is not available as an individual part. *** Indicates consult Customer Service Department for additional information. ITEM PART NO.
  • Page 68 MOTOR Notes: Page H-3 696883 Service Parts Manual...
  • Page 69 MOTOR Notes: 696883 Service Parts Manual Page H-4...

  • Page 70: Rear Axle

    REAR AXLE Front of Vehicle Rear Axle, 16.99:1 includes items 4 - 37 Page J-1 696883 Service Parts Manual...
  • Page 71 REAR AXLE THE USE OF NON U.L. PARTS WILL VOID ANY U.L. LISTING. When ordering parts, please specify the model and serial number of the product. * Indicates a component that is not available as an individual part. *** Indicates consult Customer Service Department for additional information. ITEM PART NO.
  • Page 72 REAR AXLE THE USE OF NON U.L. PARTS WILL VOID ANY U.L. LISTING. When ordering parts, please specify the model and serial number of the product. * Indicates a component that is not available as an individual part. *** Indicates consult Customer Service Department for additional information. ITEM PART NO.
  • Page 73 REAR AXLE Notes: 696883 Service Parts Manual Page J-4...

  • Page 74: Rear Suspension

    REAR SUSPENSION Front of Vehicle Page K-1 696883 Service Parts Manual...
  • Page 75 REAR SUSPENSION THE USE OF NON U.L. PARTS WILL VOID ANY U.L. LISTING. When ordering parts, please specify the model and serial number of the product. * Indicates a component that is not available as an individual part. *** Indicates consult Customer Service Department for additional information. ITEM PART NO.
  • Page 76 REAR SUSPENSION Notes: Page K-3 696883 Service Parts Manual...
  • Page 77 REAR SUSPENSION Notes: Page K-4 696883 Service Parts Manual...
  • Page 78 SEATING Seat Back Assembly includes items 2 - 9 Seat Back Assembly includes items 5 - 9 Front of Vehicle Seat Bottom Assembly includes items 17 - 26 Front of Vehicle Flip Seat Bottom Assembly includes items 31 - 38 Seat Bottom Assembly includes items 33 - 35 Front of Vehicle Page L-1...
  • Page 79 SEATING THE USE OF NON U.L. PARTS WILL VOID ANY U.L. LISTING. When ordering parts, please specify the model and serial number of the product. * Indicates a component that is not available as an individual part. *** Indicates consult Customer Service Department for additional information. ITEM PART NO.

  • Page 80: Seating

    SEATING THE USE OF NON U.L. PARTS WILL VOID ANY U.L. LISTING. When ordering parts, please specify the model and serial number of the product. * Indicates a component that is not available as an individual part. *** Indicates consult Customer Service Department for additional information. ITEM PART NO.
  • Page 81 SEATING Notes: 696883 Service Parts Manual Page L-4...
  • Page 82 SEATING Rear Flip Seat Handrail Kit includes items 32 - 37 Flip Seat Bottom Assembly Front of Vehicle Page L-5 696883 Service Parts Manual...
  • Page 83 SEATING THE USE OF NON U.L. PARTS WILL VOID ANY U.L. LISTING. When ordering parts, please specify the model and serial number of the product. * Indicates a component that is not available as an individual part. *** Indicates consult Customer Service Department for additional information. ITEM PART NO.
  • Page 84 SEATING THE USE OF NON U.L. PARTS WILL VOID ANY U.L. LISTING. When ordering parts, please specify the model and serial number of the product. * Indicates a component that is not available as an individual part. *** Indicates consult Customer Service Department for additional information. ITEM PART NO.
  • Page 85 SEATING Notes: 696883 Service Parts Manual Page L-8...

  • Page 86: Weather Protection

    WEATHER PROTECTION Front of Vehicle DETAIL D (REAR) Sun Top Kit (Black) includes items 2 - 29 (Passenger Side Shown) Front of Vehicle DETAIL A DETAIL B (Driver Side Shown) (Outside Tubing On Sun Top) Front of Vehicle DETAIL C (FRONT) 696883 Service Parts Manual Page N-1...
  • Page 87 WEATHER PROTECTION THE USE OF NON U.L. PARTS WILL VOID ANY U.L. LISTING. When ordering parts, please specify the model and serial number of the product. * Indicates a component that is not available as an individual part. *** Indicates consult Customer Service Department for additional information. ITEM PART NO.
  • Page 88 WEATHER PROTECTION Notes: 696883 Service Parts Manual Page N-3...
  • Page 89 WEATHER PROTECTION Notes: 696883 Service Parts Manual Page N-4...
  • Page 90 WEATHER PROTECTION Windshield Retainer Rubber Latch Strut Front of Vehicle Split Windshield Kit (Clear) includes items 2 - 8 Hardware Kit includes items 3 - 7 Page N-5 696883 Service Parts Manual...
  • Page 91 WEATHER PROTECTION THE USE OF NON U.L. PARTS WILL VOID ANY U.L. LISTING. When ordering parts, please specify the model and serial number of the product. * Indicates a component that is not available as an individual part. *** Indicates consult Customer Service Department for additional information. ITEM PART NO.
  • Page 92 WEATHER PROTECTION Notes: Page N-7 696883 Service Parts Manual...
  • Page 93 WEATHER PROTECTION Notes: 696883 Service Parts Manual Page N-8...

  • Page 94: Wheels And Tires

    WHEELS AND TIRES Wheel and Tire design may vary by Part Number Page N-1 696883 Service Parts Manual...
  • Page 95 WHEELS AND TIRES THE USE OF NON U.L. PARTS WILL VOID ANY U.L. LISTING. When ordering parts, please specify the model and serial number of the product. * Indicates a component that is not available as an individual part. *** Indicates consult Customer Service Department for additional information. ITEM PART NO.
  • Page 96 WHEELS AND TIRES Notes: Page N-3 696883 Service Parts Manual...
  • Page 97 WHEELS AND TIRES Notes: 696883 Service Parts Manual Page N-4...

  • Page 98: Decals And Labels

    DECALS AND LABELS WARNING Failure to follow these instructions can result in SERIOUS INJURY or DEATH The vehicle is not a toy; always drive responsibly. Driver must possess valid driver’s license. Never drive on public roads except where allowed by law. Never drive vehicle under influence of drugs or alcohol. Do not start moving until all occupants are seated and holding on. Keep entire body inside the moving vehicle.
  • Page 99 DECALS AND LABELS THE USE OF NON U.L. PARTS WILL VOID ANY U.L. LISTING. When ordering parts, please specify the model and serial number of the product. * Indicates a component that is not available as an individual part. *** Indicates consult Customer Service Department for additional information. ITEM PART NO.
  • Page 100 DECALS AND LABELS Notes: 696883 Service Parts Manual Page P-3...
  • Page 101 DECALS AND LABELS Notes: 696883 Service Parts Manual Page P-4...
  • Page 102 MANUFACTURER INFORMATION Textron Specialized Vehicles, Inc. 1451 Marvin Griffin Road. Augusta, Georgia, USA 30906-3852 Dealer: 800-296-4804 Consumer: 877-394-6727 Owner’s Guides and Repair Manuals are available from the manufacturer. Copyrighted Material This manual may not be reproduced in whole or in part without the express permission of the manufacturer.
