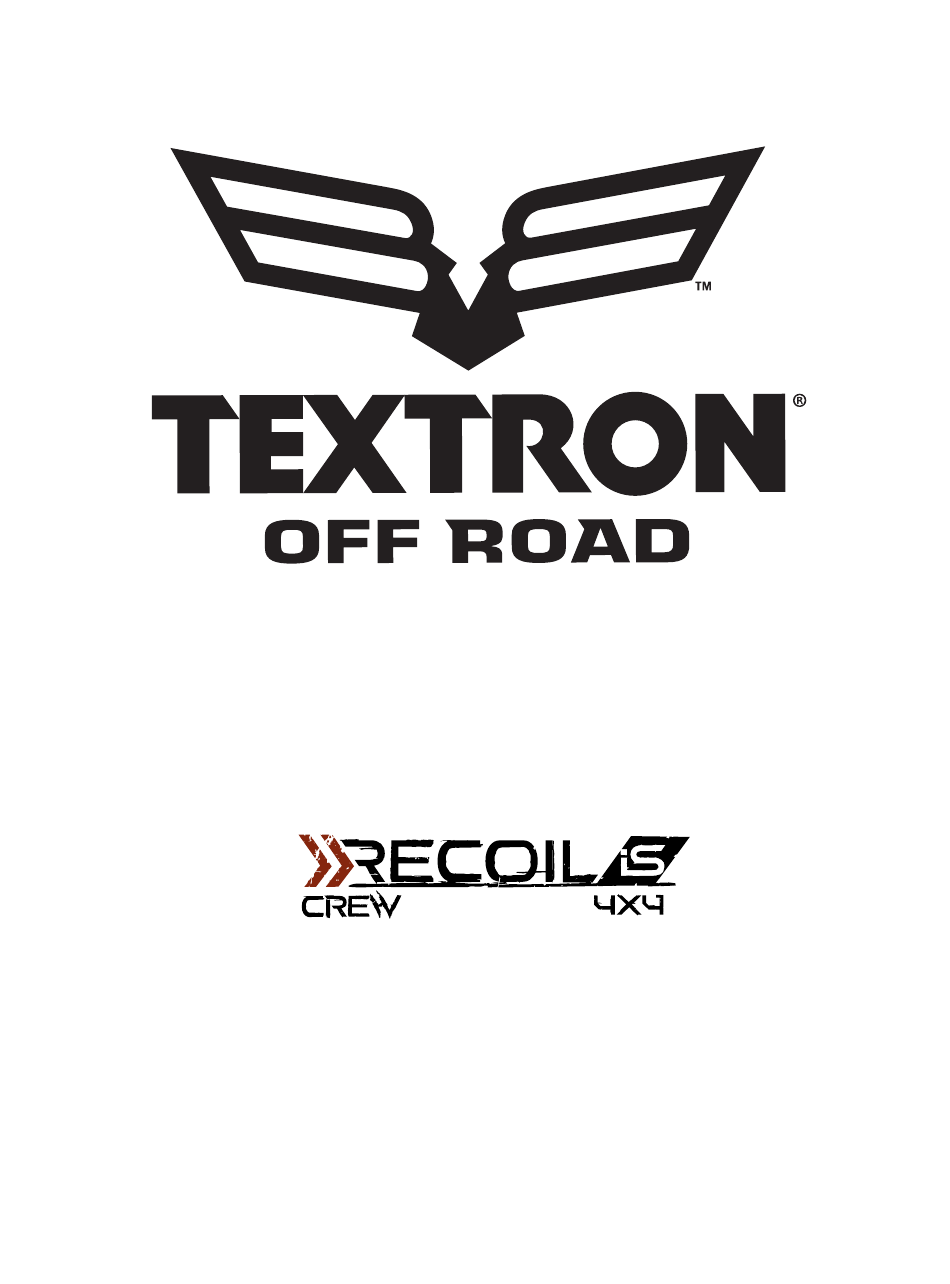

Textron Off Road RECOIL iS CREW Service & Parts Manual

72v electric powered vehicles
Hide thumbs
Table of Contents

Advertisement

Quick Links

SERVICE PARTS MANUAL
640774-V
ISSUED DECEMBER 2014
REVISED SEP 2017

Advertisement

Table of Contents
loading

Related Manuals for Textron Off Road RECOIL iS CREW

Summary of Contents for Textron Off Road RECOIL iS CREW

  • Page 1 SERVICE PARTS MANUAL 640774-V ISSUED DECEMBER 2014 REVISED SEP 2017...
  • Page 3 SERVICE PARTS MANUAL 72V ELECTRIC POWERED VEHICLES RECOIL iS CREW STARTING MODEL YEAR 2015 CALIFORNIA Proposition 65 Warning WARNING: Motor vehicles may contain fuels, oils and fluids, battery posts, terminals, and related accessories which contain lead and lead compounds and other chemicals identified by the State of California to potentially cause can- cer, birth defects, and other reproductive harm.
  • Page 4 NOTES This vehicle has been designed and manufactured in the United States of America (USA). The Standards and Specifications listed in the following text originate in the USA unless otherwise indicated. The use of non Original Equipment Manufacturer (OEM) approved parts may void the warranty.

  • Page 5: Table Of Contents

    TABLE OF CONTENTS SECTION Page No. HOW TO USE THE SERVICE PARTS MANUAL ......................v ACCELERATOR ..............................A - 1 BATTERY SYSTEM.............................B - 1 BODY ...................................C - 1 BRAKES ................................D - 1 DIFFERENTIAL LOCK............................E - 1 ELECTRICAL SYSTEM ............................F - 1 FRONT AXLE &...
  • Page 6 NOTES Page iv 640774 Service Parts Manual...

  • Page 7: How To Use The Service Parts Manual

    HOW TO USE THE SERVICE PARTS MANUAL This manual is divided into several sections: • GENERAL INFORMATION • ILLUSTRATED PARTS BREAKDOWN • APPENDIX The first section, GENERAL INFORMATION, contains the following information: • WARRANTY INFORMATION • GENERAL INDEX • HOW TO USE THE SERVICE PARTS MANUAL The second section, ILLUSTRATED PARTS BREAKDOWN, contains illustrations and parts lists for all systems of your vehicle.
  • Page 8 HOW TO USE THE SERVICE PARTS MANUAL Title Title *See Body Section for decal information 102,104 Front of Vehicle 83,88 81,86 84,89 82,87 128 129 Left hand illustration page Parts list (continued on rear of page if required) 1. WHEN THE PART NUMBER IS NOT KNOWN •...
  • Page 9 HOW TO USE THE SERVICE PARTS MANUAL 3. COLOR CODE FOR BODY COMPONENTS The last two digits of the part number for the body part will denote the color code. Locate the part number for the cowl, rear body, seat pod, side panel or seat wrap then locate your color in the list below. Replace the last ** or XX with the two digit color code.

  • Page 10: Accelerator

    ACCELERATOR Front of Vehicle Service Parts Manual Page A-1 640774 Service Parts Manual...
  • Page 11 ACCELERATOR THE USE OF NON U.L. PARTS WILL VOID ANY U.L. LISTING. When ordering parts, please specify the model and serial number of the product. * Indicates a component that is not available as an individual part. *** Indicates consult Customer Service Department for additional information. ITEM PART NO.
  • Page 12 ACCELERATOR Notes: Service Parts Manual Page A-3 640774 Service Parts Manual...
  • Page 13 ACCELERATOR Notes: Service Parts Manual Page A-4 Service Parts Manual 640774 Service Parts Manual...

  • Page 14: Battery System

    BATTERY SYSTEM Front of Vehicle Service Parts Manual Page B-1 640774 Service Parts Manual...
  • Page 15 BATTERY SYSTEM THE USE OF NON U.L. PARTS WILL VOID ANY U.L. LISTING. When ordering parts, please specify the model and serial number of the product. * Indicates a component that is not available as an individual part. *** Indicates consult Customer Service Department for additional information. ITEM PART NO.
  • Page 16 BATTERY SYSTEM RECYCLE 640561 Front of Vehicle Service Parts Manual Page B-3 640774 Service Parts Manual...
  • Page 17 BATTERY SYSTEM THE USE OF NON U.L. PARTS WILL VOID ANY U.L. LISTING. When ordering parts, please specify the model and serial number of the product. * Indicates a component that is not available as an individual part. *** Indicates consult Customer Service Department for additional information. ITEM PART NO.
  • Page 18 BATTERY SYSTEM CHARGER CORD KIT includes item 9 Service Parts Manual Page B-5 640774 Service Parts Manual...
  • Page 19 BATTERY SYSTEM THE USE OF NON U.L. PARTS WILL VOID ANY U.L. LISTING. When ordering parts, please specify the model and serial number of the product. * Indicates a component that is not available as an individual part. *** Indicates consult Customer Service Department for additional information. ITEM PART NO.
  • Page 20 BATTERY SYSTEM Notes: Service Parts Manual Page B-7 640774 Service Parts Manual...
  • Page 21 BATTERY SYSTEM Notes: Service Parts Manual Page B-8 Service Parts Manual 640774 Service Parts Manual...
  • Page 22 BODY - FRONT INSTRUMENT PANEL ASSEMBLY includes items 10 - 12 Front of Vehicle MIN 150 cm 59 inches www.textronoffroad.com 665091 DASH ASSEMBLY includes items 15 - 19 Service Parts Manual 640774 Service Parts Manual Page C-1...
  • Page 23 BODY - FRONT THE USE OF NON U.L. PARTS WILL VOID ANY U.L. LISTING. When ordering parts, please specify the model and serial number of the product. * Indicates a component that is not available as an individual part. *** Indicates consult Customer Service Department for additional information. ITEM PART NO.
  • Page 24 BODY - FRONT THE USE OF NON U.L. PARTS WILL VOID ANY U.L. LISTING. When ordering parts, please specify the model and serial number of the product. * Indicates a component that is not available as an individual part. *** Indicates consult Customer Service Department for additional information. ITEM PART NO.

  • Page 25: Body

    BODY Notes: Service Parts Manual Service Parts Manual 640774 Service Parts Manual Page C-4...
  • Page 26 BODY - MID Front of Vehicle Service Parts Manual 640774 Service Parts Manual Page C-5...
  • Page 27 BODY - MID THE USE OF NON U.L. PARTS WILL VOID ANY U.L. LISTING. When ordering parts, please specify the model and serial number of the product. * Indicates a component that is not available as an individual part. *** Indicates consult Customer Service Department for additional information. ITEM PART NO.
  • Page 28 BODY - MID THE USE OF NON U.L. PARTS WILL VOID ANY U.L. LISTING. When ordering parts, please specify the model and serial number of the product. * Indicates a component that is not available as an individual part. *** Indicates consult Customer Service Department for additional information. ITEM PART NO.
  • Page 29 BODY Notes: Service Parts Manual Service Parts Manual 640774 Service Parts Manual Page C-8...
  • Page 30 BODY - MID Service Parts Manual 640774 Service Parts Manual Page C-9...
  • Page 31 BODY - MID THE USE OF NON U.L. PARTS WILL VOID ANY U.L. LISTING. When ordering parts, please specify the model and serial number of the product. * Indicates a component that is not available as an individual part. *** Indicates consult Customer Service Department for additional information. ITEM PART NO.
  • Page 32 BODY - REAR Rear Fender Flare (Passenger Side) Rear Rocker Panel (Passenger Side) Service Parts Manual 640774 Service Parts Manual Page C-11...
  • Page 33 BODY - REAR THE USE OF NON U.L. PARTS WILL VOID ANY U.L. LISTING. When ordering parts, please specify the model and serial number of the product. * Indicates a component that is not available as an individual part. *** Indicates consult Customer Service Department for additional information. ITEM PART NO.
  • Page 34 BODY - REAR THE USE OF NON U.L. PARTS WILL VOID ANY U.L. LISTING. When ordering parts, please specify the model and serial number of the product. * Indicates a component that is not available as an individual part. *** Indicates consult Customer Service Department for additional information. ITEM PART NO.
  • Page 35 BODY Notes: Service Parts Manual Service Parts Manual 640774 Service Parts Manual Page C-14...

  • Page 36: Brakes

    BRAKES Front of Vehicle Front of Vehicle Brake Caliper BRAKE PEDAL ASSEMBLY includes items 20 - 21 Front of Vehicle Service Parts Manual Page D-1 640774 Service Parts Manual...
  • Page 37 BRAKES THE USE OF NON U.L. PARTS WILL VOID ANY U.L. LISTING. When ordering parts, please specify the model and serial number of the product. * Indicates a component that is not available as an individual part. *** Indicates consult Customer Service Department for additional information. ITEM PART NO.
  • Page 38 BRAKES PARK BRAKE LEVER WITH CABLES includes items 2 - 4 Front of Vehicle Brake Caliper Front of Vehicle Service Parts Manual Page D-3 640774 Service Parts Manual...
  • Page 39 BRAKES THE USE OF NON U.L. PARTS WILL VOID ANY U.L. LISTING. When ordering parts, please specify the model and serial number of the product. * Indicates a component that is not available as an individual part. *** Indicates consult Customer Service Department for additional information. ITEM PART NO.
  • Page 40 BRAKES Notes: Service Parts Manual Page D-5 640774 Service Parts Manual...
  • Page 41 BRAKES Notes: Service Parts Manual Page D-6 Service Parts Manual 640774 Service Parts Manual...

  • Page 42: Differential Lock

    DIFFERENTIAL LOCK Differential Lock Pod Differential Lock Cover Front Cable Details Rear Cable Details Service Parts Manual Page E-1 640774 Service Parts Manual...
  • Page 43 DIFFERENTIAL LOCK THE USE OF NON U.L. PARTS WILL VOID ANY U.L. LISTING. When ordering parts, please specify the model and serial number of the product. * Indicates a component that is not available as an individual part. *** Indicates consult Customer Service Department for additional information. ITEM PART NO.
  • Page 44 DIFFERENTIAL LOCK Notes: Service Parts Manual Page E-3 640774 Service Parts Manual...
  • Page 45 DIFFERENTIAL LOCK Notes: Service Parts Manual Page E-4 Service Parts Manual 640774 Service Parts Manual...

  • Page 46: Electrical System

    ELECTRICAL SYSTEM Front of Vehicle Front of Vehicle Front of Vehicle Service Parts Manual Page F-1 640774 Service Parts Manual...
  • Page 47 ELECTRICAL SYSTEM THE USE OF NON U.L. PARTS WILL VOID ANY U.L. LISTING. When ordering parts, please specify the model and serial number of the product. * Indicates a component that is not available as an individual part. *** Indicates consult Customer Service Department for additional information. ITEM PART NO.
  • Page 48 ELECTRICAL SYSTEM Front of Vehicle 3-Pin To Main Harness Inside of Cowl 10Amp LED HEADLIGHT ASSEMBLY includes item 27 LED HEADLIGHT ASSEMBLY includes item 27 Front of Vehicle Service Parts Manual Page F-3 640774 Service Parts Manual...
  • Page 49 ELECTRICAL SYSTEM THE USE OF NON U.L. PARTS WILL VOID ANY U.L. LISTING. When ordering parts, please specify the model and serial number of the product. * Indicates a component that is not available as an individual part. *** Indicates consult Customer Service Department for additional information. ITEM PART NO.
  • Page 50 ELECTRICAL SYSTEM CHARGER RECEPTACLE ASSEMBLY includes items 5 - 7 CHARGER RECEPTACLE ASSEMBLY includes items 29 - 30 (VEHICLES MANUFACTURED FROM JUNE 2015) Front of Vehicle Front of Vehicle Service Parts Manual Page F-5 640774 Service Parts Manual...
  • Page 51 ELECTRICAL SYSTEM THE USE OF NON U.L. PARTS WILL VOID ANY U.L. LISTING. When ordering parts, please specify the model and serial number of the product. * Indicates a component that is not available as an individual part. *** Indicates consult Customer Service Department for additional information. ITEM PART NO.
  • Page 52 ELECTRICAL SYSTEM DC/DC CONVERTER, 72V includes item 2 WHT Wire from control harness BLK/ORN Wire from control harness Front of Vehicle Service Parts Manual Page F-7 640774 Service Parts Manual...
  • Page 53 ELECTRICAL SYSTEM THE USE OF NON U.L. PARTS WILL VOID ANY U.L. LISTING. When ordering parts, please specify the model and serial number of the product. * Indicates a component that is not available as an individual part. *** Indicates consult Customer Service Department for additional information. ITEM PART NO.
  • Page 54 ELECTRICAL SYSTEM CONTROLLER ASSEMBLY includes items 2 - 13 Front of Vehicle Service Parts Manual Page F-9 640774 Service Parts Manual...
  • Page 55 ELECTRICAL SYSTEM THE USE OF NON U.L. PARTS WILL VOID ANY U.L. LISTING. When ordering parts, please specify the model and serial number of the product. * Indicates a component that is not available as an individual part. *** Indicates consult Customer Service Department for additional information. ITEM PART NO.
  • Page 56 ELECTRICAL SYSTEM Notes: Service Parts Manual Page F-11 640774 Service Parts Manual...
  • Page 57 ELECTRICAL SYSTEM Notes: Service Parts Manual Page F-12 Service Parts Manual 640774 Service Parts Manual...
  • Page 58 FRONT AND REAR AXLE FRONT POWERTRAIN Front of Vehicle REAR POWERTRAIN Front of Vehicle Service Parts Manual Page G-1 640774 Service Parts Manual...
  • Page 59 FRONT AND REAR AXLE THE USE OF NON U.L. PARTS WILL VOID ANY U.L. LISTING. When ordering parts, please specify the model and serial number of the product. * Indicates a component that is not available as an individual part. *** Indicates consult Customer Service Department for additional information.
  • Page 60 FRONT AND REAR AXLE INDEPENDENT DIFFERENTIAL includes items 2 - 22 INDEPENDENT DIFFERENTIAL LOCKING includes items 2 - 22, 25 - 30 Service Parts Manual Page G-3 640774 Service Parts Manual...
  • Page 61 FRONT AND REAR AXLE THE USE OF NON U.L. PARTS WILL VOID ANY U.L. LISTING. When ordering parts, please specify the model and serial number of the product. * Indicates a component that is not available as an individual part. *** Indicates consult Customer Service Department for additional information.
  • Page 62 FRONT AND REAR AXLE Notes: Service Parts Manual Page G-5 640774 Service Parts Manual...
  • Page 63 FRONT AND REAR AXLE Notes: Service Parts Manual Page G-6 Service Parts Manual 640774 Service Parts Manual...

  • Page 64: Front Suspension And Steering

    FRONT SUSPENSION AND STEERING Steering Arm Service Parts Manual 640774 Service Parts Manual Page H-1...
  • Page 65 FRONT SUSPENSION AND STEERING THE USE OF NON U.L. PARTS WILL VOID ANY U.L. LISTING. When ordering parts, please specify the model and serial number of the product. * Indicates a component that is not available as an individual part. *** Indicates consult Customer Service Department for additional information.
  • Page 66 FRONT SUSPENSION AND STEERING FRONT STRUT ASSEMBLY (DRIVER SIDE) includes items 3 - 22, 39 FRONT STRUT ASSEMBLY (PASSENGER SIDE) includes items 3 - 22, 41 STRUT/BEARING ASSEMBLY (DRIVER SIDE) includes items 40, 43 & 44 STRUT/BEARING ASSEMBLY Part of (PASSENGER SIDE) includes items 42 - 44 Frame Control Arm...
  • Page 67 FRONT SUSPENSION AND STEERING THE USE OF NON U.L. PARTS WILL VOID ANY U.L. LISTING. When ordering parts, please specify the model and serial number of the product. * Indicates a component that is not available as an individual part. *** Indicates consult Customer Service Department for additional information.
  • Page 68 FRONT SUSPENSION AND STEERING THE USE OF NON U.L. PARTS WILL VOID ANY U.L. LISTING. When ordering parts, please specify the model and serial number of the product. * Indicates a component that is not available as an individual part. *** Indicates consult Customer Service Department for additional information.
  • Page 69 FRONT SUSPENSION AND STEERING Notes: Service Parts Manual Service Parts Manual 640774 Service Parts Manual Page H-6...
  • Page 70 FRONT SUSPENSION AND STEERING UNIVERSAL JOINT ASSEMBLY includes items 13 - 19 Service Parts Manual 640774 Service Parts Manual Page H-7...
  • Page 71 FRONT SUSPENSION AND STEERING THE USE OF NON U.L. PARTS WILL VOID ANY U.L. LISTING. When ordering parts, please specify the model and serial number of the product. * Indicates a component that is not available as an individual part. *** Indicates consult Customer Service Department for additional information.
  • Page 72 FRONT SUSPENSION AND STEERING Notes: Service Parts Manual 640774 Service Parts Manual Page H-9...
  • Page 73 FRONT SUSPENSION AND STEERING Notes: Service Parts Manual Service Parts Manual 640774 Service Parts Manual Page H-10...

  • Page 74: Motor

    MOTOR SPEED SENSOR KIT includes items 7 - 8 Service Parts Manual Page J-1 640774 Service Parts Manual...
  • Page 75 MOTOR THE USE OF NON U.L. PARTS WILL VOID ANY U.L. LISTING. When ordering parts, please specify the model and serial number of the product. * Indicates a component that is not available as an individual part. *** Indicates consult Customer Service Department for additional information. ITEM PART NO.
  • Page 76 MOTOR Notes: Service Parts Manual Page J-3 640774 Service Parts Manual...
  • Page 77 MOTOR Notes: Service Parts Manual Page J-4 Service Parts Manual 640774 Service Parts Manual...

  • Page 78: Operator Protection System (Ops)

    OPERATOR PROTECTION SYSTEM Front of Vehicle FRONT BUMPER WELDMENT includes item 15 Front of Vehicle Service Parts Manual 640774 Service Parts Manual Page K-1...
  • Page 79 OPERATOR PROTECTION SYSTEM THE USE OF NON U.L. PARTS WILL VOID ANY U.L. LISTING. When ordering parts, please specify the model and serial number of the product. * Indicates a component that is not available as an individual part. *** Indicates consult Customer Service Department for additional information. ITEM PART NO.
  • Page 80 OPERATOR PROTECTION SYSTEM Front of Vehicle Seat Back Assembly Front of Vehicle Service Parts Manual 640774 Service Parts Manual Page K-3...
  • Page 81 OPERATOR PROTECTION SYSTEM THE USE OF NON U.L. PARTS WILL VOID ANY U.L. LISTING. When ordering parts, please specify the model and serial number of the product. * Indicates a component that is not available as an individual part. *** Indicates consult Customer Service Department for additional information. ITEM PART NO.
  • Page 82 OPERATOR PROTECTION SYSTEM OPS UPPER KIT includes items 2 - 10 OPS HARDWARE KIT includes items 11 - 14 Service Parts Manual 640774 Service Parts Manual Page K-5...
  • Page 83 OPERATOR PROTECTION SYSTEM THE USE OF NON U.L. PARTS WILL VOID ANY U.L. LISTING. When ordering parts, please specify the model and serial number of the product. * Indicates a component that is not available as an individual part. *** Indicates consult Customer Service Department for additional information. ITEM PART NO.
  • Page 84 OPERATOR PROTECTION SYSTEM OPS ACCESSORIES KIT includes items 2 - 13 OPS ACCESSORY HARDWARE KIT includes items 14 - 19 Front of Vehicle Front of Vehicle Rear Upper OPS Front Upper OPS Service Parts Manual 640774 Service Parts Manual Page K-7...
  • Page 85 OPERATOR PROTECTION SYSTEM THE USE OF NON U.L. PARTS WILL VOID ANY U.L. LISTING. When ordering parts, please specify the model and serial number of the product. * Indicates a component that is not available as an individual part. *** Indicates consult Customer Service Department for additional information. ITEM PART NO.
  • Page 86 OPERATOR PROTECTION SYSTEM Notes: Service Parts Manual 640774 Service Parts Manual Page K-9...
  • Page 87 OPERATOR PROTECTION SYSTEM Notes: Service Parts Manual Service Parts Manual 640774 Service Parts Manual Page K-10...
  • Page 88 REAR SUSPENSION REAR STRUT ASSEMBLY (DRIVER SIDE) includes items 3 - 29, 39 REAR STRUT ASSEMBLY (PASSENGER SIDE) includes items 3 - 26, 30, 41 STRUT/BEARING ASSEMBLY (DRIVER SIDE) includes items 40, 43 & 44 STRUT/BEARING ASSEMBLY (PASSENGER SIDE) includes items 42 - 44 Part of Frame Service Parts Manual Page L-1...
  • Page 89 REAR SUSPENSION THE USE OF NON U.L. PARTS WILL VOID ANY U.L. LISTING. When ordering parts, please specify the model and serial number of the product. * Indicates a component that is not available as an individual part. *** Indicates consult Customer Service Department for additional information. ITEM PART NO.

  • Page 90: Rear Suspension

    REAR SUSPENSION THE USE OF NON U.L. PARTS WILL VOID ANY U.L. LISTING. When ordering parts, please specify the model and serial number of the product. * Indicates a component that is not available as an individual part. *** Indicates consult Customer Service Department for additional information. ITEM PART NO.
  • Page 91 REAR SUSPENSION Notes: Service Parts Manual Page L-4 Service Parts Manual 640774 Service Parts Manual...
  • Page 92 REAR SUSPENSION Service Parts Manual Page L-5 640774 Service Parts Manual...
  • Page 93 REAR SUSPENSION THE USE OF NON U.L. PARTS WILL VOID ANY U.L. LISTING. When ordering parts, please specify the model and serial number of the product. * Indicates a component that is not available as an individual part. *** Indicates consult Customer Service Department for additional information. ITEM PART NO.
  • Page 94 REAR SUSPENSION Notes: Service Parts Manual Page L-7 640774 Service Parts Manual...
  • Page 95 REAR SUSPENSION Notes: Service Parts Manual Page L-8 Service Parts Manual 640774 Service Parts Manual...
  • Page 96 SEATING Front of Vehicle SEAT BOTTOM ASSEMBLY (BLACK) includes items 2 - 9 SEAT BOTTOM (BLACK) includes items 3 - 4 SEAT BACK ASSEMBLY (BLACK) includes items 13 - 18 SEAT BACK (BLACK) includes items 14 - 15 Front of Vehicle Service Parts Manual Page M-1 640774 Service Parts Manual...
  • Page 97 SEATING THE USE OF NON U.L. PARTS WILL VOID ANY U.L. LISTING. When ordering parts, please specify the model and serial number of the product. * Indicates a component that is not available as an individual part. *** Indicates consult Customer Service Department for additional information. ITEM PART NO.

  • Page 98: Seating

    SEATING Front of Vehicle Additional panel is for front seat only Service Parts Manual Page M-3 640774 Service Parts Manual...
  • Page 99 SEATING THE USE OF NON U.L. PARTS WILL VOID ANY U.L. LISTING. When ordering parts, please specify the model and serial number of the product. * Indicates a component that is not available as an individual part. *** Indicates consult Customer Service Department for additional information. ITEM PART NO.
  • Page 100 SEATING Notes: Service Parts Manual Page M-5 640774 Service Parts Manual...
  • Page 101 SEATING Notes: Service Parts Manual Page M-6 Service Parts Manual 640774 Service Parts Manual...

  • Page 102: Truck Bed

    TRUCK BED PLASTIC BED ASSEMBLY includes items 2 - 11 Front of Vehicle Service Parts Manual Page N-1 640774 Service Parts Manual...
  • Page 103 TRUCK BED THE USE OF NON U.L. PARTS WILL VOID ANY U.L. LISTING. When ordering parts, please specify the model and serial number of the product. * Indicates a component that is not available as an individual part. *** Indicates consult Customer Service Department for additional information. ITEM PART NO.
  • Page 104 TRUCK BED Front of Vehicle Front of Vehicle Service Parts Manual Page N-3 640774 Service Parts Manual...
  • Page 105 TRUCK BED THE USE OF NON U.L. PARTS WILL VOID ANY U.L. LISTING. When ordering parts, please specify the model and serial number of the product. * Indicates a component that is not available as an individual part. *** Indicates consult Customer Service Department for additional information. ITEM PART NO.
  • Page 106 TRUCK BED Front of Vehicle Service Parts Manual Page N-5 640774 Service Parts Manual...
  • Page 107 TRUCK BED THE USE OF NON U.L. PARTS WILL VOID ANY U.L. LISTING. When ordering parts, please specify the model and serial number of the product. * Indicates a component that is not available as an individual part. *** Indicates consult Customer Service Department for additional information. ITEM PART NO.
  • Page 108 TRUCK BED Front of Vehicle Service Parts Manual Page N-7 640774 Service Parts Manual...
  • Page 109 TRUCK BED THE USE OF NON U.L. PARTS WILL VOID ANY U.L. LISTING. When ordering parts, please specify the model and serial number of the product. * Indicates a component that is not available as an individual part. *** Indicates consult Customer Service Department for additional information. ITEM PART NO.
  • Page 110 TRUCK BED Notes: Service Parts Manual Page N-9 640774 Service Parts Manual...
  • Page 111 TRUCK BED Notes: Service Parts Manual Page N-10 Service Parts Manual 640774 Service Parts Manual...

  • Page 112: Weather Protection

    WEATHER PROTECTION WINDSHIELD KIT (FULL) includes items 2 - 14 Front of Vehicle Service Parts Manual Page P-1 640774 Service Parts Manual...
  • Page 113 WEATHER PROTECTION THE USE OF NON U.L. PARTS WILL VOID ANY U.L. LISTING. When ordering parts, please specify the model and serial number of the product. * Indicates a component that is not available as an individual part. *** Indicates consult Customer Service Department for additional information. ITEM PART NO.
  • Page 114 WEATHER PROTECTION WINDSHIELD KIT (SPLIT) includes items 2 - 21 Front of Vehicle Service Parts Manual Page P-3 640774 Service Parts Manual...
  • Page 115 WEATHER PROTECTION THE USE OF NON U.L. PARTS WILL VOID ANY U.L. LISTING. When ordering parts, please specify the model and serial number of the product. * Indicates a component that is not available as an individual part. *** Indicates consult Customer Service Department for additional information. ITEM PART NO.
  • Page 116 WEATHER PROTECTION TOP CANOPY KIT includes items 2, 3 HARDWARE KIT includes items 4 - 7 Service Parts Manual Page P-5 640774 Service Parts Manual...
  • Page 117 WEATHER PROTECTION THE USE OF NON U.L. PARTS WILL VOID ANY U.L. LISTING. When ordering parts, please specify the model and serial number of the product. * Indicates a component that is not available as an individual part. *** Indicates consult Customer Service Department for additional information. ITEM PART NO.
  • Page 118 WEATHER PROTECTION Notes: Service Parts Manual Page P-7 640774 Service Parts Manual...
  • Page 119 WEATHER PROTECTION Notes: Service Parts Manual Page P-8 Service Parts Manual 640774 Service Parts Manual...
  • Page 120 WHEELS AND TIRES LUG NUTS STYLE OF WHEELS & TIRES MAY DIFFER FROM THOSE SHOWN WHEEL CAPS WHEEL AND TIRE ASSEMBLY, FRONT (PASSENGER SIDE) includes items 3, 4 WHEEL AND TIRE ASSEMBLY, FRONT (DRIVER SIDE) includes items 3, 4 WHEEL AND TIRE ASSEMBLY, REAR (PASSENGER SIDE) includes items 7, 8 WHEEL AND TIRE ASSEMBLY, REAR (DRIVER SIDE) includes items 7, 8 WHEEL AND TIRE ASSEMBLY, FRONT (PASSENGER SIDE) includes items 15, 16 WHEEL AND TIRE ASSEMBLY, FRONT (DRIVER SIDE) includes items 15, 16...
  • Page 121 WHEELS AND TIRES THE USE OF NON U.L. PARTS WILL VOID ANY U.L. LISTING. When ordering parts, please specify the model and serial number of the product. * Indicates a component that is not available as an individual part. *** Indicates consult Customer Service Department for additional information. ITEM PART NO.

  • Page 122: Wheels And Tires

    WHEELS AND TIRES Notes: Service Parts Manual Page Q-3 640774 Service Parts Manual...
