5.2.3 - Emergency Stop Switch (Optional)

The emergency stop switch interrupts the equipment power supply of and consequently interrupts any
running chair movement. To activate the emergency stop switch, simply press it. To turn it off, simply turn it
clockwise until the button unlocks, returning to the starting position.
The emergency stop switch must be deactivated for the equipment operation.

5.2.4 - Digital Voltmeter

When the On/Off switch is turned On, the voltmeter display will show the equipment mains voltage.

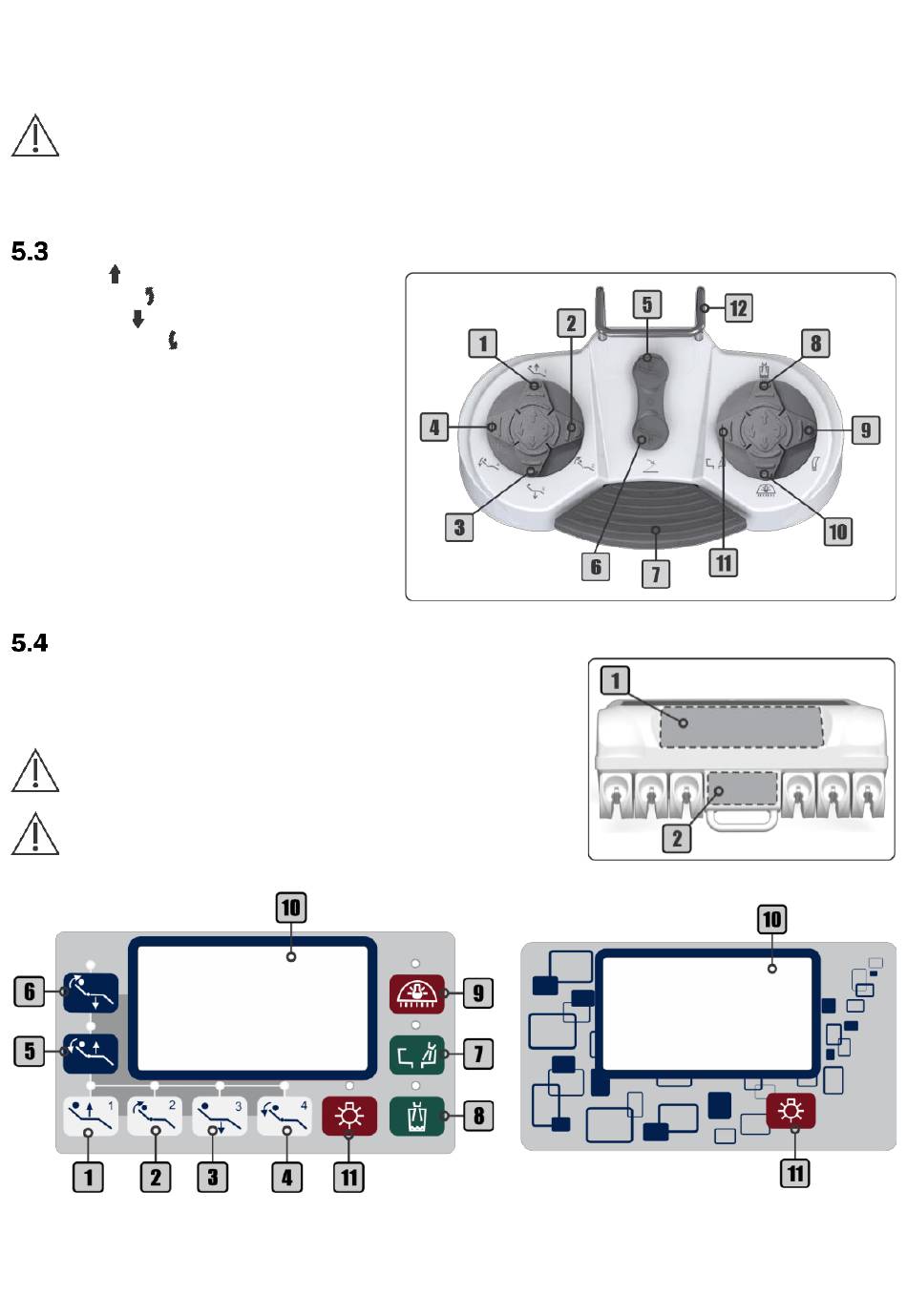

- Remote Foot Pedal Commands

1 - Seat Up ( )/Position 1
2 - Backrest Up ( )/Position 2
3 - Seat Down ( )/Position 3
4 - Backrest Down ( )/Spit Position
5 - Work Position
6 - Zero Position
7 - Propulsion/Activation Pedal
8 - Cup Filler
9 - On/Off Vórtice Saliva Ejector
10 - On/Off Operating Light
11 - Spittoon Bowl Flush
12 - Metal Handle

- Working Table

5.4.1 - Logic Working Table

1 - Command Panel
2 - Instruments Control Panel
The layout of the controls and panels may vary according to
customer order and available handpieces.
Some functions indicated on control panel may not be
available according to the equipment configuration.
Command Panel Models (1) - X-Ray Viewer:
1 - Seat Up/Position 1
2 - Backrest Up/Position 2
3 - Seat Down/Position 3
4 - Backrest Down/Spit Position
5 - Work Position
6 - Zero Position
7 - Spittoon Bowl Flush
8 - Cup Filler
8
9 - On/Off Operating Light
10 - X-Ray Viewer
11 - On/Off X-Ray Viewer
