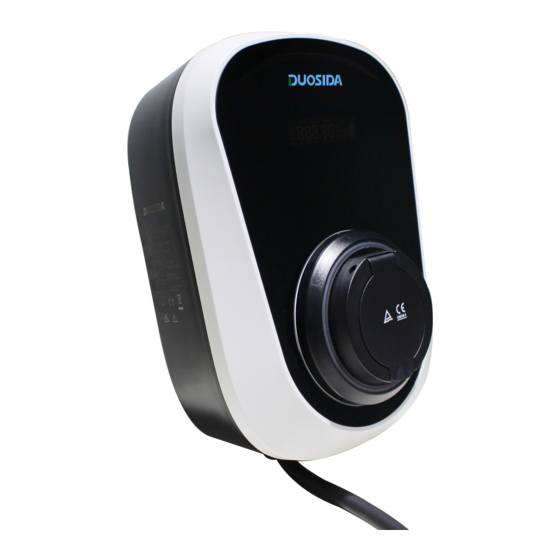

Summary of Contents for Duosida SES-32-3
- Page 1 CHARGING STATION INSTALLATION MANUAL 2020-7-22 The Fourth Edition...
-
Page 2: Table Of Contents
CONTENTS Safety first 1. Safety and user information 2. Installation requirements 3. Dos and don'ts 4. Installation notes 5. Cleaning and maintenance Introduce 1. Product information 2. Spec and dimensions 3. Drawing 4. Mounting plate 5. Expansion bolt 6. Charging pile housing 7. - Page 3 Safety first 1.Safety and user information 2.Installation requirements 3.Dos and don'ts 4.Installation notes 5.Cleaning and maintenance...
-
Page 4: Safety And User Information
1. Safety and user information Please observe all safety and user information， Relevant local regulations for operating electrical devices always apply. Indicates：Risks arising from damage to the device Risks for other users Indicates：Dangerous electrical currents, Dangers to life and limb Indicates：important information and particularities 1.Suitable for garages,carports or outdoor as well... - Page 5 1. Safety and user information Charging station should not be directly exposed to sunlight The installation site must offer protection against rain and running water or other liquids Keep away from fire to ensure personal safety The installation site must offer sufficient space We recommend that this product be installed in a place that is rainproof and sun proof, or it can be equipped with protective function.
- Page 6 1. Safety and user information The rated voltage must Charging station must be connected be observed. to a protective earth conductor 1.Ideally, the installation site should 1.Ideally, cable entry is from already provide for connection the underside of the to the electricity grid. housing base 2.Otherwise, a power supply cable 2.Above or below surface...
- Page 7 1. Safety and user information The power supply in the domestic power distribution box must be protected separately by a suitable and accurate dimension miniature circuit breaker (C characteristic) Complies with all technical safety requirements, standards and guidelines. Represents the current state of technology DC fault current detection is required by law in many countries...
-
Page 8: Installation Requirements
2..Installation requirements The installation surface The mounting substrate Minimum distances measures at least must be level and firm to other technical 262 x 222 mm installations must be (height x width) observed The installation height is The installation site must be freely be-tween 140 and 160 cm accessible (floor to bottom edge of housing) -
Page 9: Dos And Don'ts
3.Dos and don'ts The charging cable must not be The charging cable and the charging Under strain during the connector must not be driven over charging process The charging cable must not The charging cable must be coiled be kinked or twisted tightly and stored. -
Page 10: Installation Notes
4.Installation notes (De-)installation and repairs must only be carried out by a specialist electrical contractor No modifications must be made to the charging station None of the components need to be maintained by the user Different model has bit difference in size , appearance and function , The charging station can be installed by yourself according to the following installation procedure... -
Page 11: Cleaning And Maintenance
5.Cleaning and maintenance Charging station must only Maintenance must be checked be cleaned using a dry cloth regularly Cable must be checked regularly if there is any damage or aging phenomenon... -
Page 12: Introduce
Introduce 1.Product information 2.The dimensions 3.Drawing 4.Mounting plate 5.Expansion bolts 6.Charging station housing 7.Charging plug 8.Style... -
Page 13: Product Information
1.Product information... -
Page 14: Spec And Dimensions
2.The dimensions... -
Page 15: Drawing
3.Drawing Installation drawing... -
Page 16: Mounting Plate
4.Mounting plate Mounting plate Fixed behind the charging station housing Mounting plate Fixed to wall... -
Page 17: Expansion Bolt
5.Expansion bolts and screws Screws and tools for fixing charging station Hook: it is used to wind and fix charging cable... -
Page 18: Charging Pile Housing
6.Charging station body Charging station body... -
Page 19: Charging Plug
6. Charging plug V4-DSIEC2b-EV32P V4-DSIEC2e-EV32P Charging gun : Provide 16A / 32A for choosing Superior protection performance, the protection level reaches IP54 (working state) -
Page 20: Style
8.Style - wall mounted Technical specifications: Installation method: wall mounted Maximum power: 22W Communication interface: (optional) GPRS WIFI RFID Outdoor protection: Without power supply - the waterproof protection grade can reach up to IP55 With power supply-The waterproof protection grade state can reach up to IP54,under coupling state Safety regulation: Meet IEC 61851 and IEC 62196 Operating temperature:... - Page 21 8.Style - Stake Technical specifications: Installation method: stake-type mounted Maximum power: 22W Communication interface: (optional) GPRS WIFI RFID Outdoor protection: Without power supply - the waterproof protection grade can reach up to IP55 With power supply-The waterproof protection grade state can reach up to IP54,under coupling state Safety regulation: Meet IEC 61851 and IEC 62196 Operating temperature:...
-
Page 22: The Installation Procedure
The installation procedure 1. Installation tools 2. Installation process... -
Page 23: Installation Tools
1.Installation tools Electric drill Wrench adhesive tape bolt driver Pliers The knife scissors pencil screw hammer... -
Page 24: Installation Process
2.Installation process 1.First, stick the drawing on the 2.Drill holes in the four corners wall with tape to decide the with an electric drill drilling hole position 3.Knock the expansion screws in 4.Hang the mounting plate on fixed holes with hammer he screw... - Page 25 2.Installation process 5.Tighten the screw with a wrench 6.Tighten the screw with a wrench 7.Hang the main body of the 8.Tighten the anti-theft screw to charging station on the mounting ensure outdoor safety plate...
- Page 26 2.Installation process 9. Use a pencil to draw location 10.Use an electric drill to make where the hook needs to be punched holes in the drawing position 11. Drive the expansion screw in 12.Tighten the screw with a with a hammer wrench...
