Summary of Contents for Ciao Bella Quattro

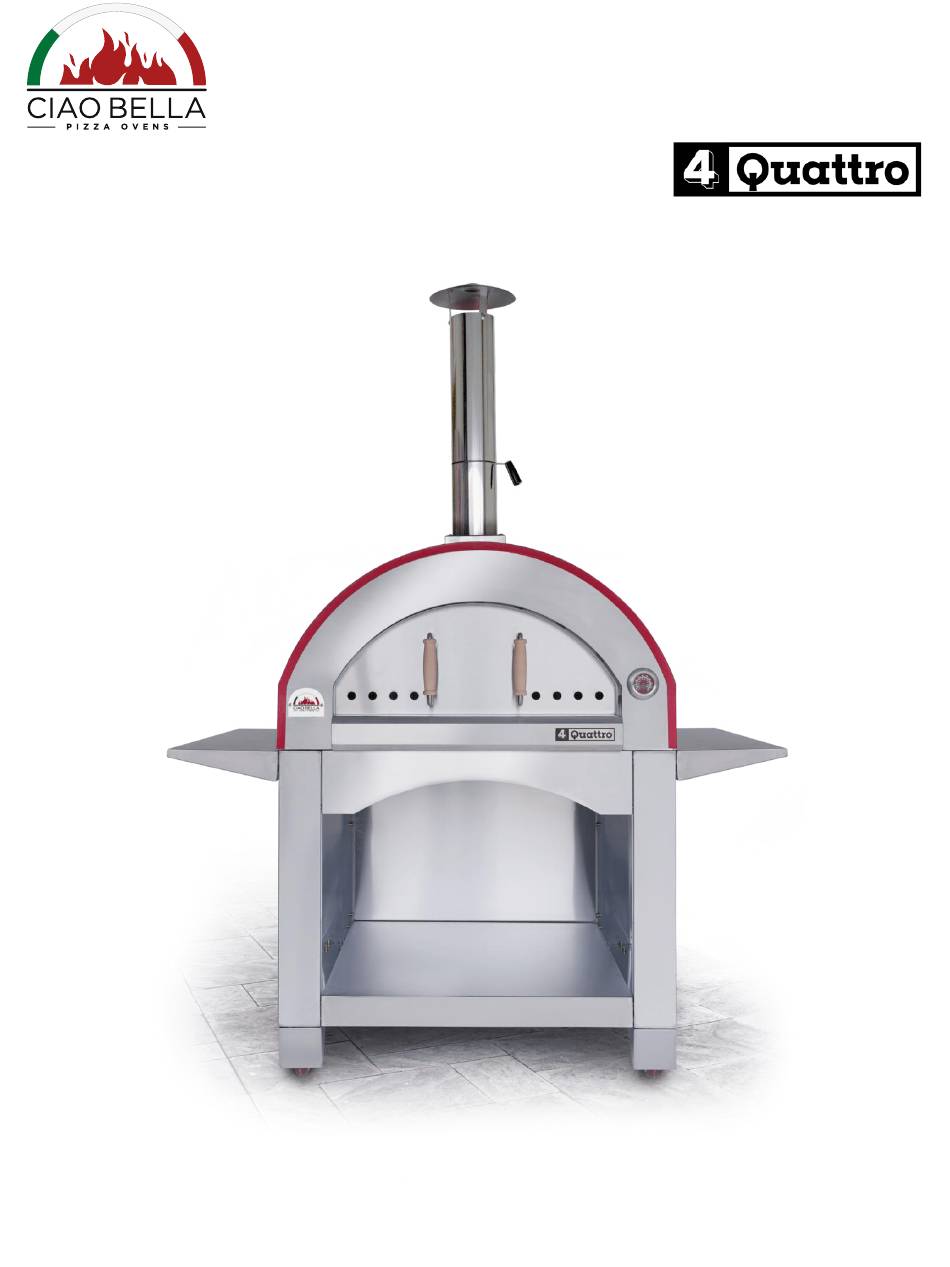

- Page 1 Owner’s Manual & User’s Guide...
- Page 2 OWNER’S MANUAL & USER’S GUIDE Explosive View & Parts List CIAOBELLAPIZZAOVENS.COM...
- Page 3 OWNER’S MANUAL & USER’S GUIDE CIAOBELLAPIZZAOVENS.COM...
- Page 4 OWNER’S MANUAL & USER’S GUIDE PLEASE READ AND FOLLOW ALL SAFETY WARNINGS AND INSTRUCTIONS IN THIS MANUAL TO AVOID PERSONAL INJURY OR PROPERTY DAMAGE. • WE WANT YOU TO ASSEMBLE AND USE YOUR OVEN AS SAFELY AS POSSIBLE. • READ ALL SAFETY WARNINGS AND INSTRUCTIONS CAREFULLY BEFORE ASSEMBLING & OPERATING YOUR OVEN. Warning •...
- Page 5 HINT #2: RECOMMENDED SETUP OF YOUR CIAO BELLA PIZZA OVEN Choose a flat, cleared assembly area. This oven is best assembled with two or more people.
- Page 6 OWNER’S MANUAL & USER’S GUIDE 3. Attach Trolley Bottom Plate 4. Attach Trolley Rear Plate (Part #12) to legs with 8x M6*12 (Part #9) to step 2 with 11x M6*12 Screws (Part #15). Screws (Part #15). 5. Attach Trolley Beam (Part #17) 6.
- Page 7 8. Put Oven Body (Part #5) onto Trolley. NOTE: A CIAO BELLA PIZZA OVEN WEIGHS OVER 300 LBS AND LIFTING IT IS A TWO TO FOUR PERSON JOB. KEEP THE OVEN UPRIGHT WHEN MOVING IT. TIPPING THE OVEN OR TURNING IT ON ITS SIDE MAY RESULT IN SIGNIFICANT DAMAGE TO THE UNIT.
- Page 8 OWNER’S MANUAL & USER’S GUIDE 9. Attach right Side Table (Part #10) as shown with 5x M6*12 Screws (Part #15). 9. Attach left Side Table (Part #10) as shown with 5x M6*12 Screws (Part #15). CIAOBELLAPIZZAOVENS.COM...
- Page 9 OWNER’S MANUAL & USER’S GUIDE 11. Attach Chimney Cover (Part #1) to top of Chimney (Part #10). Use 5x M6*12 Screws (Part #15). 12. Attach Chimney (Part #3) to the top of the oven with 4x M6*40 Screws (Part #15). NOTE: INSTALL CHIMNEY WITH HANDLE FACING THE SIDE INSTEAD OF FRONT.
-
Page 10: Do Not Over-Fire
OWNER’S MANUAL & USER’S GUIDE Preliminary Safety Messages: As this oven uses a naked flame, it is advisable to keep a well-maintained fire extinguisher close by for safety. Ensure the oven is not overloaded with firewood and that burning logs cannot roll out. DO NOT OVER-FIRE. -
Page 11: Firewood And Fuels
OWNER’S MANUAL & USER’S GUIDE ensure the oven is maintaining the desired temperature. Note: Shooting an infrared thermometer directly into the flame will give varying readings. An open oven mouth (i.e. no door covering the opening) allows extra air flow. This is useful when lighting the fire, or for boosting the fire when adding firewood. -
Page 12: Oven Clearances
OWNER’S MANUAL & USER’S GUIDE Oven Clearances: The Ciao Bella Pizza Oven is designed for outdoor use only. BEWARE of flying sparks from the mouth of the oven. It is essential to maintain clearance space between the oven components and any combustible material, such as walls, ceilings, awnings, canopies, foliage, or construction materials. -
Page 13: Maintenance And Cleaning Instructions
OWNER’S MANUAL & USER’S GUIDE Soot: Over time, the top of the opening to your oven will darken with soot. While your Ciao Bella’s vent and chimney system do an excellent job of drawing smoke out of the oven chamber, soot is an unavoidable part of any wood oven. - Page 14 CAREFUL WITH CAST IRON/TERRACOTTA-LOOKING PANS MASS-PRODUCED IN ASIA. THEY MIGHT NOT WITHSTAND THE TEMPERATURE OF YOUR WOOD FIRED OVEN. CAST IRON IS GUARAN- TEED TO WORK WELL IN YOUR OVEN. CAST IRON COOKWARE IS AVAILABLE ON THE CIAO BELLA PIZZA OVENS ONLINE STORE.
- Page 15 [This Warranty applies to product purchased after May 1st 2020] At Ciao Bella Pizza Ovens we stand by our product and offer a full year warranty on all of our ovens against manufacturer defect. Should you ever have a problem with your oven within the warranty period, please contact us.
- Page 16 OWNER’S MANUAL & USER’S GUIDE RETURN POLICY Commercial & Residential Returns – Terms and Conditions Our customer’s satisfaction is our number one priority. Customers returning unopened boxed items of original purchase will be charged a 20% restocking fee and freight charges roundtrip. Please contact us for return authorization.
- Page 17 COOK EVERYTHING WITH YOUR CIAO BELLA. Because “Just a Pizza Oven” is an understament. #cookeverything Remember to tag us in your photos and videos info@ciaobellapizzaovens.com on Instagram & Facebook. ciaobellapizzaovens.com CIAO. @ciaobellapizzaovens...
