Page 1

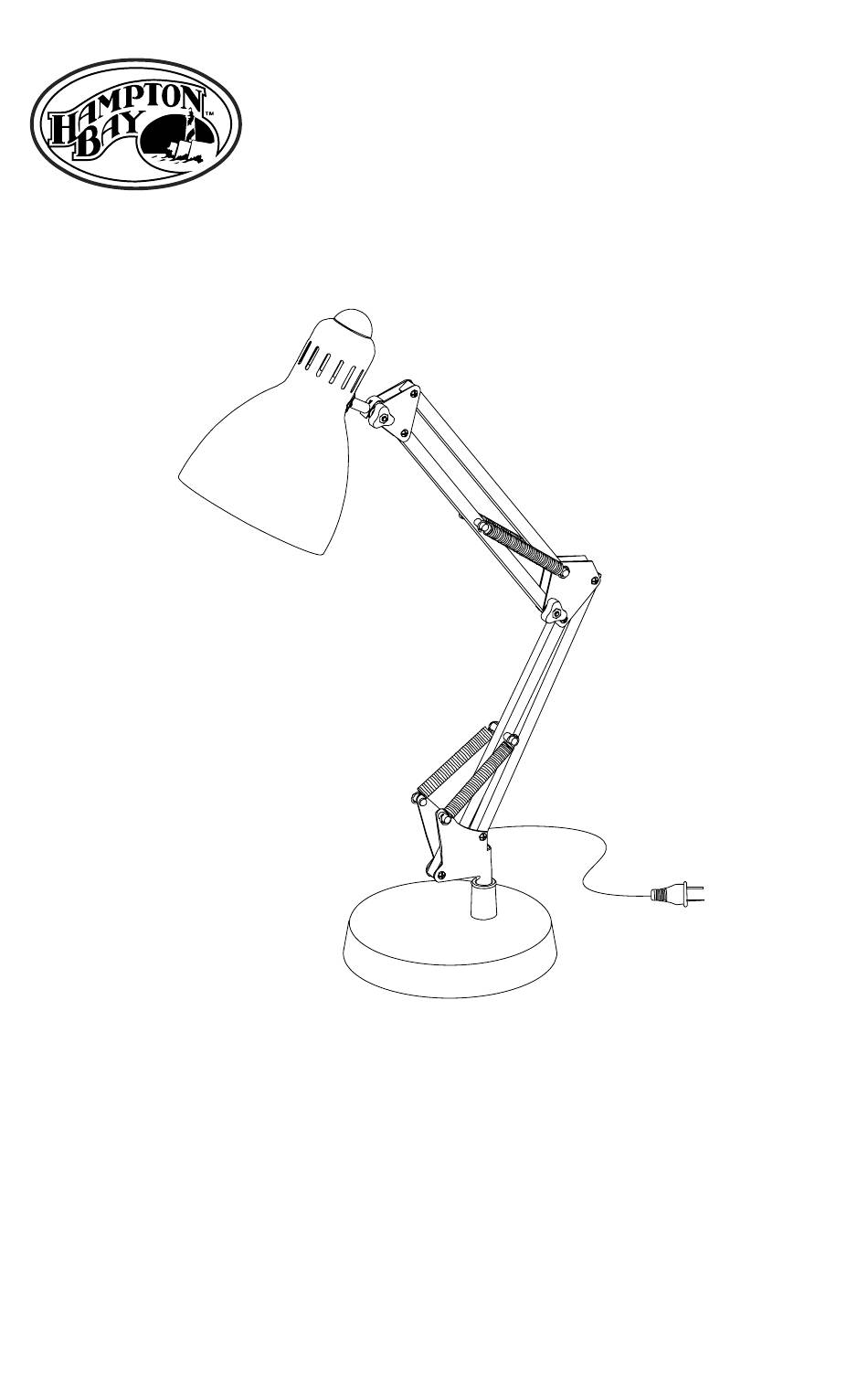

INSTRUCTION MANUAL Architect’s Work Lamp Home Depot SKU 560-573 (UPC 050276982876) Thank you for purchasing this Hampton Bay interior portable luminaire. This product has been manufactured to the highest standards of safety and quality. The durable finish and shade design provide for care-free maintenance.
Page 2
QUESTIONS, PROBLEMS, MISSING PARTS: Before returning to your local Home Depot, please call our Customer Service Team at 1-877-527-0313 or visit www.homedepot.com. Please reference your SKU 560-573 Architect’s Work Lamp when speaking to a Customer Service agent. CAUTION: 1. Before starting to assemble your portable luminaire, spread all parts out on a clean flat surface.
Page 3
ASSEMBLY INSTRUCTIONS: 1. INSERT THE LAMP BODY INTO BASE AND TIGHTEN SCREW SECURELY. LAMP BODY SCREW BASE Page 3...
TROUBLESHOOTING: Possible Cause Corrective Action Bulb will not light. 1. Bulb is burned out. 1. Replace light bulb. 2. Power is off. 2. Make sure power supply is 3. Cord not plugged in. 3. Make sure cord is plugged into the outlet. 4.
Page 5
El trabajo del arquitecto de la lámpara Home Depot SKU 560-573 (UPC 050276982876) Gracias por seleccionar esta lámpara Hampton Bay. Este producto está fabricado con los más altos niveles de calidad y de seguridad. Su terminado y el diseño de su pantalla le proporcionaran un libre mantenimiento.
Page 6
Antes de regresar a su Home Depot, por favor llame a nuestro equipo de servicio al cliente al at 1-877-527-0313 o visite www.homedepot.com. Por favor haga referencia al número de SKU 560-573 El trabajo del arquitecto de la lámpara cuando hable con un agente de servicio al cliente.
Page 7
INSTRUCCIONES PARA ARMAR: 1. INSERTE EL CUERPO DE LA LÁMPARA DE LA BASE Y APRIETE FIRMEMENTE. CUERPO DE LA LÁMPARA TORNILLO BASE Page 7...
TROUBLESHOOTING: Posible Causa Acción Correctiva El foco no enciende. 1. Foco quemado. 1. Remplace el foco. 2. Interruptor apagado. 2. Cerciórese de que hay suministro eléctrico. 3. Cable de corriente no 3. Asegúrese de que el cable de la conectado. lámpara esté...
Architecte de travail de la lampe Home Depot SKU 560-573 (UPC 050276982876) Merci d’avoir acheté ce luminaire portatif d’intérieur Hampton Bay. Ce produit a été fabriqué en respectant les normes de sécurité et de qualité. Son fini durable et la forme de son abat-jour nécessitent peu d’entretien.
Page 10
Avant de retourner l’article à votre dépôt local, veuillez contacter notre Service Clientèle au 1-877-527-0313 ou visiter notre site www.homedepot.com. Merci d’indiquer le numéro de référence Architecte de travail de la lampe 560-573 au cours de votre communication avec notre chargé de clientèle.
Page 11
INSTRUCTIONS DE MONTAGE: 1. INSCRIRE LA LAMPE DU CORPS DE BASE ET EN TOUTE SÉCURITÉ SERRER LA VIS. CORPS DE LA LAMPE BASE Page 11...
PANNES: Raison possible Action corrective L’ampoule ne 1. L’ampoule est hors 1. Remplacez l’ampoule. s’éclaire pas. d’usage. 2. Il n’y a pas d’électricité. 2. Assurez-vous qu’il y a de l’électricité. 3. La prise n’est pas 3. Assurez-vous que la branchée. prise est branchée dans la prise murale.
