Summary of Contents for Para systems Minuteman SNMP-NET

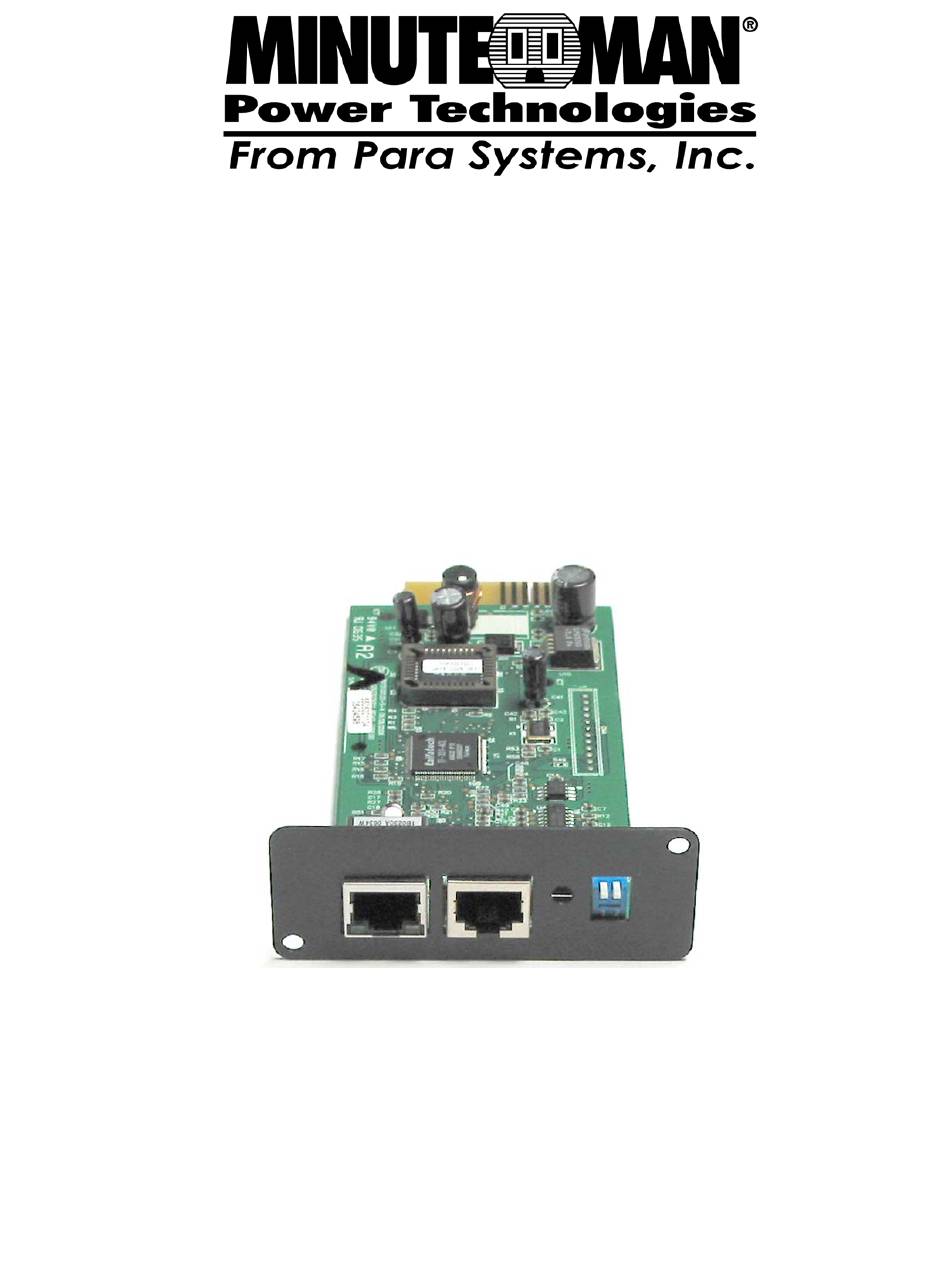

- Page 1 SNMP-NET UPS SNMP Card (Web-Based monitoring SNMP Card) User’s Manual PN: 34000281 R1...
-
Page 2: Table Of Contents
SNMP-NET Table of Contents Chapter 1 Introduction ....................3 Features..........................3 System Application ......................3 Chapter 2 Installation ......................4 Chapter 3 Configuration....................5 Configuring the SNMP-NET by EzSetting ................5 Configuring the SNMP-NET through COM Port ..............6 Configuring the SNMP-NET through Telnet.................7 Configuration by Text Mode ....................7 User Manager ........................8 System Configuration ......................8 SNMP Access Control ......................9... -
Page 3: Chapter 1 Introduction
SNMP-NET Chapter 1 Introduction Features • Network connection through RJ45 connector Allows connection of the UPS directly to the Ethernet network through a RJ45 connector without using RS232 ports on the computer and without loading any individual UPS management software on the network server. •... - Page 4 SNMP-NET NMS Station or W eb Browser SNMP-NET SNMP Card Power Line Ethernet Shutdown S/W Shutdown S/W Shutdown S/W Operating Operating Operating System 1 System 2 System N. Figure 1-1 System Application Diagram Dip Switches Ethernet Connection Reset Button Console / ENV Connection Figure 1-2 SNMP-NET Card...
-
Page 5: Chapter 2 Installation
SNMP-NET Chapter 2 Installation Note: The SNMP-NET cards are designed to be Hot Swappable, but there is a remote chance that when Hot-Swapping the SNMP-NET card that the UPS will shutdown. MINUTEMAN recommends following steps 1 through 8 when installing the SNMP-NET card, but to hot-swap, skip to step number 3 and omit steps 6, 7. -
Page 6: Configuring The Snmp-Net By Ezsetting
SNMP-NET Configuring the SNMP-NET by EzSetting 1. Prepare a workstation (Microsoft Windows 9x, Me, NT4.0, 2000, 2003, XP or later). 2. Make sure both the DIP-switches of SNMP-NET are set to OFF position (default: normal mode) to enable network transmission. 3. -
Page 7: Configuring The Snmp-Net Through Com Port
SNMP-NET 8. Click on the Configuration button and setup the essential network parameters. (See 2-3) Figure 2-3 Configure the system parameters. Configuring the SNMP-NET through the COM Port 1. Prepare a workstation (Microsoft Windows 9x, Me, NT4.0, 2000, 2003, XP or later). 2. -
Page 8: Configuring The Snmp-Net Through Telnet
SNMP-NET Configuring the SNMP-NET through Telnet 1. Connect the SNMP-NET SNMP card to the network. 2. Prepare a workstation (Microsoft Window, Max OSX or Linux), which is connected to the same LAN. 3. Set both of the DIP-switches of the SNMP-NET to OFF position (normal mode). 4. -
Page 9: User Manager
SNMP-NET User Manager +========================+ User Manager +========================+ Administrator [1]. Account: admin [2]. Password: ******** [3]. Limitation: Only in This LAN Device Manager [4]. Account: device [5]. Password: ******** [6]. Limitation: Only in This LAN Read Only User [7]. Account: user [8]. -
Page 10: Snmp Access Control
SNMP-NET No. Function Description Default IP Address The SNMP-NET IP address. 192.168.001.100 Subnet Mask The sub-net mask setting. 255.255.255.000 Gateway IP The network default gateway. 192.168.001.254 DNS IP Domain Name Server IP address 192.168.001.001 BOOTP/DHCP Client Enable/Disable BOOTP/DHCP protocol Enable HTTP Server Enable/Disable HTTP protocol Enable... -
Page 11: Snmp Trap
SNMP-NET SNMP Trap If you want to use a PC and perform the SNMP manager ‘trap’ function in order to manage the UPS through SNMP-NET, the IP address of the PC must be added to the SNMP Trap list. The Event Level field is used to decide what kind of power events should be sent to the target address. -
Page 12: Wake On Lan
SNMP-NET Wake On LAN SNMP-NET supports the packet to wakeup workstations in 2 conditions: power restore or system startup with a time delay. +========================+ Wake On LAN +========================+ Index MAC Address Delay Trigger Conditions 00-0c-08-34-4d-57 (Power Restore)(System Startup) 00-00-00-00-00-00 00-00-00-00-00-00 00-00-00-00-00-00 00-00-00-00-00-00 00-00-00-00-00-00... -
Page 13: Chapter 4 Managing Snmp-Net
SNMP-NET Chapter 4 Managing SNMP-NET Running the Web Browser (Internet Explorer) 1. Make sure that you have a TCP/IP network already installed. 2. If there is no DHCP network service on the network, contact your network administrator to get an IP address for you workstation that has the same network’s address as the SNMP-NET IP address. -
Page 14: Ups Shutdown During Power Crisis
SNMP-NET UPS Shutdown during Power Crisis UPS only: SNMP-NET responds to two different kinds of UPS shutdown events (AC failed, Battery Low). Go to Configure in the UPS Management menu and Login as an Administrator. Set the options in UPS Shutdown Action section then press the Submit button. UPS + Shutdown Software (SNMP-NET Client): If your SNMP-NET device needs to work with the shutdown software to protect your servers, which are powered by the UPS then you should clear all of the settings of UPS shutdown action... -
Page 15: Snmp Access Control Setting
SNMP-NET SNMP Access Control Setting SNMP-NET supports SNMP protocol. You can use an NMS to manage the UPS through the network. The IP address of the workstation must be entered in the SNMP-NET write access table to prevent unauthorized users from configuring SNMP-NET via SNMP protocols. Power Fail/Restore Simulation To make sure the network configuration is correct, SNMP-NET provides two test buttons to simulate power fail and power restore events. -
Page 16: Chapter 5 Shutdown Software
SNMP-NET Chapter 5 Shutdown Software There are two kinds of shutdown software to help you to protect servers from power crisis. One is SNMP-NET Client the other one is the SNMP-NET ShutdownAgent. Both programs have the ability to shutdown servers gracefully. The major difference is the SNMP-NET ShutdownAgent can only receive SNMP traps of power fail and low battery signals but the SNMP-NET Client can observe the UPS parameters, record power events and values. -
Page 17: Chapter 6 Specification
SNMP-NET Chapter 6 Specification Technical Specification Network Connection RJ-45 jack connector Operating Temperature 0 ~ 40° C Operating Humidity 10 ~ 80 % Power Input 9~24V DC Power Consumption 1 Watt Maximum Size 130 mm x 60 mm (L x W) Weight 58 g Dipswitch Definition... -
Page 18: Chapter 7 Appendix
SNMP-NET Chapter 7 Appendix Troubleshooting 1. How can I provide a SNTP (Simple Network Timer Protocol) server for SNMP-NET? Solution: There are two ways to provide a network Time Server for SNMP-NET: 1) Install the SNMP-NET Client software you can find it on the CD. 2) Install the “Simple TCP/IP Services”... - Page 19 SNMP-NET 6. Unable to perform an SNMP get operation. Solution: Check the SNMP settings stored in the SNMP-NET. The IP Address of the PC you are using must be entered in one of the SNMP Access Control NMS IP fields, with Read or Read/Write permission.
-
Page 20: Glossary
SNMP-NET Glossary Agent Implemented SNMP applications in network elements (hosts). Agents perform the network management’s functions as requested by the network administrator from an NMS. Ethernet Local Area Network technology, can link up to 1,024 nodes in a bus network. Ethernet provides raw data transfer in a rate of 10 megabits/sec. -
Page 21: Obtaining Technical Assistance
SNMP-NET Obtaining Technical Assistance For Technical Support on the Web, please visit the Support section of our Web site or visit our online Discussion Forum at www.minutemanups.com In order to diagnose the problem you are having, our technicians need the following information from you. Installation Site: Company Name: Address:... -
Page 22: Limited Product Warranty
For equipment sites within the United States and Canada, this warranty covers repair or replacement of defective equipment at the discretion of Para Systems. Repair will be from the nearest authorized service center. Replacement parts and warranty labor will be borne by Para Systems. For equipment located outside of the United States and Canada, Para Systems only covers faulty parts.
