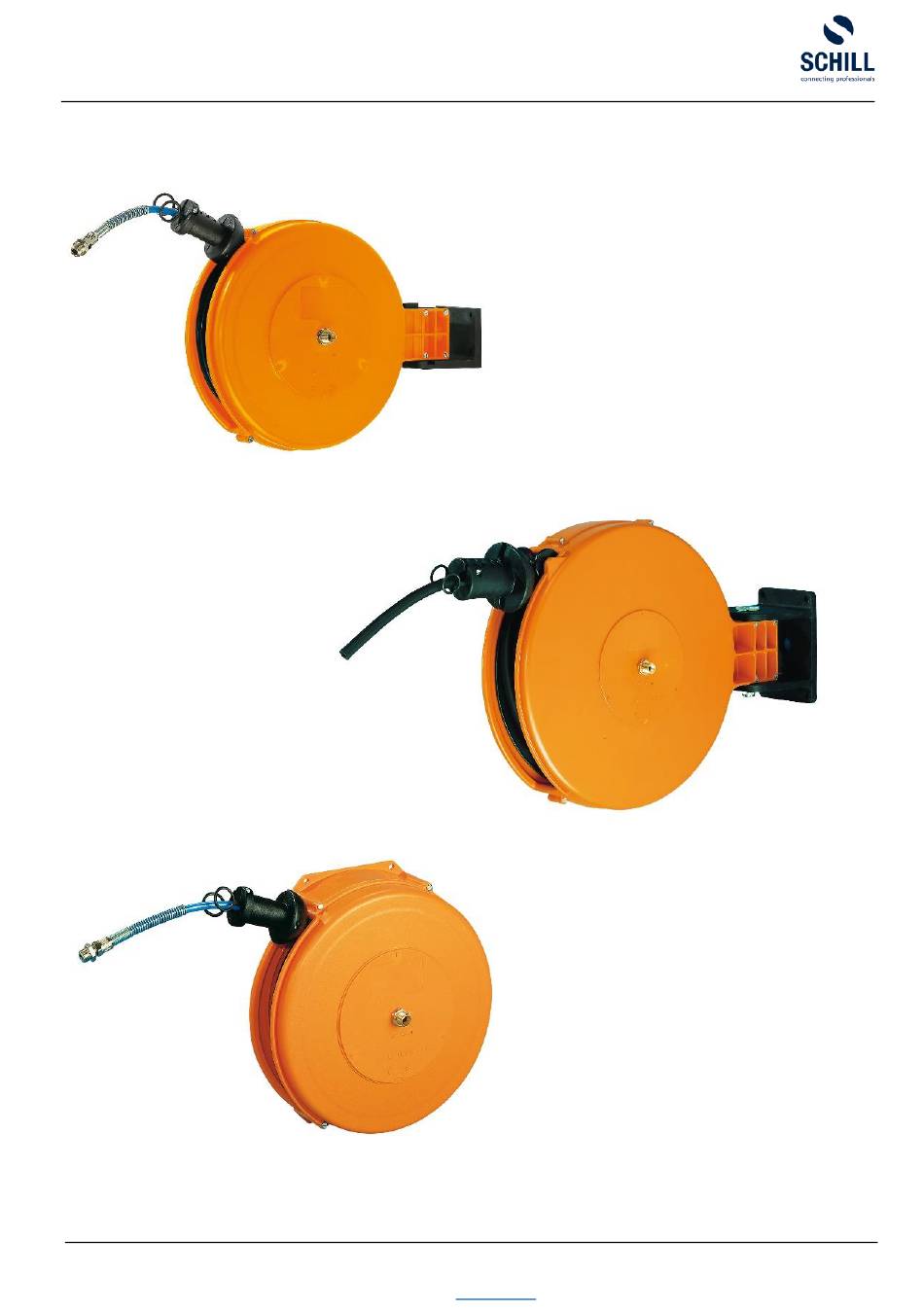

- Page 1 ST 260/350 and EST 265 installation and operating instruction page 1 01.04.2021 installation and operating instruction ST 260_350-EST 265 - A5 Schill GmbH & Co. KG; Bruckstraße 44; 70734 Fellbach www.schill.de...
-
Page 2: Maintenance
The length of the available hose can be individually adjusted with the provided hose stopper. The reliable clamping adapts to various hose diameters between 6 and 12mm (ST 260 / EST 265) and also 6 – 16mm (ST 350). For a thicker hose, a larger version is available. The stopper also serves as a safeguard against retraction of the hose in case of a not intended release. - Page 3 The locking device ST 260/350 can be disengaged by pulling the knurled grip out by approx. 1cm and turning it between 90° and 180°. This will disengage the locking device the cable is then constantly under tension.
-
Page 4: Technical Data
Rubber hose NW 6 fabric-reinforced • Hose fitting with 6-KT nut. • Hose stopper with lamella clamping:6 - 12mm ST 260 and EST 265 / 6 - 16mm ST 350 • Universal holder for wall or ceiling mounting ST 260/350 •... -
Page 5: Installation Height
ST 260/350 and EST 265 installation and operating instruction Let the coil run back slowly and count the number of turns. This is important to adjust later the exact preload on the spring again, without damage to coil or spiral spring. In the end the coil should be able to move freely. - Page 6 ST 260/350 and EST 265 installation and operating instruction Ceiling mounting with universal holder DWB260 The cable reel can be rotated 360 °. PLEASE NOTE The cable reel housing must be pushed onto the universal holder pin, then insert the slider into the intended position of the cable reel housing.
- Page 7 ST 260/350 and EST 265 installation and operating instruction FITTING INSTRUCTIONS ST 350 Wall mounting with universal holder WB 038/350 Wandholder WB 038/350 The cable reel can be rotated 150°. To the attention of Tighten screws (with spring ring and underlay) at the top and bottom with torque 40Nm Wall holder WB 038 is included in the scope of delivery, but no fastening screws.
- Page 8 ST 260/350 and EST 265 installation and operating instruction DIMENSIONS ST 260 EST 265 ST 350 The dimensions, weights, lengths, coloures and traction are subject to modifications. We cannot rule out discrepancies and we reserve the right to make technical changes to the product without giving advance notice.
-
Page 9: Tightening Torque
ST 260/350 and EST 265 installation and operating instruction TIGHTENING TORQUE Gehäuseschrauben electrical connections 0,8 Nm 0,5 Nm cover screws electrical connections Achsschraube MS grinding ring nut M3.5 1 Nm 0,3 - 0,35 Nm axle screw MS slip ring nut M3,5...
