Figure 9. Connecting The Power Cable And Fan Cable - Powerleap PL-PROMMX PLUS Manual

20
Plug the PL-ProMMX Plus's power cable and fan' s power cable into the
power connector and fan connector on the CPU upgrade board.
F a n
C a b l e
F a n
Co n n e c t o r
The upgrade board must have an independent (external) power supply in
For maximum reliability, do not use the unused connector on the power
PowerLeap Installation Guide
™

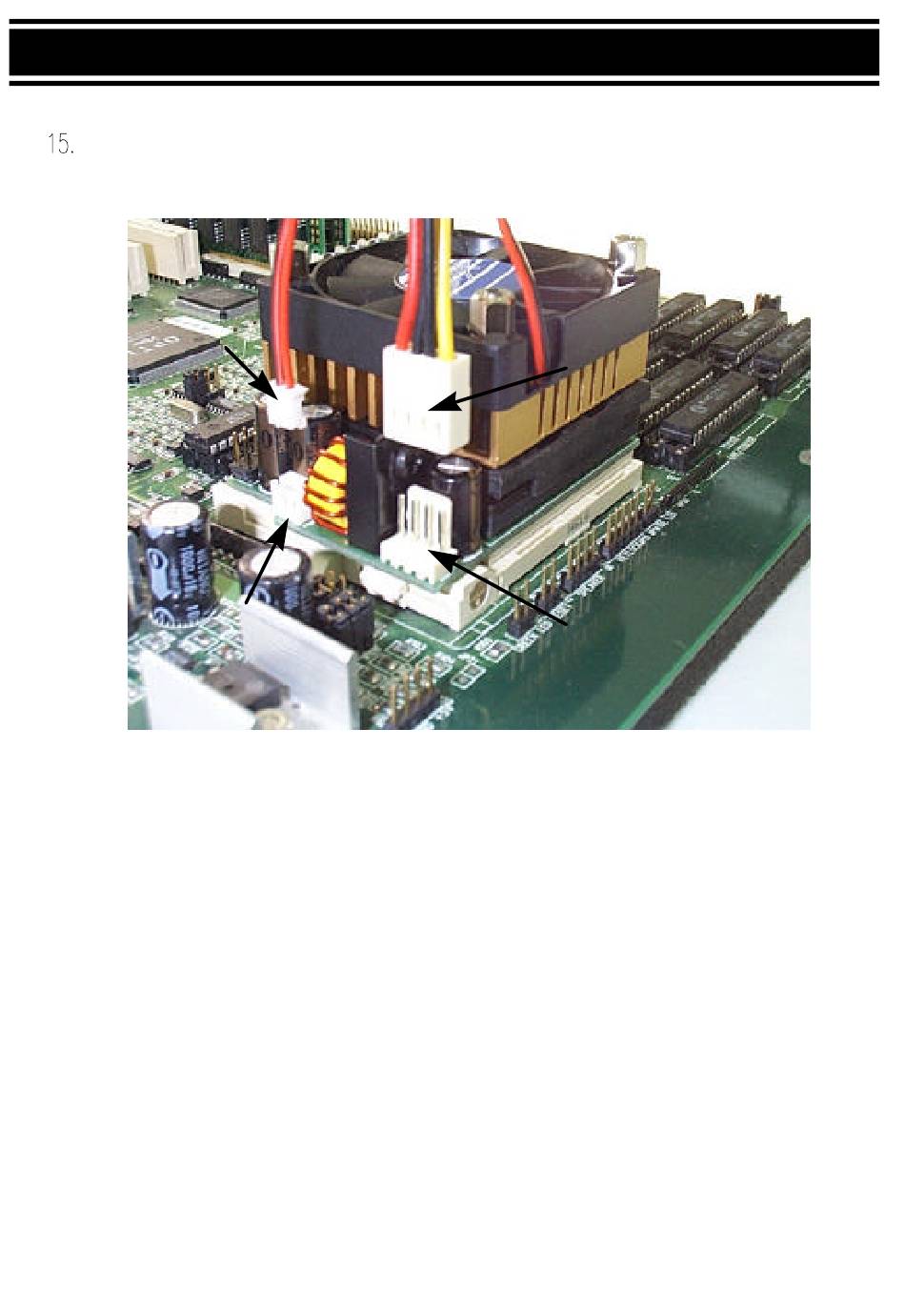

Figure 9. Connecting the power cable and fan cable

order to operate. Without a connection to an external power
supply, the CPU upgrade will not work.
connector cord to supply power to a hard disk drive or other
device. In other words, use the power connector cord to
connect only the upgrade board to the power supply.
Installing the CPU Upgrade Board
P o w e r
C a b l e
P o w e r
Co n n e c t o r
