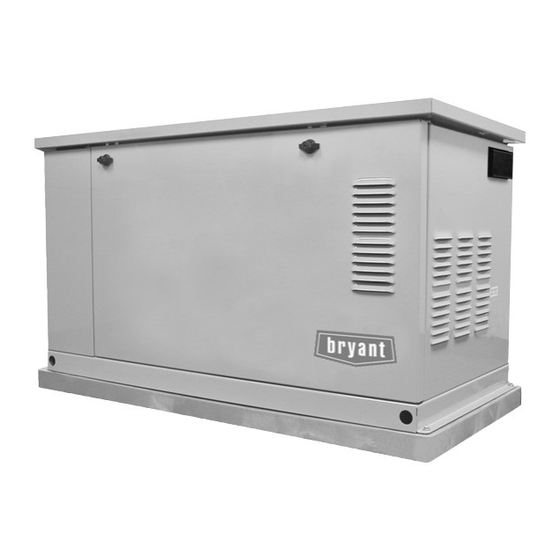

  • Page 1 Not intended for use as Primary Power in place of utility or in DEADLY EXHAUST FUMES. OUTDOOR INSTALLATION ONLY!! Owner’s Manual Automatic Standby Generators Models: ASPAS1BBA007 (6 kW NG, 7 kW LP) ASPAS1BBA012 (12 kW NG, 12 kW LP) ASPAS1BBA015 (13 kW NG, 15 kW LP) life-support applications. DANGER...

  • Page 2: Introduction

    This prepares them if they need to operate the equipment in an emergency. This manual contains pertinent owner’s information, including warranty, electrical diagrams, exploded views and lists of repair parts, for three different Bryant models: • ASPAS1BBA007 GH-410 Engine •...

  • Page 3: Table Of Contents

    Manual Transfer Operation...11 Setting the Exercise Timer ...11 Protection Systems...12 Table of Contents Bryant Air-cooled 7 kW, 12 kW and 15 kW Generators Section 3 – Maintenance ...12 Fuses ...12 Checking the Engine Oil Level ...13 Changing the Engine Oil...13 Changing the Oil Filter ...14...

  • Page 4: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS Bryant Air-cooled 7 kW, 12 kW and 15 kW Generators SAVE THESE INSTRUCTIONS – The manufacturer suggests that these rules for safe operation be copied and posted near the unit’s installation site. Safety should be stressed to all operators and potential operators of this equipment.

  • Page 5: Electrical Hazards

    • Keep a fire extinguisher near the generator at all times. IMPORTANT SAFETY INSTRUCTIONS Bryant Air-cooled 7 kW, 12 kW and 15 kW Generators Extinguishers rated “ABC” by the National Fire Protection Association are appropriate for use on the standby electric system.

  • Page 6: Section 1 - General Information

    Section 1 — General Information Bryant Air-cooled 7 kW, 12 kW and 15 kW Generators DANGER Only qualified electricians or contractors should attempt such installations, which must comply strictly with applicable codes, standards and regulations. UNPACKING/INSPECTION After unpacking, carefully inspect for damage.

  • Page 7: The Generator

    Figure 1.1 – 7 kW, Single Cylinder GH-410 Engine Exhaust Enclosure Figure 1.2 – 12 kW and 15 kW, V-twin GT-990 Engine Exhaust Enclosure Section 1 — General Information Bryant Air-cooled 7 kW, 12 kW and 15 kW Generators Control Panel Data Dipstick Decal Battery...

  • Page 8: Specifications

    Section 1 — General Information Bryant Air-cooled 7 kW, 12 kW and 15 kW Generators SPECIFICATIONS 1.5.1 GENERATOR Model Rated Max. Continuous Power Capacity (Watts*) Rated Voltage Rated Max. Continuous Load Current (Amps) 120 Volts** 240 Volts Main Line Circuit Breaker...

  • Page 9: Fuel Consumption

    Section 1 — General Information Bryant Air-cooled 7 kW, 12 kW and 15 kW Generators ◆ Install the generator set, in its protective enclosure, outdoors, where adequate cooling and ventilating air is always available.

  • Page 10: 1.10 Battery Installation

    Section 1 — General Information Bryant Air-cooled 7 kW, 12 kW and 15 kW Generators 1.10 BATTERY INSTALLATION Fill the battery with the proper electrolyte fluid if necessary and have the battery fully charged before installing it. Before installing and connecting the battery, complete the following steps: 1.

  • Page 11: Section 2 - Operation

    “General Hazards” (page 2). Section 2 — Operation Bryant Air-cooled 7 kW, 12 kW and 15 kW Generators 12. Drain the oil and remove the oil filter. Replace the oil filter according to Section 3.4, “Changing the Oil Filter”.

  • Page 12: Automatic Transfer Operation

    Section 2 — Operation Bryant Air-cooled 7 kW, 12 kW and 15 kW Generators AUTOMATIC TRANSFER OPERATION To select automatic operation, do the following: 1. Make sure the transfer switch main contacts are set to their UTILITY position, i.e., loads connected to the utility power source (Figure 2.2).

  • Page 13: Manual Transfer Operation

    7. Set the generator’s main circuit breaker to its ON (or closed) position. The standby power source now powers the loads. Bryant Air-cooled 7 kW, 12 kW and 15 kW Generators 2.5.2 TRANSFER BACK TO UTILITY POWER When utility power has been restored, transfer back to that source and shut down the generator.

  • Page 14: Protection Systems

    Section 2 — Operation Bryant Air-cooled 7 kW, 12 kW and 15 kW Generators NOTE: The exerciser will only work in the AUTO mode and will not work unless this procedure is performed. The exerciser will need to be reset every time the 12-volt battery is disconnected and then reconnected.

  • Page 15: Section 3 - Maintenance

    Figure 3.2 — Oil Dipstick and Fill, 7 kW Oil Dipstick and Fill Section 3 — Maintenance Bryant Air-cooled 7 kW, 12 kW and 15 kW Generators SYSTEM SET LOW OIL HIGH TEMP.

  • Page 16: Changing The Oil Filter

    Section 3 — Maintenance MAINTENENANCE Bryant Air-cooled 7 kW, 12 kW and 15 kW Generators Figure 3.4 – Oil Drain Hose and Filter Low Oil Switch Drain Hose Oil Filter CHANGING THE OIL FILTER Change the engine oil filter as follows: 1.

  • Page 17: Battery Maintenance

    The following procedures are to be observed: Section 3 — Maintenance Bryant Air-cooled 7 kW, 12 kW and 15 kW Generators • Wear full eye protection and protective clothing; • Where electrolyte contacts the skin, wash it off immediately with water;...

  • Page 18: Corrosion Protection

    Section 3 — Maintenance Bryant Air-cooled 7 kW, 12 kW and 15 kW Generators MAINTENENANCE Figure 3.8 – Cooling Vent Locations The exhaust from this product gets extremely hot and remains hot after shutdown. High grass, weeds, brush, leaves, etc. must remain clear of the exhaust.

  • Page 19: Section 4 - Service

    ENGINE AND MOUNTING Air cleaner Spark plug(s) GENERAL CONDITION Vibration, Noise, Leakage, Temperature* COMPLETE TUNE-UP* Bryant Air-cooled 7 kW, 12 kW and 15 kW Generators PROCEDURE Inspect Change TO BE COMPLETED BY A BRYANT DEALER Section 4 — Service SERVICE...

  • Page 20: Section 5 - Troubleshooting Bryant Air-Cooled 7 Kw, 12 Kw And 15 Kw Generators

    Section 5 — Troubleshooting Bryant Air-cooled 7 kW, 12 kW and 15 kW Generators TROUBLESHOOTING GUIDE PROBLEM The engine will not crank. The engine cranks but will not start. The engine starts hard and runs rough. The Auto/Off/Manual switch is set to OFF, but the engine continues to run.

  • Page 21: Section 6 - Warranty

    "PREPACKAGED EMERGENCY AUTOMATIC STANDBY GENERATORS" For a period of two years from the date of original sale, Bryant warrants that its generator will be free from defects in material and workmanship for the items and period set forth below. Bryant will, at its option, repair or replace any part which, upon examination, inspection and testing by a Bryant Dealer, is found to be defective.

  • Page 22: California Emission Control Warranty Statement

    Owner’s Manual. For warranty purposes, Generac recommends that you retain all receipts covering maintenance on your engine. However, Bryant cannot deny warranty solely due to the lack of receipts or for your failure to ensure the completion of all scheduled maintenance.

  • Page 23: Emission Control System Warranty

    Such use voids this ECS Warranty and shall be sufficient grounds for disallowing an ECS Warranty claim. Generac shall not be held liable hereunder for failures of any warranted parts of a Bryant engine caused by the use of such an unapproved, add-on, modified, counterfeit and/or “grey market”...
  • Page 24 PART NO. 0F6906 CATALOG NO. OM18-5 REV. * (6/01/05) PRINTED IN U.S.A.
