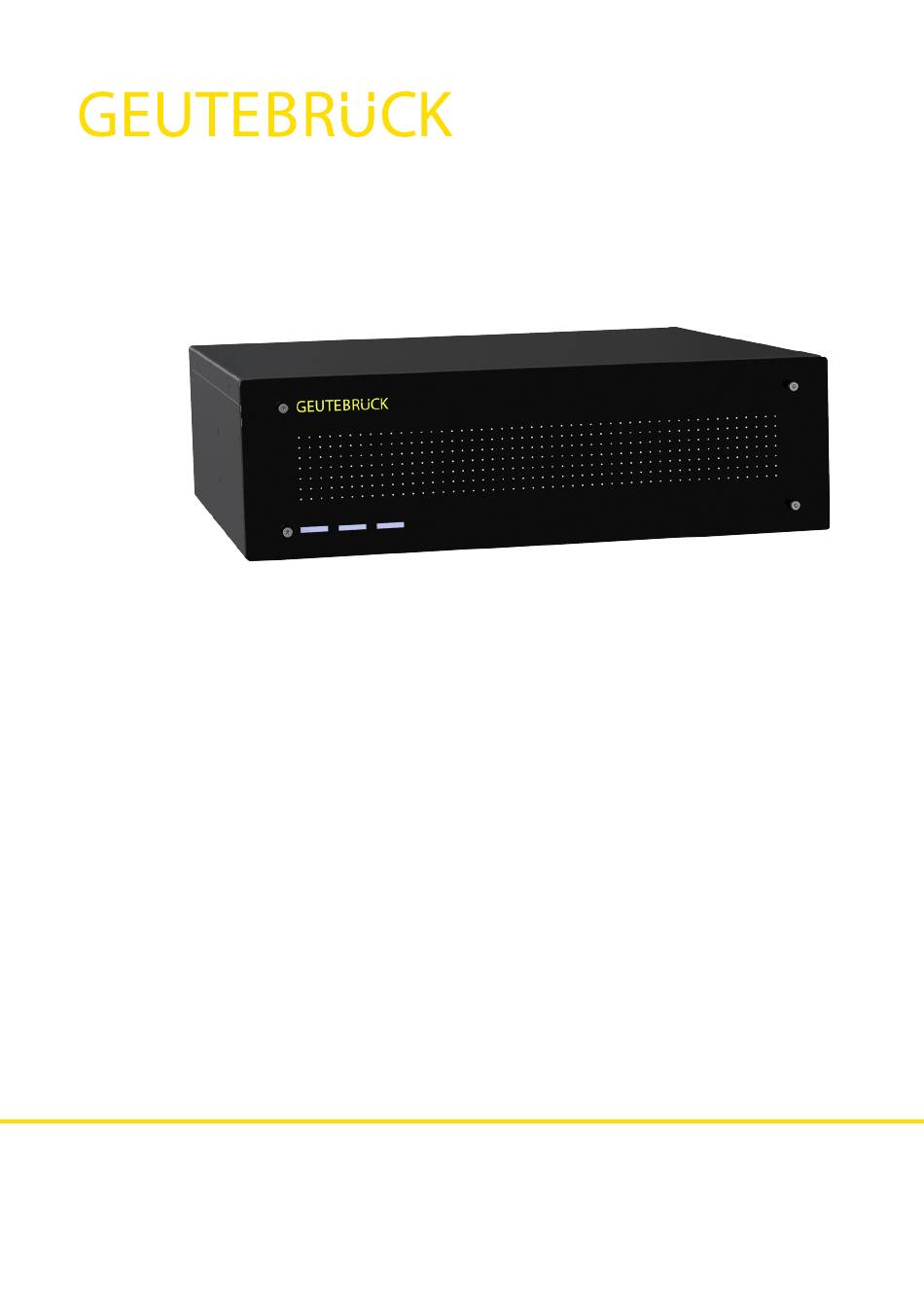

- Page 1 G-ST 3000+ G2 Installation manual...
-
Page 2: Introduction
Please read and observe these operating instructions so that errors and danger can be avoided. The operating instructions are valid for the G-ST 3000+ G2. The operating instructions are only valid when the device corresponds to the version de- scribed herein. -
Page 3: Table Of Contents
Description and definition of signs .............. 3 General safety instructions ................. 4 Device description ................5 Overview G-ST 3000+ G2 ................5 Transportation, storage, initial commissioning ........... 6 Scope of delivery ..................6 Device view ....................7 ... -
Page 4: General Notes And Safety
General notes and safety General notes and safety Intended use The G-ST 3000+ G2 is a high performance, digital video management system based on modern processor architectures. The G-ST supports direct recording and playback of network cameras. The recording rate depends on the type of network camera. -
Page 5: General Safety Instructions
General notes and safety General safety instructions When using the devices or performing maintenance on them, the following safety in- structions are to be observed to protect the operator, the service technician and the device: During design and construction of the devices, the acknowledged state of the art as well as the acknowledged applicable standards and directives have been taken into account and implemented. -
Page 6: Device Description

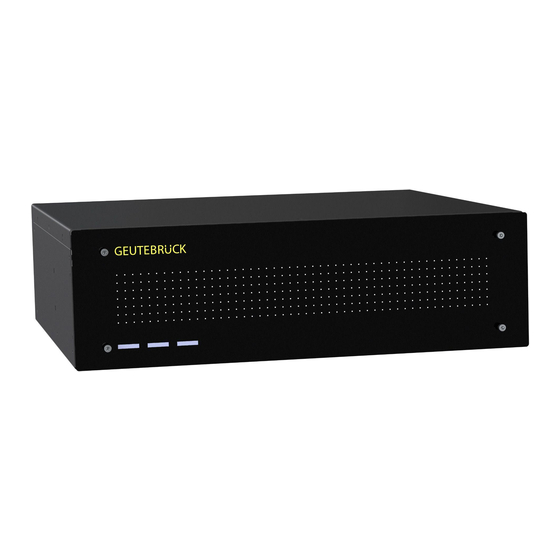

Device description Overview G-ST 3000+ G2 Device description Recommended uses and applications The G-ST 3000+ G2 is the ideal system platform for use in medium- sized branches. The hardware platform in Desktop- Execution ensures an optimal inter- action with Geutebrück software. Ideal as a single device for a medium-sized system, as well as for use in networked branches or subsidiaries. -
Page 7: Transportation, Storage, Initial Commissioning
The device may only be commissioned after it has been ensured that all applica- ble safety requirements have been fulfilled. Scope of delivery Ensure that the following items are included in the delivery: G-ST 3000+ G2 Manual Installations/recovery DVD ... -
Page 8: Device View
Device description Device view Front view Figure 1: Front view Figure 2: Front view without cover LED (white) Power LED (red) Error LED (white) Record HDD USB connections (2x) Action push button Alarm-Reset button Reset button Power button V 1.0... -
Page 9: Rear View
Device description Rear view G-ST 3000+ G2 Figure 3: Rear view G-ST 3000+ G2 Connection(s) for power supply (2. Power supply optional) Control inputs for connecting external contacts for the event-based image recording/relay outputs Connection for PS/2 PC keyboard (6-pin mini-DIN socket) Connection for PS/2 PC mouse (6-pin mini-DIN socket) USB 2.0 interfaces (2x) -
Page 10: Installation And Commissioning
Installation and commissioning Requirements Checking the conditions Before you integrate your G-ST 3000+ G2 into an existing network, you must en- sure that the following conditions are met: There is a functioning network with TCP/IP protocol (100/1000 Mbit Ethernet). -
Page 11: Preparations
If possible, use printers that are supported by MS Windows and whose printer drivers can be found on the system disk in the Windows directory. For connecting external devices, note in general: G-ST 3000+ G2 devices do not have a CD-ROM/DVD drive. ... -
Page 12: Connecting Devices
Installation and commissioning Connecting devices All connections are made on the back. In addition, two USB ports are available on the front. Please note the following precautions for your security and the safety of the appli- ance. Warning! All connection work may only be performed when the device is shut off. ... - Page 13 Installation and commissioning Enter the following at the MS windows Logon dialog box: User name: Administrator Password: Pa$$w0rd Please confirm by pressing the ENTER key. The Admin user profile allows full access to your G-ST. You are now on the operating system level. At first, please choose your language setting.
-
Page 14: Integrating The Device Into The Network
Installation and commissioning 2. Select a language and click "Next". The corresponding language pack is in- stalled. 3. Open the Region and Language options, by right clicking Start , Control Panel and then Language. 4. Click Add a Language to access the selection menu. Select your language and click "Add". -
Page 15: Managing I/O Contacts
Assigning contacts Digital inputs The G-ST 3000+ G2 has 16 control inputs, which are each equipped with an internal pull-up resistor with 1 kΩ to +5 V. The control inputs are distributed onto two 25-pin Sub-D sockets (inputs 1-8 and 9-16. - Page 16 Installation and commissioning Digital outputs Each unit has eight (2 x 4) digital potential-free outputs. Like the digital inputs, these are distributed to the two 25-pole Sub-D sockets (relay 1-4 and relay 5-8). The digital outputs can be used, for example, to switch external devices to report system errors.
-
Page 17: Adding I/O Contacts In G-Set
Installation and commissioning Adding I/O contacts in G-Set Similar to the cameras, I/O contacts must also be registered using the G-Set soft- ware. The I/O connections are displayed in the list of hardware modules. Configura- tion is performed in a separate view. In the General Settings section, select the entry IO Settings. -
Page 18: Using Other Connections
Installation and commissioning Using other connections Analog Video Connections (optional) Figure 6: AnalogKit-H16 BNC input sockets and Audio Line In Connect FBAS cameras or other FBAS signal sources to the BNC input sockets of the video inputs "VID1", "VID2" etc. Depending on the type of AnalogKit used they feature: ... -
Page 19: Additional External Connections
Installation and commissioning Additional external connections The following external connections are available on the rear of the device: PS2-ports PS2-Keyboard and Mouse can be connected to their PS2 port. Figure 8: PS2 ports USB (2.0 / 3.1) ) External devices can be attached via the eight available USB ports (6 at back, 2 in front of the device). -
Page 20: Turning Off The Device
Installation and commissioning Audio An audio source can be connected at the soundcard ports. Line in Line out Figure 12: Audio connections COM1 At the COM1 port, there is a RS-232 interface via a 9-pin Sub-D socket. The 9-pin COM1 plugs are assigned by default as follows: Figure 12: Pin assignment for COM1 connection –... -
Page 21: Resetting The System To Factory Settings
Resetting the system to factory settings Resetting the system to factory settings Recovery DVDs are provided with your device. This allows for the recovery of the software in- stalled at delivery as well as the original settings. Please note that the recovery process should only be carried out by qualified personnel, as all data on the C:\ drive will be overwritten! Back up your settings on an external disk beforehand. - Page 22 Resetting the system to factory settings 6. In the menu "Troubleshoot" click on the menu button " GEUTEBRUECK Recovery Solution ". 7. Select the size of the Windows partition, click RECOVERY START 8. Confirm disk partition by clicking YES. Now the system recovery starts. During the recovery process, the device may be rebooted several times.
-
Page 23: Appendix
Appendix Appendix Technical data Operating System Windows 10 IoT Enterprise Number of slots 4x HDD, 2x SSD Intel Core i3, i5, i7 or i9 inside CPU-type Max. Database. 450TB GPU Acceleration Analog extendable OS on seperate SSD 2x8 GB DDR4 Ethernet 1 x Ethernet 10/100/1000 base-TX interface 2 x USB 3.1 (Gen1), 2 x USB 3.1 (Gen2),... - Page 24 Technical alterations reserved. GEUTEBRÜCK GmbH Im Nassen 7-9 | D-53578 Windhagen | Tel. +49 (0)2645 13 7-0 | F ax-999| E-mail: info@geutebrueck.com | Web: www.geutebrueck.com...
