Crestron C2N-DAP8 Quick Start

Digital audio processor

Hide thumbs Also See for C2N-DAP8:

Hardware Hookup

Before starting the hardware hookup procedures, make certain power to all devices is off.

NOTE: The DAP8RC is designed to be used only with a Crestron 2-Series control system.

NOTE: The DAP8RC requires 21 Watts of Cresnet power and may require a dedicated Crestron power

supply.

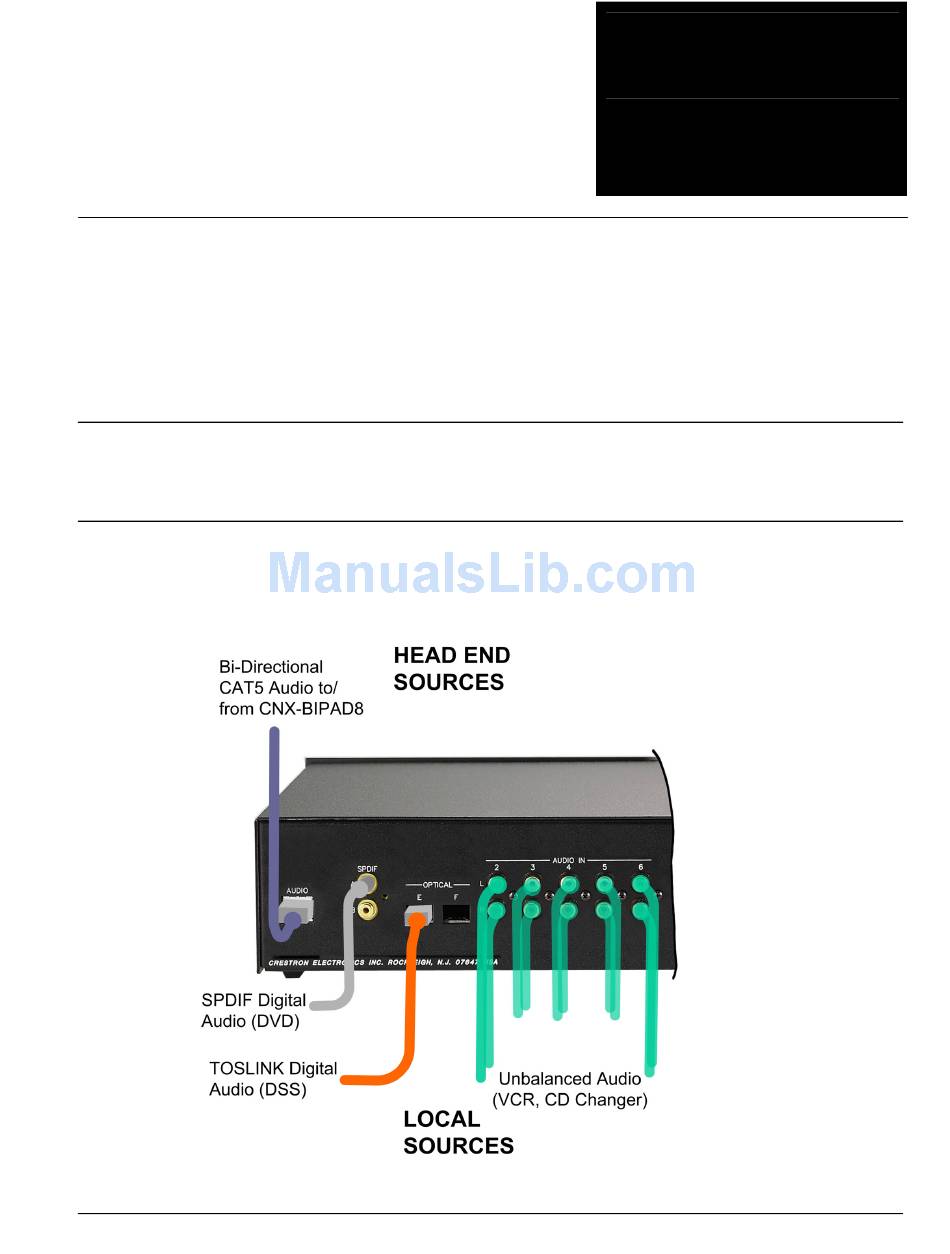

Connect audio sources to the DAP8 using the diagram below as a guide.

Digital Audio Processor: C2N-DAP8 • 1

Quick Start – DOC. 6231

Table of Contents

Do you have a question about the C2N-DAP8 and is the answer not in the manual?

Page 1: Digital Audio
Start Processor ® These instructions can be performed in the office or at the job site to get your Crestron C2N-DAP8 Digital Audio Processor (DAP8) ready for operation quickly. They cover basic procedures necessary to verify that the unit functions properly, and include running the example program, which is downloadable from the Crestron FTP website.
Page 2: Communication Setup
Use a 4-wire Cresnet cable to connect the DAP8 to the control system. If communication cannot be established, refer to the “Troubleshooting Communications” section in the Operations Guide for the control system. 2 • Digital Audio Processor: C2N-DAP8 Crestron C2N-DAP8 Quick Start – DOC. 6231...
Page 3 NOTE: The supplied program is designed to work with a Crestron TPS-4500 touchpanel and a PRO2 control system. If your system uses a different touchpanel and/or control system, convert the programs accordingly.
Page 4 Calibration procedures are beyond the scope of this Quick Start. Instead, refer to “Surround Sound System Setup” on page 18 of the Operations Guide for the DAP8 (Doc. 8186) for detailed instructions. Crestron Electronics, Inc. 15 Volvo Drive, Rockleigh, NJ 07647 Tel: 888.CRESTRON...
