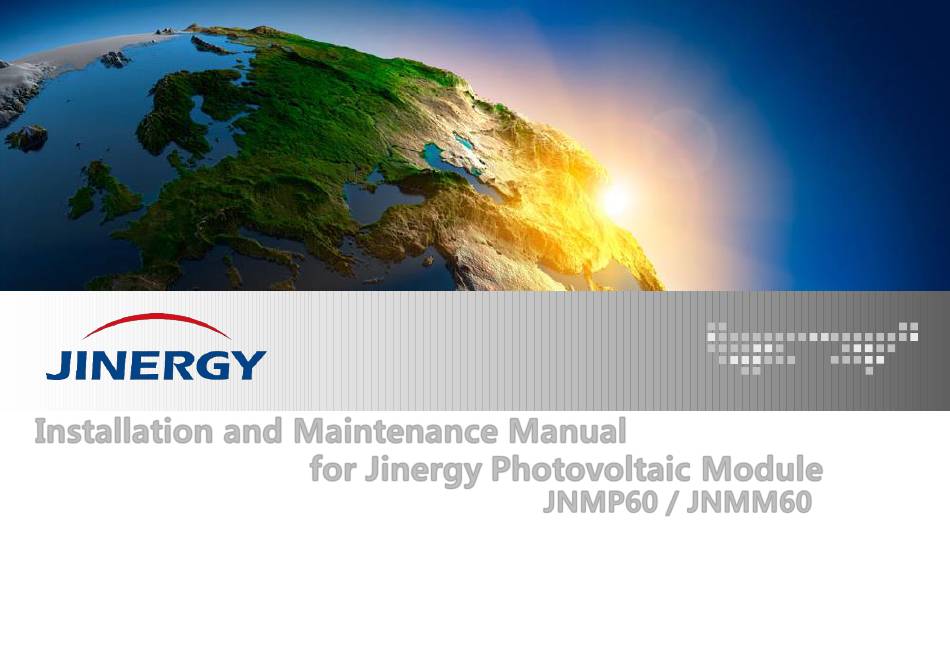

- Page 1 Installation and Maintenance Manual for Jinergy Photovoltaic Module JNMP60 / JNMM60 2018/12/25 晋能清洁能源科技股份公司...
- Page 2 Content 晋能清洁能源科技股份公司 2018/12/25...
-
Page 3: Assembly Drawing
Module Assembly Drawing Rear Front Side JNMP60 JNMM60 Label Mounting slot Grounding holes Unit：mm 晋能清洁能源科技股份公司 2018/12/25... -
Page 4: Packing Configuration
Transportation Packing configuration Unit：mm Extra Pcs Dimension Of Module 40-feet High Container Pcs/Pallet Pallet/Stack Extra Pcs/Stack 1650*992*35 Stacks/Container Pcs/Container 晋能清洁能源科技股份公司 2018/12/25... - Page 5 Transportation Unloading for container Operating procedure Photo Control Point If the container is not full，the people need to cut the bandage when unloading（If the container is full，the bandage is none） If the container is on the ground , the module can be unloading directly 1.
- Page 6 Unpacking Material of package Unit：mm 晋能清洁能源科技股份公司 2018/12/25...
- Page 7 Unpacking Manner of packing Top Package Single Package Stacked Package Unit：mm 晋能清洁能源科技股份公司 2018/12/25...
- Page 8 Unpacking Operating procedure of unpacking Operating procedure Photo Control Point Cut off the packing tape, remove the top package down and hold on flat floor Cut off the packing tape and remove the box Operators must wear gloves to prevent scratching of cover their hands by frame and keep the glass surfaces clear Cut off the inner packing tape...
- Page 9 Storage Storage for modules Operating Procedure Photo Control Point The module would be best set on the flat floor, stand side by side and place neatly The pallet should be pulled firmly as following If there are not flat floor , the stacked package must be break down, the short part of carton is facing down, s tand side by side and place neatly The module should be protect when raining or...
- Page 10 Storage Storage for scattered modules Operating procedure Photo Control Point It can not remain in the box for long time, if it is necessary If unpacked modules do not to storage the unpacked modules, we suggest the following installed completely method 1.
-
Page 11: Installation
Installation Installation condition State： 1. The modules which installed at one series should be same power、same color、same current Power：③ of dexter picture Color：⑤ of dexter picture Current：⑦ of dexter picture 2. If the modules must be gathered together, we suggest that the first mix colors, secondly mix current, mixed power is not recommended 3. -
Page 12: Installation Method
Installation Installation method Clamp Location Dimension(mm) A(mm) B(mm) C(mm) 1650*992*35 1650 晋能清洁能源科技股份公司 2018/12/25... - Page 13 Installation Installation method Label Mounting slot 1.The specific way of installation is on the base of EPC Grounding holes 2.The four mounting slots are matched with M8 bolts 3.Put two washer into the bolt on both side of the frame 晋能清洁能源科技股份公司...
- Page 14 Installation Electrical installation Ground Gasket 1. The module must ground by Grounding hole Frame 2. The surface of frame is anodization coating，it is necessary for Fixed end Bolt Ground wire tooth gasket or self-tapping screw in order to be well grounded 3.
-
Page 15: Electrical Installation
Installation Electrical installation Operate The maximum system voltage is 1000V/1500V Fail Pass The series quantity of module must be matched with electrical characteristics of inverter It is possible to heat or burn up except for hearing “ka”when people plug the connector The minimum bended radius is 43mm and prohibit to excessively bend Cable Bending... -
Page 16: Maintenance
Maintenance Clean The module should clean which the irradiance is lower than 200 w/m²， suggested module cleaning time: the summer before 6 o 'clock in the morning, after 7 PM；the winter before 7 o 'clock in the morning, after 6 PM You can use all kinds of soft sponge、foam、duster to clean module rather than Knife、steel wool in case of scratching the glass It is not recommended to clean with higher mineral water because there are remaining minerals after dry up... - Page 17 Maintenance Others The module is forbid to shield by grass、droppings and other sundry， Otherwise it will cause power decreases, serious will cause hot spots, combustion 晋能清洁能源科技股份公司 2018/12/25...
- Page 18 Maintenance Others Prohibit impact or use of sharp objects to wipe、touch the glass surface，Otherwise it may cause the surface scratches or glass blowout, if glass burst, need immediate replacement of module Modules shall not be piled up around flammable items, surrounding environment should be good ventilation and heat dissipation ...
- Page 19 Maintenance Others Check the module and the bracket is fixed firmly, if not may cause module is overturned by wind Check the grounding line and modules are in good condition Check whether there is cable or other components impact module, this phenomenon may cause cell cracked、...
- Page 20 Safety Safety It can produce more than 30V voltage when module is in the sun. Sparks、 electric shock, and even cause fire if there is improper operation to electrical connection. Do not directly touch module no matter it under any circumstances. The module can be installed on roof、vehicle and so on which be matched to special bracket.
- Page 21 Safety Safety Do not take the module in which combustible gas easily generate or congregate. People should contact the module frame rather than grab connector and cable when transfer module. Do not tread module in any case. To protect the glass is not damaged, please do not place heavy objects on the module or throw something which have damage to module.
- Page 22 Safety Safety To prevent the generation of high voltage and current，people can use a piece of opaque material cover module completely. It is unnecessary when take appropriate protection in the process of operation and it is according to local safety regulations. Do not wear metal jewelry in process of installation.
- Page 23 Safety Safety Please fixed the connecting cable to the bracket which avoid loose cable waggle. It is forbidden to cable placed on the sharp edges The corresponding protection measures should be made for cable to prevent direct contact with animals. Excess gas that battery produced could cause explosion.
- Page 24 谢谢观看！ THANKS! 晋能清洁能源科技股份公司...
