Resolution RE300-5 Quick Start Manual

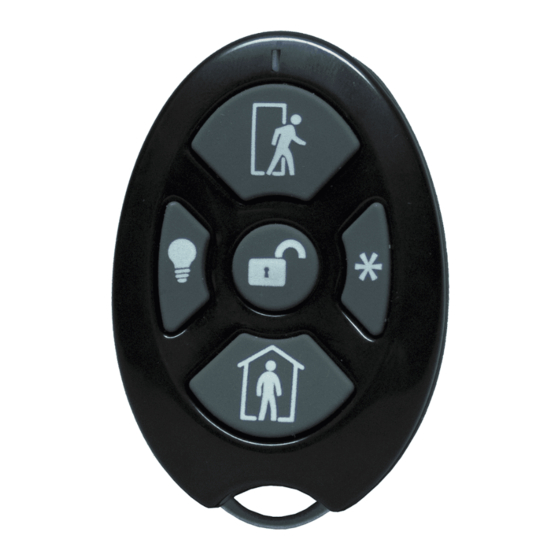

RE300-5 DSC Compatible Keyfob
Keyfob
is a portable device used to remotely control a
security system.

Features

• Supports for up to 8 button functions
• Low battery indication
• 5 year warranty

Enroll

by placing the panel into wireless enrollment mode
and pressing a keyfob button multiple times as instructed
by the panel installation manual. Alternately, sensor ID
located on the back of the fob can be used to manually
enroll the sensor.

Assign User

• For most security panels, keyfobs
must be assigned to a user to function
properly.
To replace the battery,
the keyfob and unsnap the back from the cover.
• After battery replacement, it may take
up to 3 button presses before the low
battery indication clears.

Pro Tips

Optional advanced button commands are sent by
pressing the lights button and another button at
the same time. Advanced button commands are
transmitted on a secondary ID which is the sensor's
primary ID with the last digit replaced by a 1.

Secondary ID Commands

• Lights + Star = Star on secondary ID
• Lights + Unlock= Unlock on secondary ID
• Lights + Away = Arm away on secondary ID
• Lights + Stay = Arm stay on secondary ID
Verify proper enrollment and operation using your control panel's installation manual.
remove the screw on the back of
Away
Unlock
Lights
Stay
LED
Screw
I
Star
