Resolution RE200-5 Quick Start Manual

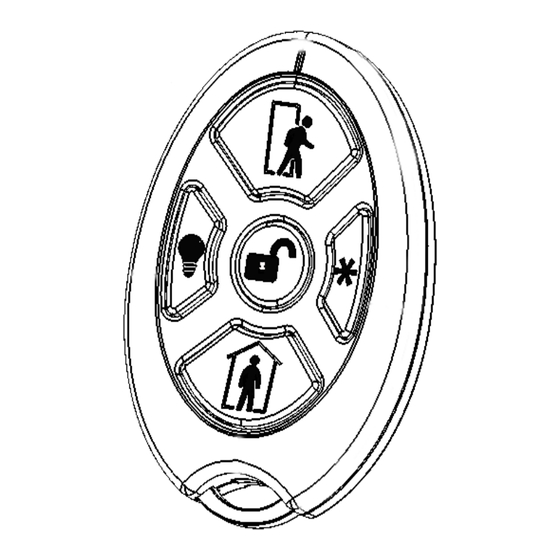

RE200-5 Honeywell Compatible Keyfob
Keyfob
is a portable device used to remotely control a
security panel.
Features
• Support for up to 8 button functions
• Low battery indication
• 2 year warranty
Enroll
by placing the panel into wireless enrollment mode
and pressing a keyfob button multiple times as instructed
by the panel's installation manual. Alternately, the sensor
ID located on the back of the keyfob can be used to
manually enroll the keyfob.
Assign User
• Keyfobs must be assigned to a user to
function properly.
Loop Definitions
• Star = Loop 1
• Unlock = Loop 2
• Arm Away = Loop 3
• Arm Stay = Loop 4
To replace the battery,
the keyfob and unsnap the back from the cover.
Pro Tips
Optional advanced button commands are sent by
pressing the lights button and another button at
the same time. Advanced button commands are
transmitted on a secondary ID which is the sensor's
primary ID with the last digit replaced by a 1.
Advanced Button Commands
• Lights + Star = Loop 1
• Lights + Unlock = Loop 2
• Lights + Away = Loop 3
• Lights + Stay = Loop 4
Fob template programming can be used to enroll the
keyfob. Some older panels require the STAY button
(Loop 4) to be pressed for template programming.
LED blinks when a button press is transmitted.
Verify proper enrollment and operation using your security panel's installation manual.
remove the screw on the back of
Loop 3
Loop 2
Loop 4
LED
Screw
I
Loop 1
