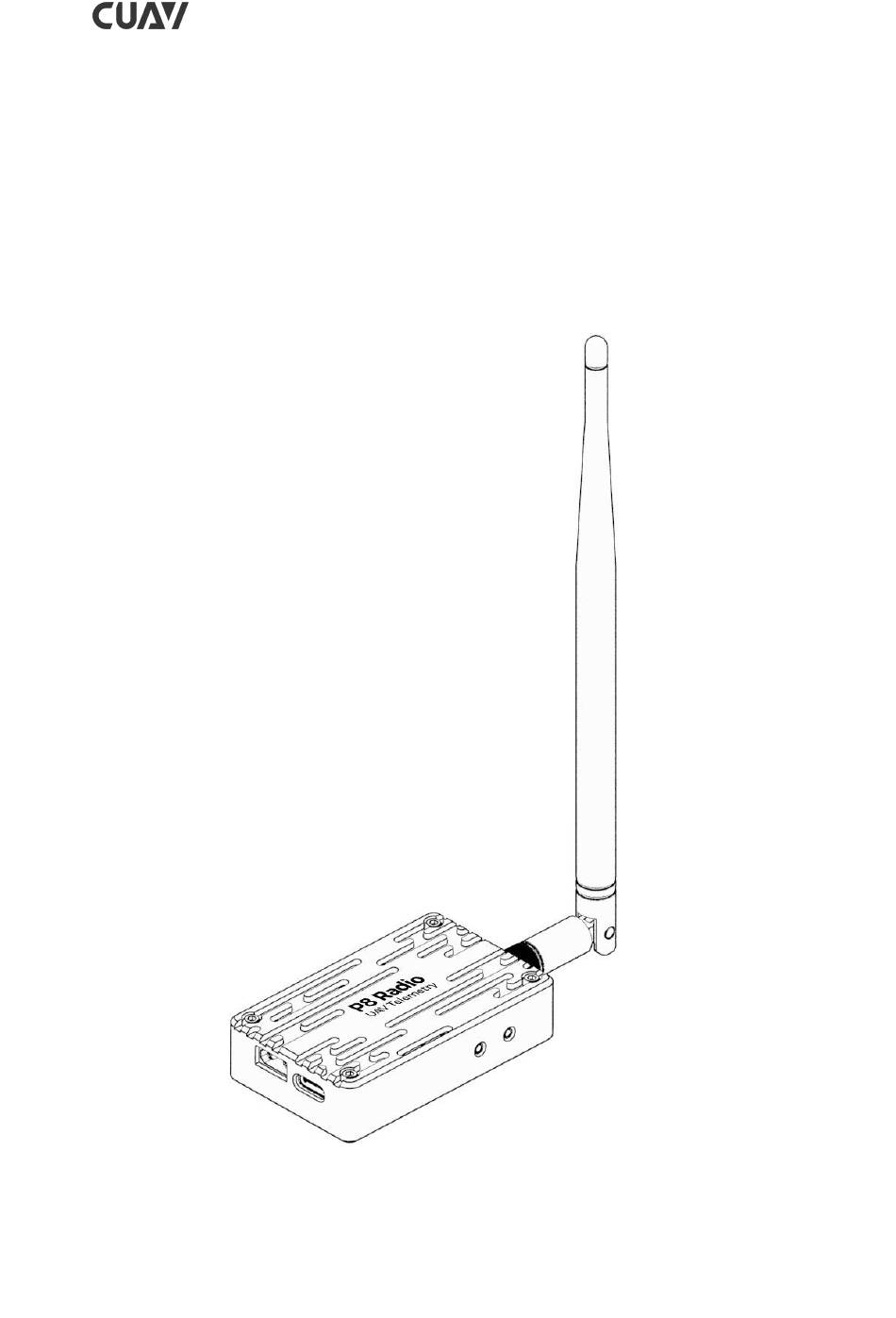

- Page 1 P8 Radio User Manual Latest Update：2021-08-26 - 1 -...
- Page 2 Preface Thank you for purchasing and using CUAV products. If you have any suggestions and feedback on our products or services, please let us know. Press Ctrl and click blue text or mobile phone scan the QR code below to visit CUAV feedback form.
- Page 3 Power Requirement We recommend that you use a 3S-12S battery to power the P8. Both the sky end and the ground end need independent power supply, please ensure that the maximum output current of the power supply is> 2.5A (battery is recommended).
- Page 4 Data transmission [Data]. Ground Station Connection Mission Planner After connecting to the P8, select the correct port in the upper-right corner of the ground station, select 57600 baud rate, and click [CONNECT] to CONNECT to the ground station. Port not recognized? After the P8 is connected, the mouse moves randomly and...
- Page 5 QGroundControl After data transmission is connected, open the QGroundControl and the ground station will automatically identify and connect. If it is not identified, you can manually add it as follows. Click the icon in [QGroundControl]-[communication connection]-[add]] - 5 -...
- Page 6 In the following interface, enter [name] [type] [serial port] and [baud rate], and click OK. Select the connection you just added and Click Connect. Product Specifications Working frequency 840~845MHz - 6 -...
- Page 7 Antenna: SMA inner needle Serial：GHR-06V-S USB: TYPE-C Power: XT30PW-M Operation -40°C~85°C Temperature Weight P8 module;:55g Antenna:31g Total: 86g Size 65mm×40mm×16.5mm Packing List The package list is for reference only. The details are displayed on your purchase page. Name Sky Unit...
- Page 8 Please make sure that the maximum current input at the power port is greater than 2A; Otherwise, the P8 may be stopped; It is recommended that the ground unit use independent power supply instead of flight control power supply (connect V5 + flight control can not use independent power supply).
