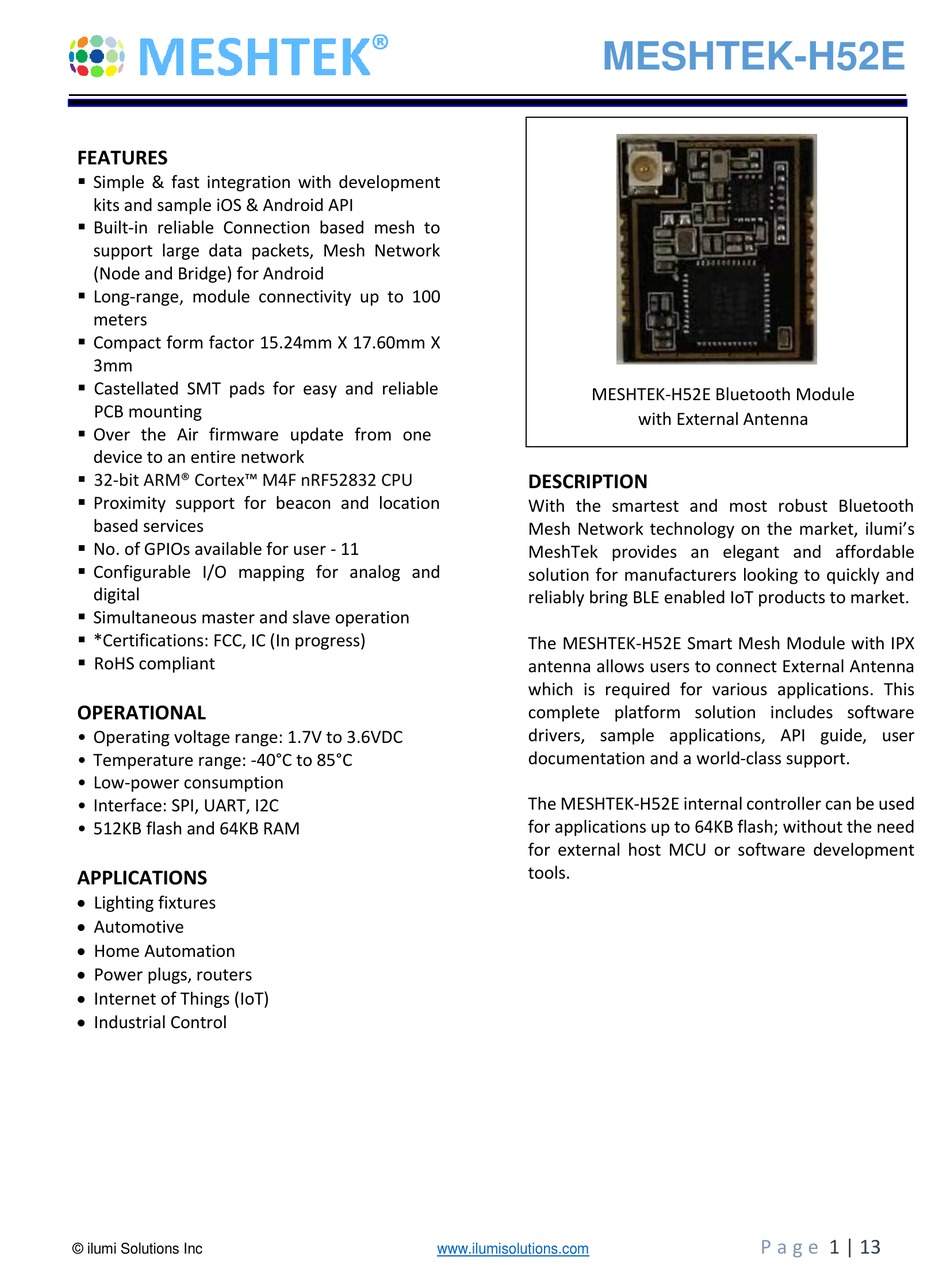

iLumi MESHTEK-H52E Manual

FEATURES
 Simple & fast integration with development
kits and sample iOS & Android API
 Built-in reliable Connection based mesh to
support large data packets, Mesh Network
(Node and Bridge) for Android
 Long-range, module connectivity up to 100
meters
 Compact form factor 15.24mm X 17.60mm X
3mm
 Castellated SMT pads for easy and reliable
PCB mounting
 Over the Air firmware update from one
device to an entire network
 32-bit ARM® Cortex™ M4F nRF52832 CPU
 Proximity support for beacon and location
based services
 No. of GPIOs available for user - 11
 Configurable I/O mapping for analog and
digital
 Simultaneous master and slave operation
 *Certifications: FCC, IC (In progress)
 RoHS compliant
OPERATIONAL
• Operating voltage range: 1.7V to 3.6VDC
• Temperature range: -40°C to 85°C
• Low-power consumption
• Interface: SPI, UART, I2C
• 512KB flash and 64KB RAM
APPLICATIONS
 Lighting fixtures
 Automotive
 Home Automation
 Power plugs, routers
 Internet of Things (IoT)
 Industrial Control
© ilumi Solutions Inc
.
................
www.ilumisolutions.com
MESHTEK-H52E
MESHTEK-H52E Bluetooth Module
with External Antenna
DESCRIPTION
With the smartest and most robust Bluetooth
Mesh Network technology on the market, ilumi's
MeshTek provides an elegant and affordable
solution for manufacturers looking to quickly and
reliably bring BLE enabled IoT products to market.
The MESHTEK-H52E Smart Mesh Module with IPX
antenna allows users to connect External Antenna
which is required for various applications. This
complete platform solution includes software
drivers, sample applications, API guide, user
documentation and a world-class support.
The MESHTEK-H52E internal controller can be used
for applications up to 64KB flash; without the need
for external host MCU or software development
tools.
