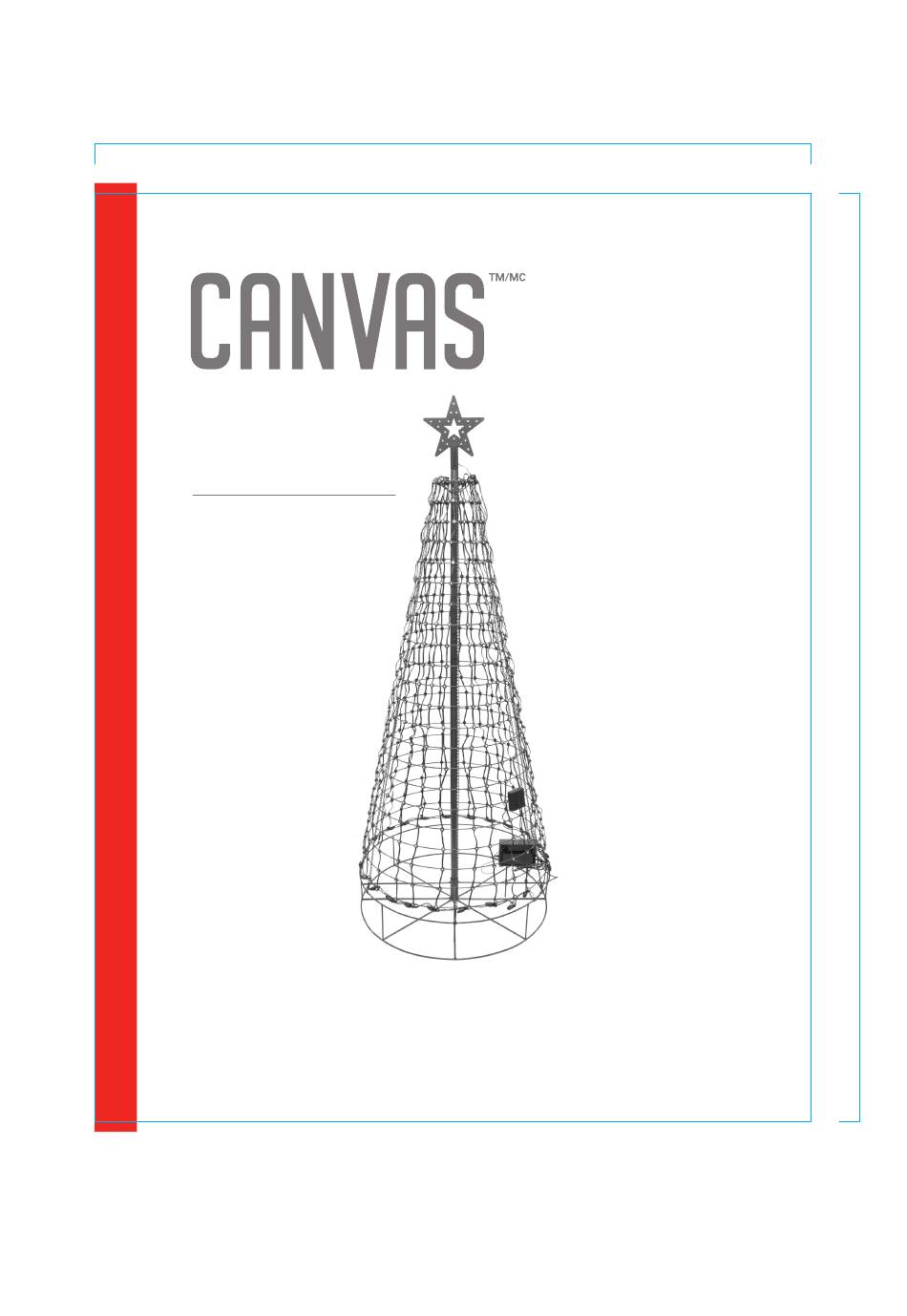

PIXEL TREE
PRODUCT NO. 000-0000-0
REMOTE M ODEL N0. PIXEL-NM
MODEL N0. 151-3568
ASSEMBLY INSTRUCTIONS
Toll-free: 1-888-670-6684
IMPORTANT: Please read this manual carefully before beginning assembly of this product.
Keep this manual for future reference.
8.5"
11"

Advertisement

loading
Need help?

Need help?

Do you have a question about the PIXEL-NM and is the answer not in the manual?

Questions and answers

Related Manuals for Canvas PIXEL-NM

Summary of Contents for Canvas PIXEL-NM

  • Page 1 8.5” PIXEL TREE PRODUCT NO. 000-0000-0 REMOTE M ODEL N0. PIXEL-NM MODEL N0. 151-3568 11” ASSEMBLY INSTRUCTIONS Toll-free: 1-888-670-6684 IMPORTANT: Please read this manual carefully before beginning assembly of this product. Keep this manual for future reference.
  • Page 2 Table of Contents Important Safety Instructions Part List Assembly 5-11 Cleaning and Maintenance Technical Data Warranty Warning! To reduce the risk of serious injury, read the following safety instructions before assembling and using the pixel tree. Caution! Always keep children under close supervision while they are using or around this product.

  • Page 3: Disposal And Recycling

    PRODUCT NO. 000-0000-0 | MODEL NO. 151-3568 USE AND CARE INSTRUCTIONS • When the product is placed on a live tree, the tree should be well maintained and fresh. Do not place on live trees with needles that are brown or break off easily. Keep the tree holder filled with water. •...
  • Page 4 Tree base - 1 Remote control - 1 Collapsible lighted tree frame with 5 pre-programmed songs control box and a power box - 1 Lighted star frame - 1 Support pole - 2 Lawn stake - 4...
  • Page 5 PRODUCT NO. 000-0000-0 | MODEL NO. 151-3568 No tools required (Hammer optional). 2 people recommended for assembly. Retain carton for storage. Step 1 Requires 1 Determine the final display location before assembling the tree. The Tree must be placed on level ground. Place the tree base 1 in the desired location. Step 2 Requires 1, 2 Center and then place the lighted tree frame 2 over the top of the tree base 1.
  • Page 6 Step 3 Requires 1, 4 Insert the bottom pole section 4 (tapered end up) into the tree base 1 as illustrated. Step 4 Requires 1, 2, 4 Align the top pole 4 (tapered end up) toward the center of the tree frame 2 next to the bottom pole 4...
  • Page 7 PRODUCT NO. 000-0000-0 | MODEL NO. 151-3568 Step 5 Requires 2, 4 Raise the tree frame 2 by lifting from the tree top point and place over the top pole 4. Insert the top pole 4 into the pole cap located on the inside top of the tree frame 2 Step 6 Requires 1, 2, 4...
  • Page 8 Step 7 Requires 1, 2, 6 This tree includes 5 pre-programmed songs control box 2. The control box 2 enables the user to play with or without music by using the remote 6 When the tree is turned OFF and then turned back on it will default to the light show with music automatically.
  • Page 9 PRODUCT NO. 000-0000-0 | MODEL NO. 151-3568 To release a twist if chain link is already attached, unhook chain link from the base, apply pressure to the top and bottom of the frame at the section where the twist is located. Move link back into place and then release the frame.
  • Page 10 Step 9 Requires 2, 4 Mounting the speaker box to the tree frame 2 as shown. Step 10 Requires 3 Place the star 3 to the top of the tree.
  • Page 11 PRODUCT NO. 000-0000-0 | MODEL NO. 151-3568 Step 11 To illuminate, fully insert the plug into a working GFCI outlet or an outdoor rated extension cord. Step 12 Requires 1, 5 Push or gently hammer support stakes 5 into the ground securing the tree base 1.

  • Page 12: Remote Control Operation

    REMOTE CONTROL OPERATION Requires 6 Light shows can be played with or without music • Includes handheld remote control • 5 unique programs each synchronized to a song: Jingle Bells • Silent Night • First Noel • We wish you a Merry Christmas •...
  • Page 13 (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement. This CANVAS ™ product carries a two (2) year warranty limited warranty. Santa’s Best agrees to replace the defective product free of charge within the stated warranty period, when returned by the original purchaser with proof of purchase.
