Summary of Contents for Crate TX15
-
Page 2: Table Of Contents

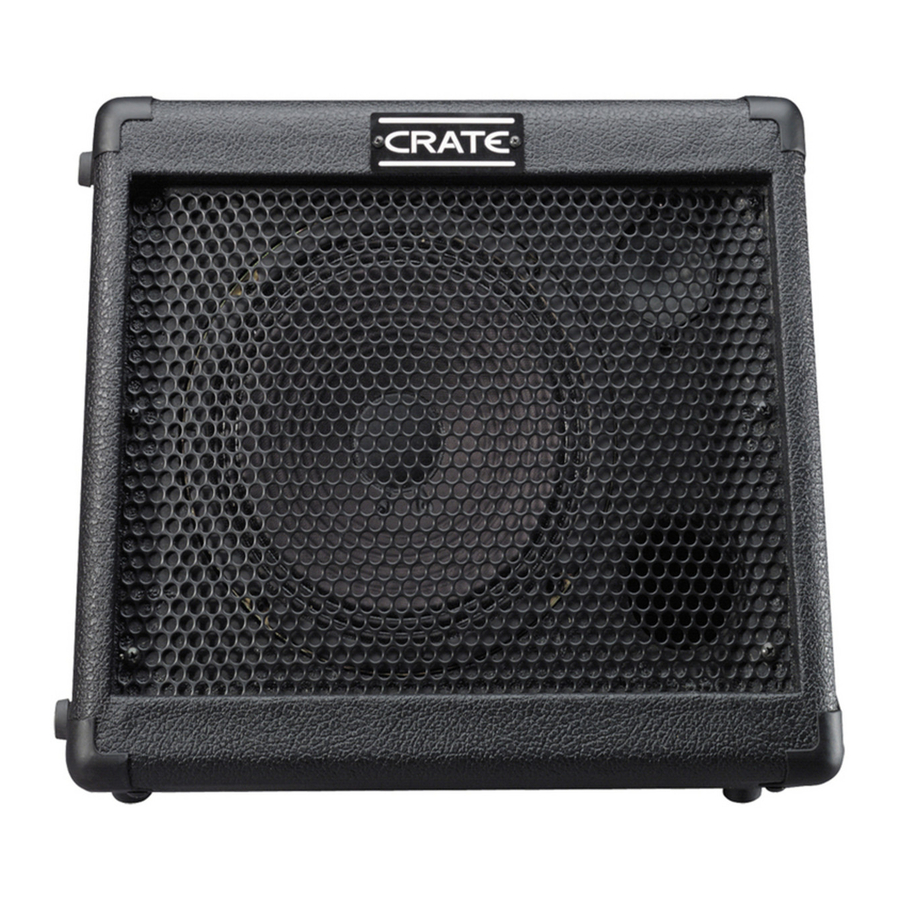

C R A T E T A X I • T X 1 5 CONGRATULATIONS! You are now the proud owner of the Crate TX15 battery powered ampli- fier. At last, you can take your music with you and have great tone on the road. -
Page 3: Features
C R A T E T A X I • T X 1 5 FEATURES: • Two input channels for connecting microphones (high and low Z) and instru- ments • CD input jacks for connecting a CD or tape player, rhythm machine or other background source •... -
Page 4: About The Power Supply
C R A T E T A X I • T X 1 5 ABOUT THE POWER SUPPLY: The TX15 uses a sealed lead-acid 12-volt battery as its internal power source. Unlike ni-cad batteries, this battery has no “memory” – it can be fully recharged at any time, without damage to the battery. -
Page 5: The Front Panel
C R A T E T A X I • T X 1 5 THE FRONT PANEL: 1. INPUT 1: Use this jack to connect a low or a high impedance micro- phone to the amplifier by means of a shielded signal cable. 2. -
Page 6: The Rear Panel
NOTE: The 15VDC charger will recharge the amplifier’s battery only when the amp is not being played. If the amplifier is being played while the charger is con- nected and plugged into a source of AC power, the battery will nei- ther charge or discharge. -
Page 7: System Block Diagram
C R A T E T A X I • T X 1 5 SYSTEM BLOCK DIAGRAM: INPUT VOLUME INPUT VOLUME LIMITER POWER SUPPLY CHARGER TONES LO LO POWER SMART CHARGER CHARGING CIRCUIT FUSE CHARGING INDICATOR BATTERY INPUT TWEETER WOOFER HEAD PHONES BATTERY... -
Page 8: Technical Specifications
Do not use abrasive cleansers which could damage the finish. Crate continually develops new products, as well as improves existing ones. For this reason, the specifications and information in this manual are subject to change without notice.
