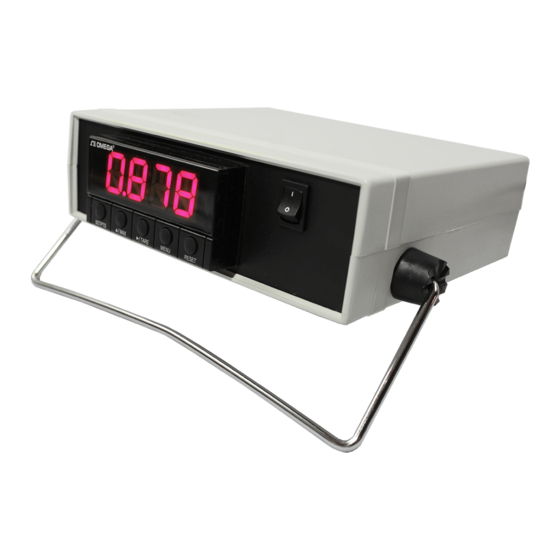

This guide will outline the steps necessary to change the input voltage between 115VAC or 230VAC. A
soldering kit and skills required for soldering will be required.
1.0 Disassembly
1. Disconnect the main power.

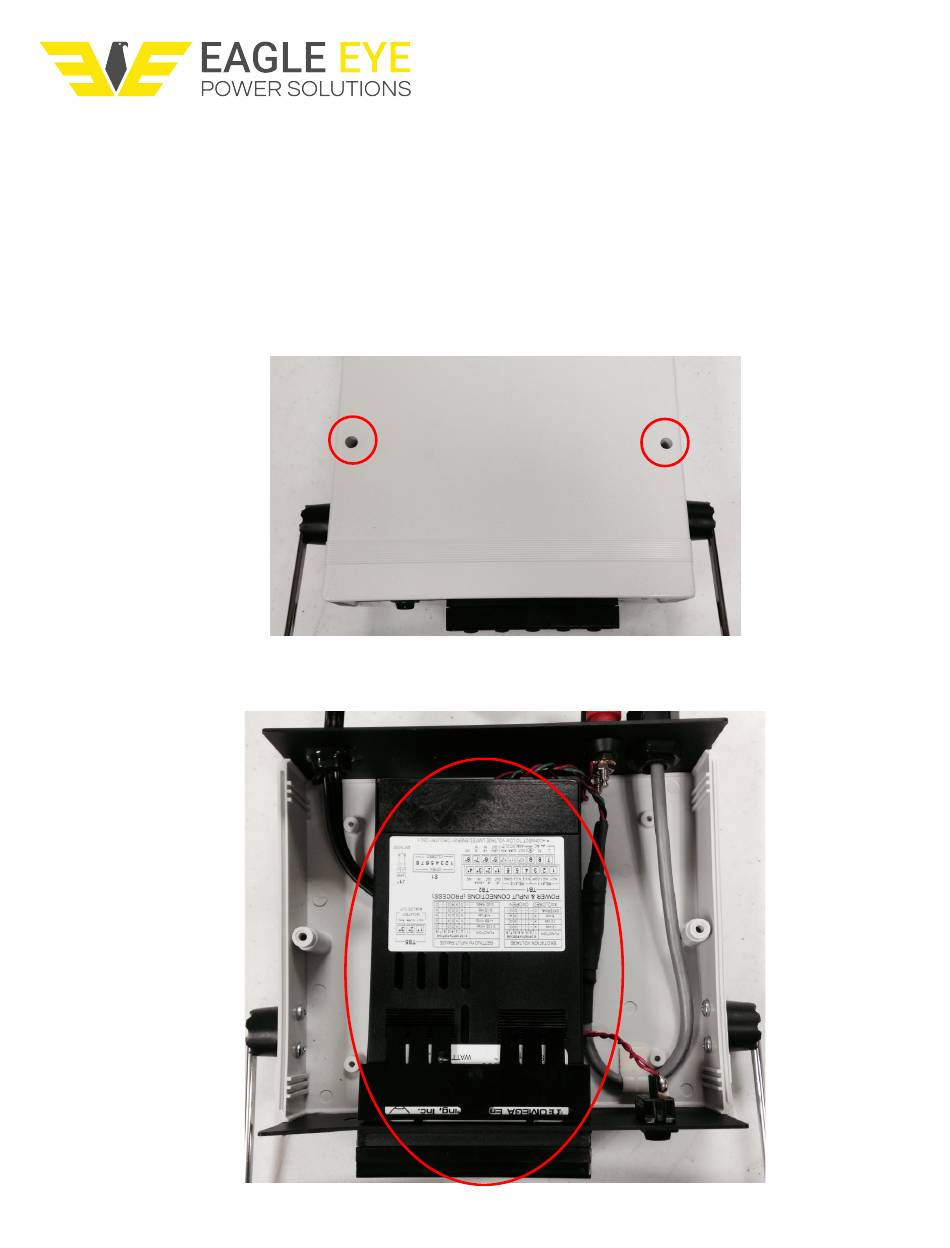

2. Open the SG-100M by removing the two screws on the bottom of the unit as shown in red.
3. Remove the Omega Panel Meter from the SG-100M housing as shown in red.
Eagle Eye Power Solutions, LLC | Tel: 1-877-805-3377 | Fax: 1-414-962-3660 |
SG-100M Input Voltage Adjust
www.eepowersolutions.com V1.0
Advertisement
Related Manuals for Eagle Eye Power Solutions SG-100M
Summary of Contents for Eagle Eye Power Solutions SG-100M
- Page 1 1.0 Disassembly 1. Disconnect the main power. 2. Open the SG-100M by removing the two screws on the bottom of the unit as shown in red. 3. Remove the Omega Panel Meter from the SG-100M housing as shown in red.
- Page 2 6. Lift the back of the main PCB board upwards and let it slide out of the black plastic case. 7. Locate the three power jumpers, W1, W2, & W3 on the side of the board Eagle Eye Power Solutions, LLC | Tel: 1-877-805-3377 | Fax: 1-414-962-3660 | www.eepowersolutions.com Rev. 03.14.A...
- Page 3 W1 and W3 should not. W4 jumper is not used. W3 W2 9. Solder the correct power jumper for the input voltage desired. 10. After the soldering complete, re-assemble the unit. Eagle Eye Power Solutions, LLC | Tel: 1-877-805-3377 | Fax: 1-414-962-3660 | www.eepowersolutions.com Rev. 03.14.A...
