1/72 scale detail set for Revell kit No.05002 • sada detailů pro model 1/72 Revell 05002
ORIGINAL KIT PARTS
PŮVODNÍ DÍLY STAVEBNICE
?
84
83
Film A
10
Kit part 6
88
2
8
101
S-100 Schnellboot Flak 38

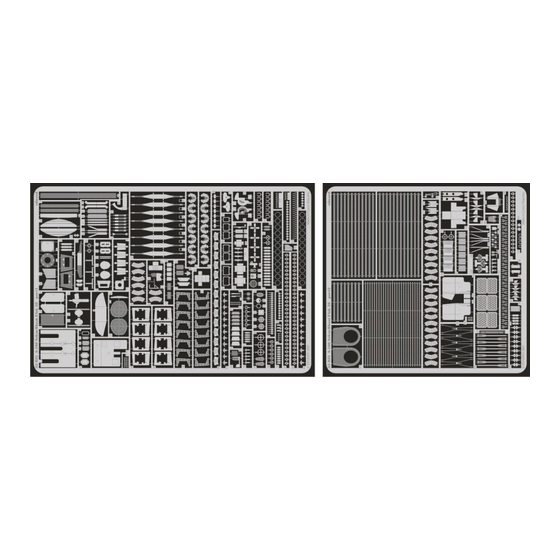

PHOTO-ETCHED PARTS
LEPTANÉ DÍLY
Fill
36
Kit part 2
116
24
Kit part 5
Kit part 72
Correct position
Correct position
Film
10
7
104
Kit part 5
Kit part 4
9
116
Kit part 4
21
20
27
Kit part 71
APPLY EXPRESS MASK AND PAINT BEFORE GLUING
POUŽÍT EXPRESS MASK NABARVIT PŘED SLEPENÍM
SYMETRICAL ASSEMBLY
SYMETRICKÁ MONTÁŽ
REMOVE
ODSTRANIT
GRIND
OBROUSIT
DRILL HOLE
VRTAT OTVOR
PARTS TO BE REMOVED
DÍLY K ODSTRANĚNÍ
Film B
Kit part 7
99
4
3
88
Kit part 5
2 pcs
53 033
eduard
53 033
BEND
OHNOUT
?
OPTION
VOLBA
REPLACE
NAHRADIT
FILL
TMELIT
9
Kit part 4
88
2 pcs
2 pcs
116
2 pcs
71
70
35
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Eduard S-100 Schnellboot Flak 38
Summary of Contents for Eduard S-100 Schnellboot Flak 38

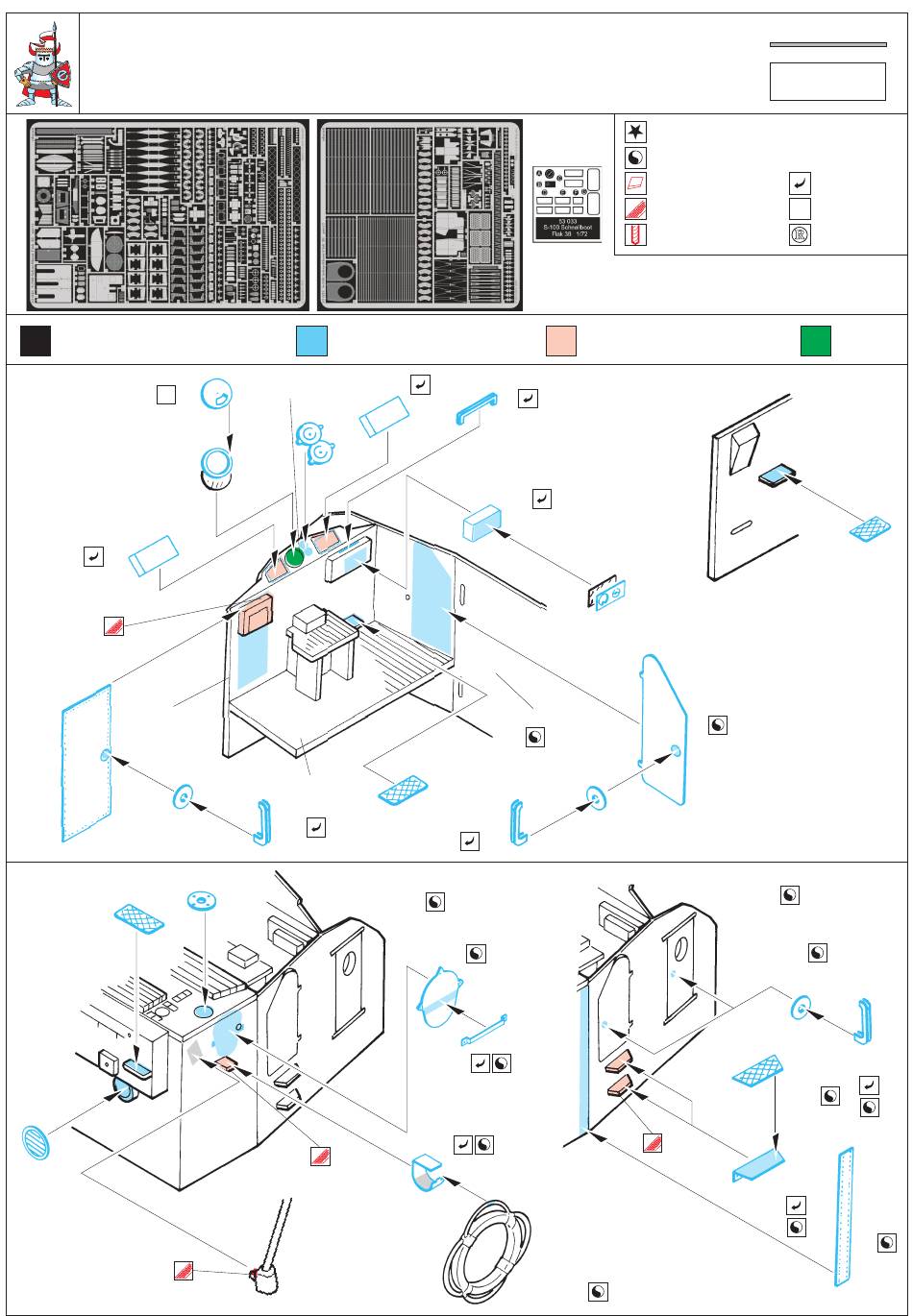

- Page 1 53 033 eduard S-100 Schnellboot Flak 38 53 033 1/72 scale detail set for Revell kit No.05002 • sada detailů pro model 1/72 Revell 05002 APPLY EXPRESS MASK AND PAINT BEFORE GLUING POUŽÍT EXPRESS MASK NABARVIT PŘED SLEPENÍM SYMETRICAL ASSEMBLY SYMETRICKÁ...
- Page 2 53 033 Kit part 10 Film F Film C - F 107, 108, 109, 110 Film F Kit part 10 Film E Film C Film D Kit part 10 Kit part 10 Kit part 53 2 pcs Open position Film G 2 pcs 2 pcs See your references!
- Page 3 53 033 8 pcs 2 pcs plastic = 0,5mm l = 1mm 2 pcs Kit part 18 Kit part 21 Kit part 19 Kit part 20 2 pcs Kit part 123 2 sets wire Kit parts 124, 125 plastic = 0,8mm l = 2,5mm wire = 1mm...
- Page 4 53 033 Kit part 48 See your references! 2 pcs 2 pcs 2 pcs 14 pcs 14 pcs Kit part 140 Kit part 141 4 pcs Kit part 84 4 sets 2 pcs 3 pcs Kit part 102 Kit part 71 Kit parts 87 ( 88 ) 2 pcs...
- Page 5 53 033 Kit part 92 2 pcs Kit parts 49 Kit parts 50 2 pcs 2 pcs 3 sets Kit part 111 Kit part 108 Kit part 60 Kit part 112 plastic = 0,5mm l = 1mm Kit part 121 Kit part 121 Kit part 120 Kit part 116...
- Page 6 53 033 plastic = 1mm 3 pcs l = 20mm Kit parts 130, 131, 132,133, Kit part 134 plastic = 0,5mm l = 1mm Kit part 139 Kit part 138 plastic = 1,5mm l = 3mm 2 pcs Kit part 139...
- Page 7 53 033 Kit part 145, 146, 147, 148 Kit part 146 Kit part 145 Kit part 154 2 pcs Kit part 155 Kit part 145, 146 Kit part 149 Kit part 156 Kit part 158 Kit part 157 2 pcs Kit part 151 8 pcs Kit part 150...
- Page 8 Kit parts 79, 80 Kit parts 142, 143 3 pcs 3 pcs 2 pcs Thread References : Squadron/Signal No.4018 - Schnellboot in Action Osprey Publ., New Vanguard No.59 - German E-boats 1939-45 www.bismarck3d.prv.pl Made in Czech Republic © EDUARD M.A. 2007 www.eduard.com...
