Dale Tiffany GF12144 Assembly Instructions

ASSEMBLY INSTRUCTIONS:
Item No: GF12144

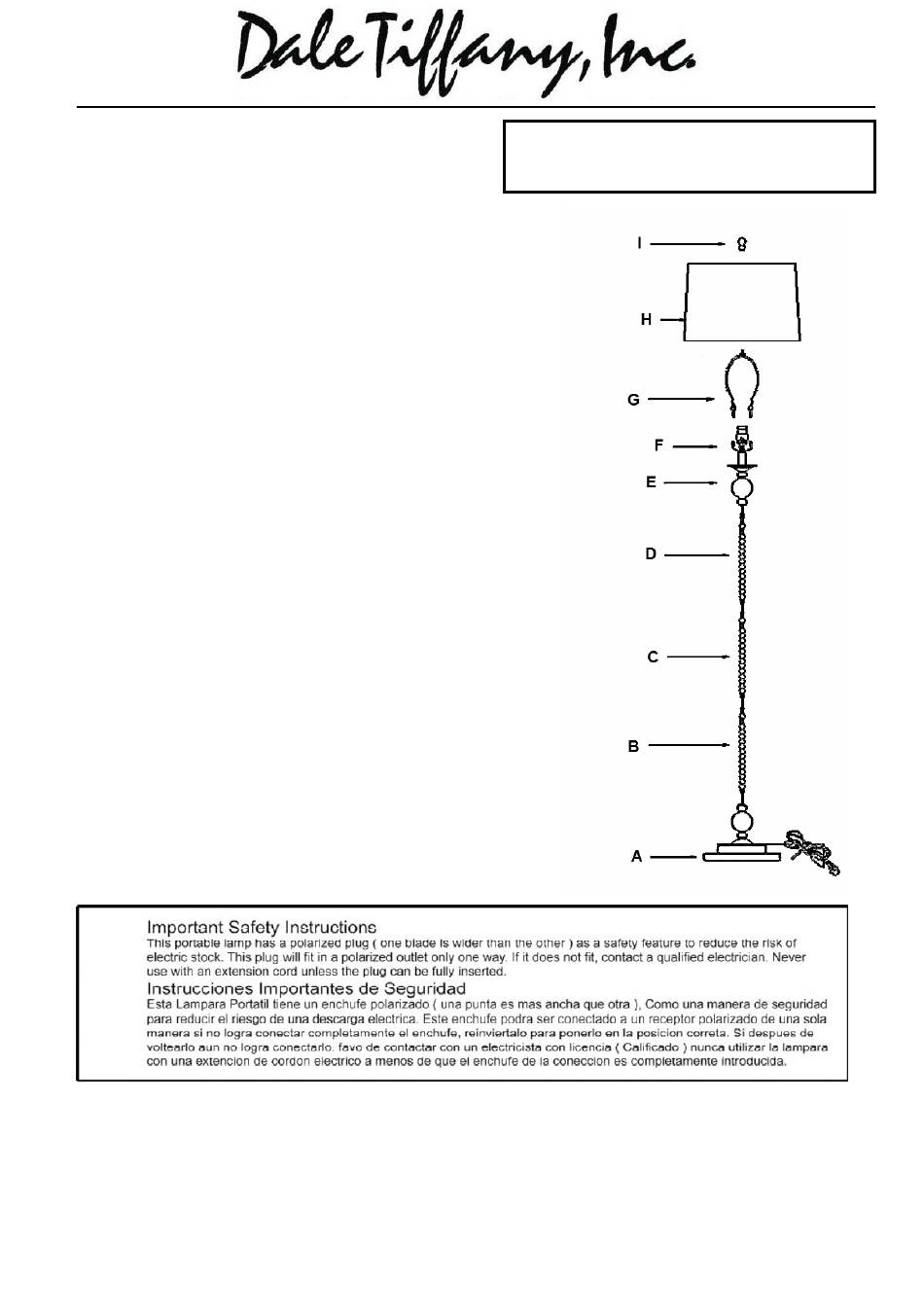

1. Place the lamp base ( A ) on a level surface.
2. Screw the lower column (B) into the lamp base (A).
3. Screw the center column (C) into the lower column (B).
4. Screw the upper column (D) into the center column (C).
5. Screw the socket assembly ( E ) into the upper column ( D).
6. Insert the harp (G) until it sits firmly in the saddle ( F ).
7. Place the shade (H) over the end of the harp (G) and
tighten with the finial (I ) securing the shade in place.
9. Insert bulb into the bulb socket.
Uses (1) maximum 100 WATT "Type A" Bulb
Or (1) maximum 23WATT CFL Bulb
(Bulb not included)

Cleaning of your lamp

Unplug lamp, wipe with damp cloth.
Do not use abrasives.
*SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE.
Made in China
FOR RETURN SHIPPING PURPOSES:
PLEASE RETAIN ORIGINAL PACKAGING
TO MINIMIZE DAMAGE.
Revision – 09/12/12
