Summary of Contents for NeuroSky MindWave Mobile

  • Page 1 MindWave Mobile: User Guide February 15, 2017...
  • Page 2 LIMITATION, DAMAGES FOR LOSS OF PROFITS, BUSINESS INTERRUPTION, COST OF REPLACEMENT GOODS OR LOSS OF OR DAMAGE TO INFORMATION) ARISING OUT OF THE USE OF OR INABILITY TO USE THE NEUROSKY PRODUCTS OR DOCUMENTATION PROVIDED, EVEN IF NEUROSKY HAS BEEN ADVISED OF THE POSSIBIL- ITY OF SUCH DAMAGES.
  • Page 3: Table Of Contents

    Contents Introduction to the MindWave Mobile MindWave Mobile Product Contents ......MindWave Mobile headset .
  • Page 4: Introduction To The Mindwave Mobile

    Mobile reports the wearer’s mental state in the form of NeuroSky's proprietary Attention and Medita- tion eSense™ algorithms, along with raw wave and information about the brainwave frequency bands. e NeuroSky MindWave Mobile can be used with supported video games, research software, or a number of other applications for an enhanced user experience.

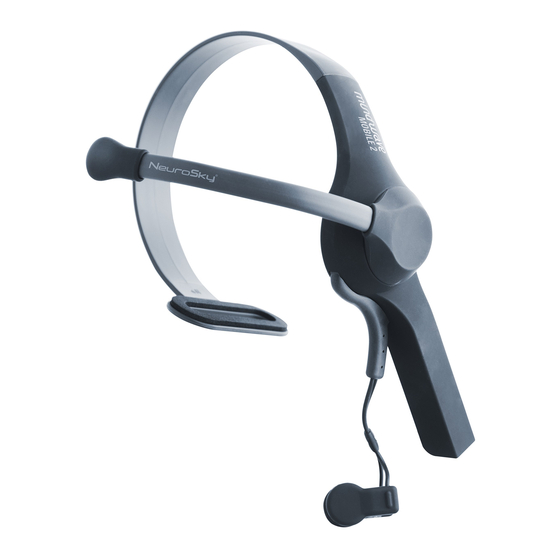

  • Page 5: Mindwave Mobile Headset

    Chapter 1 – Introduction to the MindWave Mobile MindWave Mobile headset MindWave Mobile headset February 15, 2017 | © 2015 NeuroSky, Inc. All Rights Reserved.
  • Page 6: Setting Up Your Mindwave Mobile

    Wireless Replacing The Battery e MindWave Mobile headset requires 1 AAA battery to operate, which provides 8 hours of run time. To install or replace the battery, slide open the battery cover. Remove any existing battery within and replace with a new AAA battery, making sure the polarity +/- are aligned correctly.
  • Page 7: Power

    To turn the MindWave Mobile off, slide the switch back to the OFF position. Figure 2.1: LED Light e MindWave Mobile's LED light has has two colors: red and blue. Refer to the chart to see what state the MindWave is in. Light...
  • Page 8: Bluetooth Pairing

    • Turn on the headset. e Blue LED light will be turned on. Now you can pair the headset in anytime. * Important: ere's no pairing mode on MindWave Mobile+, the headset is ready pair when turned on. Please do not push the power switch too hard to reach the "On/Pair" position.
  • Page 9: Wireless Connection Troubleshooting

    USB extension cable (not included) Note: If problems still persist, re-run the MindWave Mobile Application Disc setup to download the latest version of the software, or visit http://support.neurosky.com or email support@neurosky.com Wireless Connection Troubleshooting February 15, 2017 | ©...
  • Page 10: Using Your Mindwave

    Fitting the MindWave Mobile e MindWave Mobile is more than your average headset. It has the ability to use your brainwaves for exciting new applications. Important: In order to take full advantage of these functions and features of the MindWave Mobile, it must rst be properly worn.
  • Page 11 If this does not work, check that your head is not within a few feet of a strong electrical device (like a laptop adapter or an electrical outlet). Fitting the MindWave Mobile February 15, 2017 | © 2015 NeuroSky, Inc.
  • Page 12: Neurosky Technology Overview

    Alertness, agitation ThinkGear inkGear is the technology inside every NeuroSky product or partner product that enables a device to interface with the wearers’ brainwaves. It includes the sensor that touches the forehead, the contact and reference points located in the ear clip, and the on-board chip that processes all of the data. Both the raw brainwaves and the eSense Meters (Attention and Meditation) are calculated on the inkGear...
  • Page 13: Esense Meter - General Information

    Chapter 4 – NeuroSky Technology Overview eSense Meter - General Information e eSense meters are a way to show how effectively the user is engaging Attention (similar to con- centration) or Meditation (similar to relaxation). Like exercising an unfamiliar muscle, it may take some time to gain full pro ciency with each of the eSense™...
  • Page 14: Attention Esense

    Chapter 4 – NeuroSky Technology Overview ATTENTION eSense e eSense Attention meter indicates the intensity of a user's level of mental “focus” or “attention”, such as that which occurs during intense concentration and directed (but stable) mental activity. Its value ranges from 0 to 100. Distractions, wandering thoughts, lack of focus, or anxiety may lower the Attention meter level.
  • Page 15: Additional Products

    Chapter 5 Additional Products To nd new and exciting ways to unlock the full potential of you MindWave, visit the NeuroSky Store for additional software and applications: http://store.neurosky.com NeuroSky's Development Tools e NeuroSky's Development Tools is a collection of drivers, sample code, and documentation de- scribing how to develop applications for several software platforms, including PC, Flash, and even lower level platforms such as microcontrollers like the Arduino™.
  • Page 16: Maintenance

    • Do not expose the MindWave to temperatures above 140°F (60°C) • Dropping or throwing the MindWave may cause damage to the MindWave. • Remove the battery from the MindWave when not in use for extended periods of time. February 15, 2017 | © 2015 NeuroSky, Inc. All Rights Reserved.
  • Page 17: Troubleshooting And Support

    I still have a problem, or my problem is not covered by this Troubleshooting section. For further technical support, please contact NeuroSky Support at http://support.neurosky.com email support@neurosky.com. February 15, 2017 | © 2015 NeuroSky, Inc.
  • Page 18: Safety And Regulations

    Changes or modi cations not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. February 15, 2017 | © 2015 NeuroSky, Inc. All Rights Reserved.
