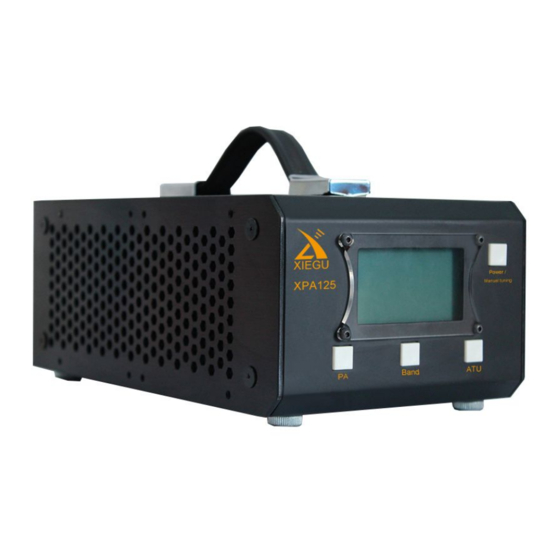

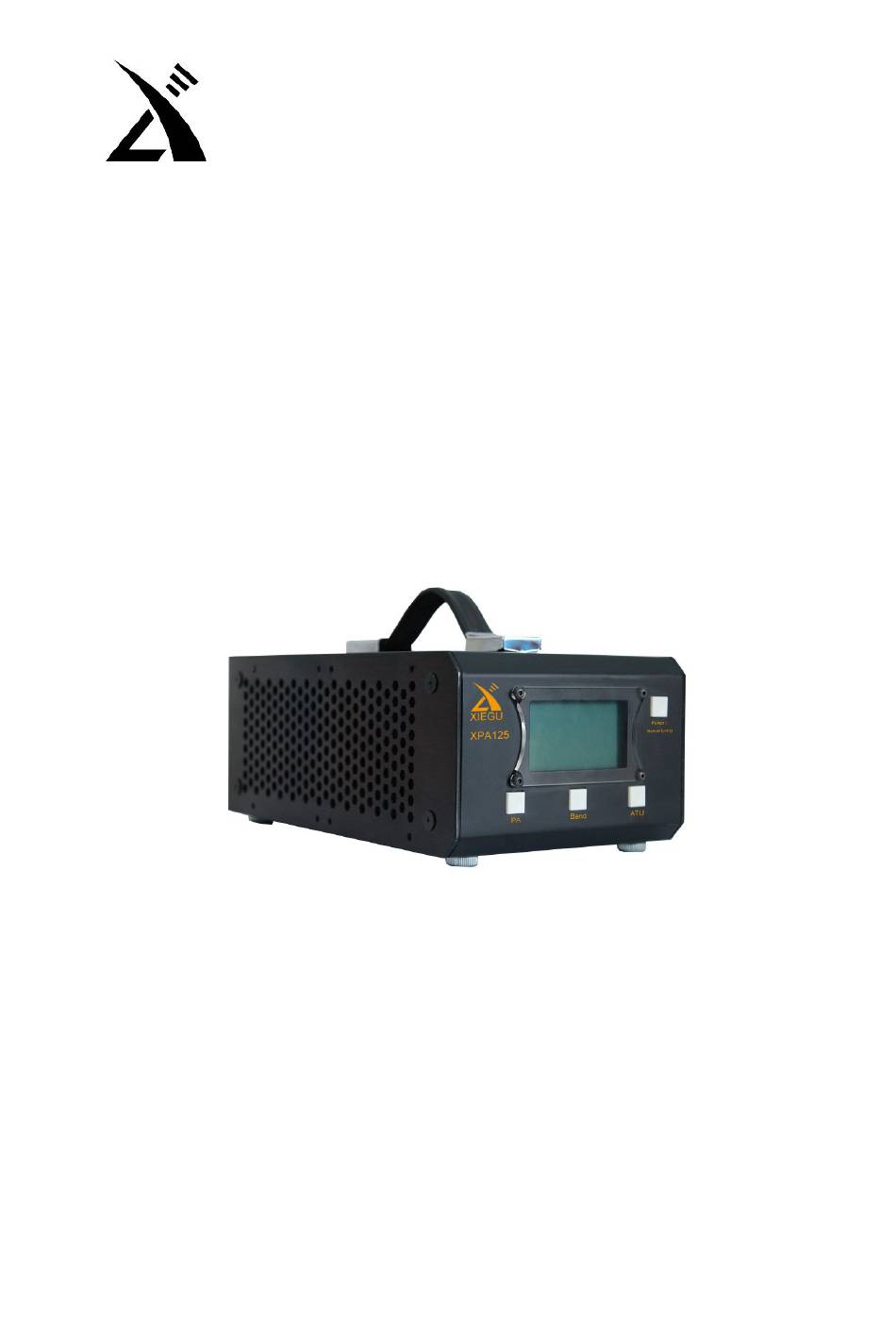

- Page 1 XIEGU Power amplifier XPA125 Operating Manual Chongqing XieGu Technology Co.,Ltd 4th floor, building B, No. 12, Baoshi Road , Jiaoyitang, Tangxia town, Dongguan, China. Zip Code: 523723...
-
Page 2: Important Reminder
X5105) [ALC control function] Packing list: ① XPA125......1 ② Power supply cable....1 ③ Communication line.... .1 ①... -
Page 3: Product Specifications
Parameters of XPA125 1.1 Basic parameters: Amplified frequency range: 0.5~50MHz Maximum output power: 125W Maximum operating ambient temperature: 55℃ Whole gain: 13dB (+ 2dB) Working voltage: DC 12~14.5V Current parameter: position in readiness @Max 550mA Transmit: 30A@Max 1.2 ATU parameters: Tuning frequency range: 1.8M~30M... - Page 4 2 Equipment description 2.1 Front panel button definition： A. PA function key，in the "BYPS" state, press the key, enter the "INUSE" state; in the "INUSE" state, press the key to enter the "BYPS" state B. Band set button, press the button can set the LPF band and working mode C.
- Page 5 switch function； in TX mode, press the key quickly, you can force the tuning; in protection mode, press the key quickly, you can remove the protection E. Screen display 2.2 Display information description A: input SWR display supply voltage display C: PA operating current D：PA temperature display E：output SWR display...
- Page 6 F：Input power display，maximum input power is 8W G：PA display ("BYPS" represents the current state in the through state, without PA access, "INUSE" represents the current state in the amplification, PA access) H: When the status of the work shows RX, said the host into the receiving mode, when the state of work shows TX, said the host into the transmit mode I：LPF band display，"XXm AUTO"...
- Page 7 ERR:2 output power High ERR:3 current High ERR:4 temperature High ERR:5 voltage High ERR:6 Fan Stop working ERR:7 Swr High ERR:9 Atu Tun Fail ERR:10 Gain ERR(The set band of XPA125 does not apply to the current transmit frequency) ~ 6 ~...
- Page 8 2.4 Host back panel interface： A. Output interface B. Power interface C. XPA125 safety socket (maximum current 30A) D. Ground E. Serial port communication interface (can be used for the firmware upgrade, etc.) F.
- Page 9 3 Equipment operation instructions Connect the power line, the communication line and the input signal line, after the confirmation, turn on the XPA125. 3.1 PA functional instructions 1 Press the PA function button (press once again to close the PA...
-
Page 10: Band Selection
2 Screen display PA access 3 Press the transmit button of the host (such as X108G, X5105). 4 Output power can be observed (antenna to keep matching) 3.2 ATU function instructions (applicable to the case which antenna and the band does not match) 1 Press the ATU enable button (press the button again to close the ATU function) 2 Set your host (such as X108G) to CW mode, power set to 5W... - Page 11 this menu using cycle mode). 3.4 Warning release 1 Release the host's send button 2 Observe the warning content (according to the actual situation to deal with related issues) 3 Press the warning release button (the power button) to remove the warning.
-
Page 12: General Troubleshooting
4 General troubleshooting The following points out the troubleshooting for the general problem, if you still can not solve the problem, please do repair, please do not disassemble the machine, or you will lose the warranty. Fault description Possible reasons Resolvent No connection power cord Connecting power cable... - Page 13 When buyer from the point of sale who has obtained the authorization of XIEGU to buy our products, in more than two weeks and within a year, if host, multifunctional microphone, shell structure of the host, the USB data lines, power lines appear the performance fault of non-human damage, the buyer have the right to enjoy free repair service.
- Page 14 changes； The damage is not caused by the material or the quality of production； Due to improper use, causing damage to the shell or other external components； Use incorrect connection or match Kit. Contact us: service@cqxiegu.com ~ 13 ~...
- Page 15 XIEGU www.cqxiegu.com...
