Summary of Contents for Laserworld PS-29.000RGB CT

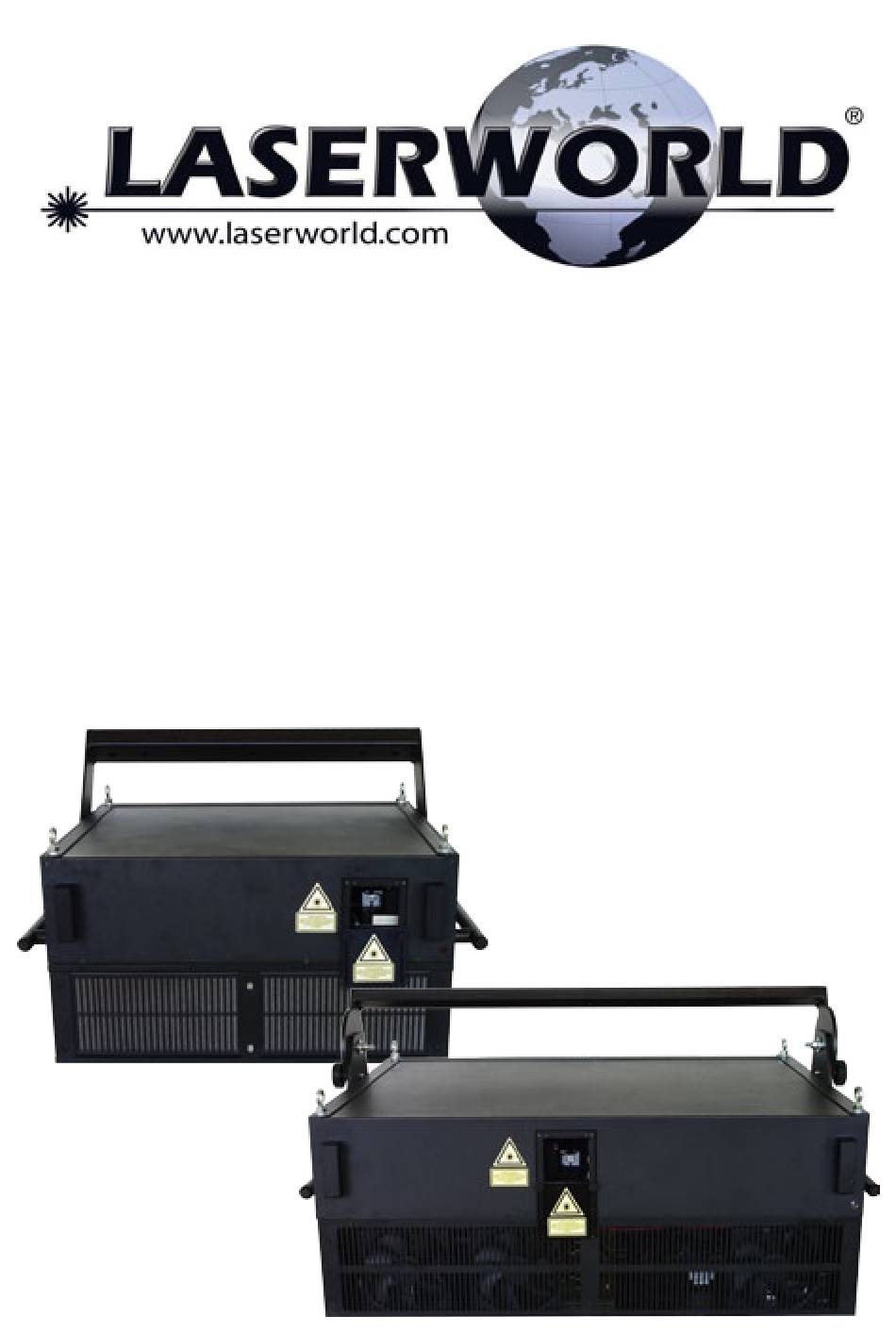

- Page 1 Manual PS-29.000RGB CT PL-20.000RGB CT, PL-42.000RGB CT, PL-20.000G CT Please read this manual carefully prior to product operation! rev. 10/2012 ns...
-
Page 2: Table Of Contents
These modifications do not necessarily have to be recorded in each case. This manual and its information have been made with due care. Laserworld AG cannot, howe- ver, take any responsibility for errata, bugs, or the resulting damages. -
Page 3: Scope Of Delivery & Details
Manual: Pure Sapphire / Purelight high power 1. Scope of delivery & details Please check if all listed parts are included and undamaged. Included in delivery: 1 x laser projector 1 x power cable 1 x manual 2. Preliminary warning notices 1. -
Page 4: Service Notes
Check temperature after approx. 30 minutes with each new installation. • As for troubleshooting, please check the If necessary install the projector at a FAQ on our website www.laserworld.com place with different temperature. Keep the device dry. Protect it from page 4 / 8... -
Page 5: Warnings And Other Notices On The Device
Manual: Pure Sapphire / Purelight high power • Removal of the warranty label as well as damages to the device caused by improper handling, neglect of the sa- fety instructions and service notes will void the warranty. 6. Warnings and other notices on the device Please read manual before operation Laser radiation! Output power... -
Page 6: Operation
Manual: Pure Sapphire / Purelight high power 8. Operation ILDA operation mode The laser system is controlled over ILDA control signal. Plug in the ILDA cable to the ILDA-in interface at the unit. Scan Safety This units has a special two-mode scan safety: It can be operated in scan fail safety mode, that prevents the occurance of dangerous radiation in case of malfunction. -
Page 7: Final Statement
We cannot inform you in case of changes of this manual. If you have any questions, please contact your dealer. For service please contact your dealer or Laserworld. Please use only spare parts of Laserworld. Subject to change without notice. Because of the vast amount of data we cannot guarantee any correctness of given information. - Page 8 Scan angle: 70° max. Operation modes: ILDA PS-29.000RGB CT: ca. 5.5mm / <4mrad (full angle divergence) PL-20.000RGB CT: ca. 5.5mm / <2mrad (full angle divergence) Beam: PL-42.000RGB CT: ca. 5.5mm / <2mrad (full angle divergence) PL-20.000G CT: ca. 5.5mm / <2mrad (full angle divergence)
