CABAC HNS050MD Owner's Manual

HNS050MD
OWNER'S MANUAL
1. FEATURES
• Switch the light ON touch free
• If the room is dark (<20 lux) and the HNS050MD is connected to a Cabac S-Click timer, movement will trigger
it to turn the light ON for a programmed amount of time
• Ideal for spaces with natural light such as meeting rooms, hallways, offices, laundries and garages
• Detects motion up to 2m from the sensor
• Must be used with Cabac S-Click range of 2-Wire or 3-Wire Timer Switches
• Turns lights ON only in low light conditions - saving power
• Timer switch remains usable as normal
• Uses timer switch to control time
• Extremely low <100 mW standby power consumption
• Compatible with HPM and Clipsal wall plates – lenses included
• 3-Wire requires neutral
2. OPERATING CONDITIONS
• Operating Voltage:
• Operating Temperature:
• Certified Standards:
• Maximum Load:
Note: Operation at temperature, voltage or load outside of the specifications may cause permanent damage to the unit.
3. COMPATIBLE SWITCHES
The HNS050MD must be used with one of the timer switches listed below. It cannot be used on its own.
• HNS410TM Minute Timer 2-Wire
• HNS420TM Hourly Timer 2-Wire
• HNS440TM Minute Timer 3-Wire
• HNS450TM Hourly Timer 3-Wire
4. OPERATION
The HNS050MD is a combination of passive infra-red motion and light level detector that detects motion up to
2m from the sensor. The HNS050MD is a sensor and if the room is dark (<20lux) will trigger the Cabac S-Click
timer to turn the light ON at the first instance of movement for a fixed amount of time - offering both hands
free switching and power savings. See Section 3 for compatible products.
When the HNS050MD detects motion in a darkened room or hallway it will trigger the connected timer switch.
The room or hallway needs to be fairly dark before the sensor will trigger the timer and turn the light ON. The
light can always be turned on directly at the timer switch. The length of time the light stays on is set on the
timer switch.
When used with the HNS410TM or HNS420TM timers, the lights will flash briefly about 1 second after motion is
detected, before turning on for the set timing period.
Note: This manual was correct at the time of manufacture. For the latest version of the manual and any technical or
safety updates refer to the website:- cabac.com.au, cabac.co.nz or scan the QR code with a mobile phone.
Customer Care Australia P: 133 122 F: 1300 303 310 E: sales@cabac.com.au W: cabac.com.au
A: 8 Distribution Pl, Seven Hills NSW 2147
Customer Care New Zealand P: 8 0077 6969 F: 8 0088 6969 E: sales@cabac.co.nz W: cabac.co.nz

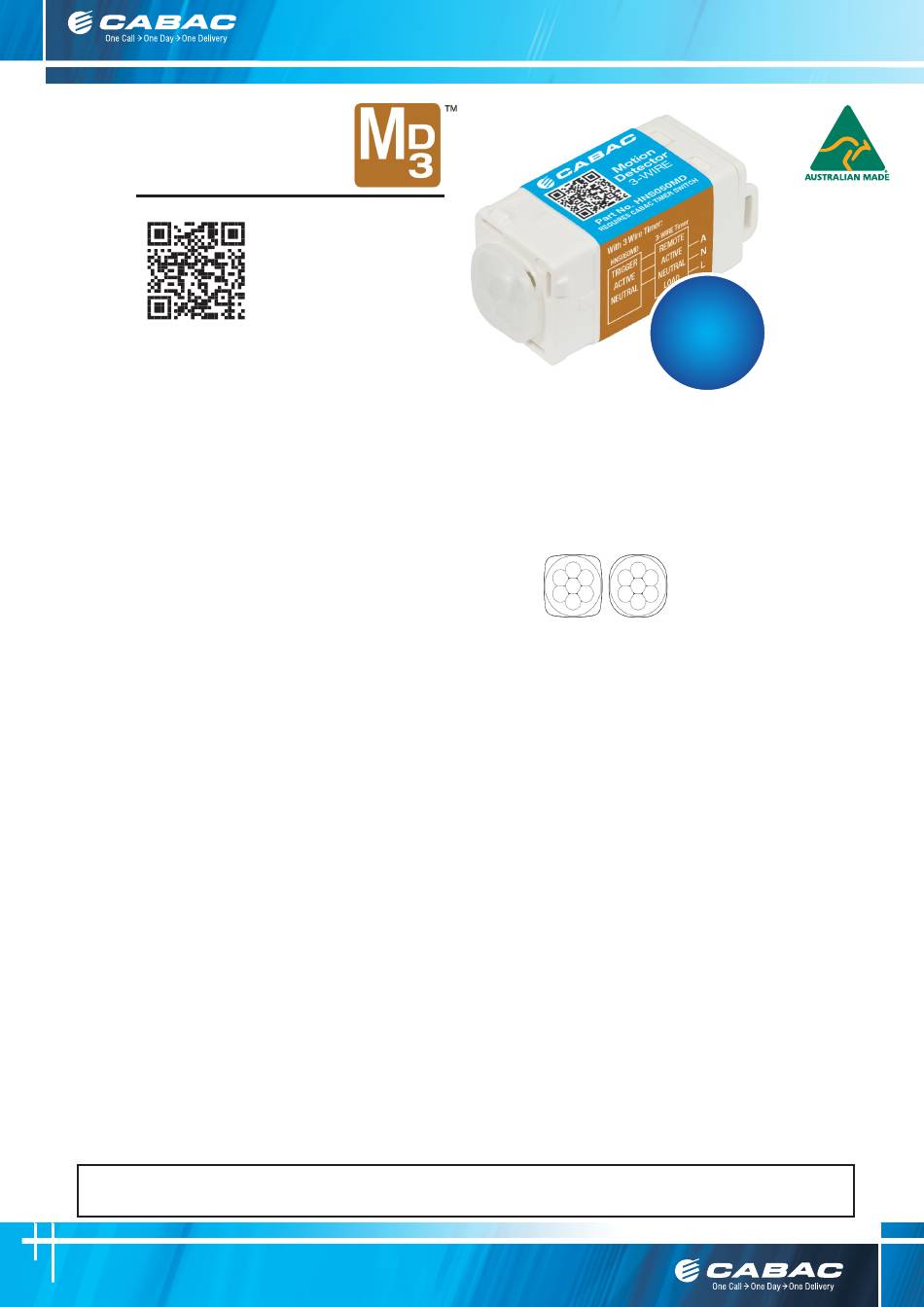

HNS050MD MOTION DETECTOR 3-WIRE
Scan our QR code
with your phone to go
directly to our website
for technical information
220 – 240Va.c. 50Hz
0 to +50°C
CISPR15, AS/NZS 3100
As per connected Cabac Timer Switches
REQUIRES
CABAC TIMER
SWITCH
CP14117 Rev 1, 24 APRIL 2015
