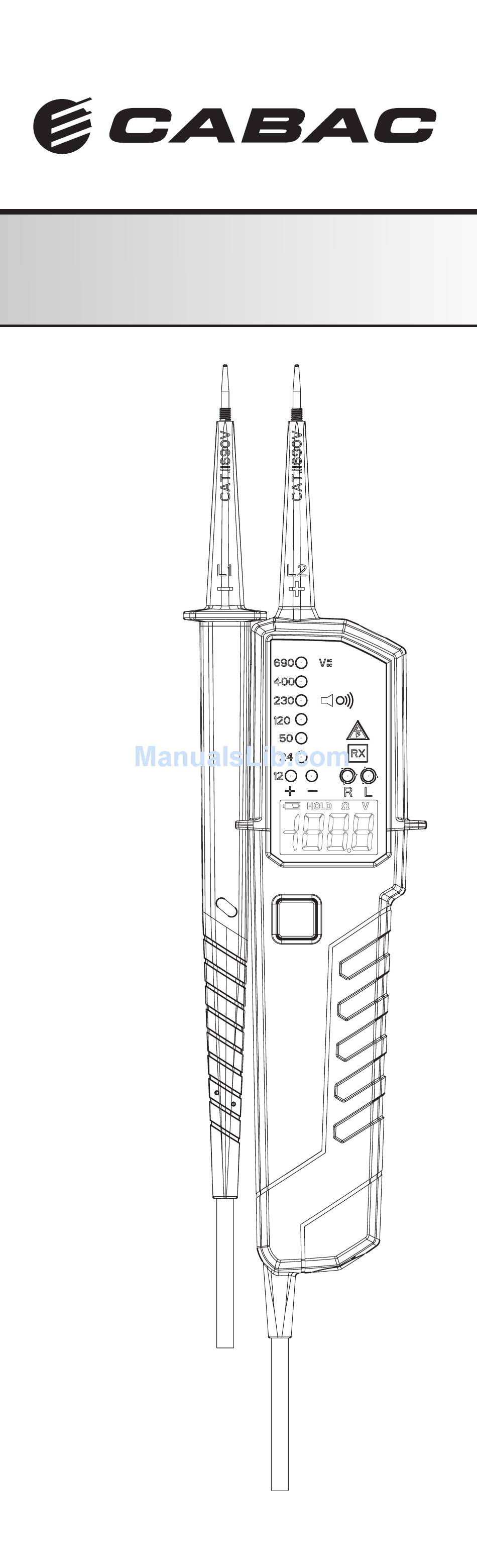

  • Page 1 Voltage Tester 3031 Manual Manual...
  • Page 3: Table Of Contents

    Content Content 1. Introduction / Product Package ......5 2. Safety Measures ...........5 3. Danger of electric shock and other dangers ..5 4. Intended Use ............6 5. Tester Information ..........7 6. Preparation for tests ..........8 6.1 Auto-power-on/ switching on .....8 6.2 Auto-power off ...........8 7.
  • Page 4 1. Introduction / Product Package The voltage tester 3031 is universally applicable testers for voltage testing, continuity testing and rotary field tes- ting. The testers are constructed according to the latest safety regulations and guarantee safe and reliable working.
  • Page 5: Introduction / Product Package

    Introduction / Product Package After unpacking, check that the instrument is undam- aged. The product package comprises: 1 pc Tester 3031 2 pcs 4mm test tip adapters 2 pcs CAT III/ 1000V test tip cover 2 pcs batteries 1.5V, IEC LR03 1 pc operating instructions 2.
  • Page 6: Intended Use

    Danger of electric shock & other dangers A perfect display is guaranteed only within a tem- perature range of -15°C to +55°C at an relative air humidity less than 85%. If the safety of the user cannot be guaranteed, the tester must be switched off and secured against unintentional use.
  • Page 7: Tester Information

    Tester Information 5. Tester Information 1) Test Probe L1 2) Test Tip L2 3) Torch Light 4) Display 5) Torch light button 6) Main Body Accessory 1) 4 mm test Tips 2) Plug on cover (GS38) 3) Protective cover Control elemets 1) Buzzer hole for acoustic indication 2) Singel Pole Test ELV Warning 3) Continuity Test...
  • Page 8: Preparation For Tests

    7. Conducting Tests 7.1 Voltage test • Connect both probes to the object under test. • The voltage is indicated by LEDs and LCD (3031 only) • Buzzer sounds when a threshold voltage of approx. 38VAC or approx. 100 VDC is exceeded.
  • Page 9: Continuity Test

    Battery Replacement • L LED lights up for Left rotary field. • Measurement principle: The instrument detects the pha- se rising order regarding the user as earth. Function of this test may not be fully achieved if the insulation condition/ grounding conditions of user or of the equipment under test is not good enough.
  • Page 10: Technical Data

    Battery Replacement 9. Technical data Voltage range: 12…690V AC (16…400Hz), DC(±) LED Nominal voltage: 12/24/50/120/230/400/690V, AC (16…400Hz), DC(±) LED tolerances according to EN61243-3 ELV indication LED: >50VAC, >120VDC Response time: < 1s at 100% of each nominal voltage LCD Range: 0…690V, AC (16…400Hz), DC(±) LCD Resolution:...
  • Page 11: Cleaning And Storage

    Cleaning and storage 10. Cleaning and storage Tester does not need any special maintenance if used according to user manual. Remove tester from all test points before cleaning. Use a lightly damp cloth with neutral detergent for cleaning the instrument. Do not use abrasives or solvents.
